LT 2044 (2690714) - Snapper 44" Lawn Tractor, 20hp Steering Group Parts Diagram

44" Lawn Tractor, 20hp

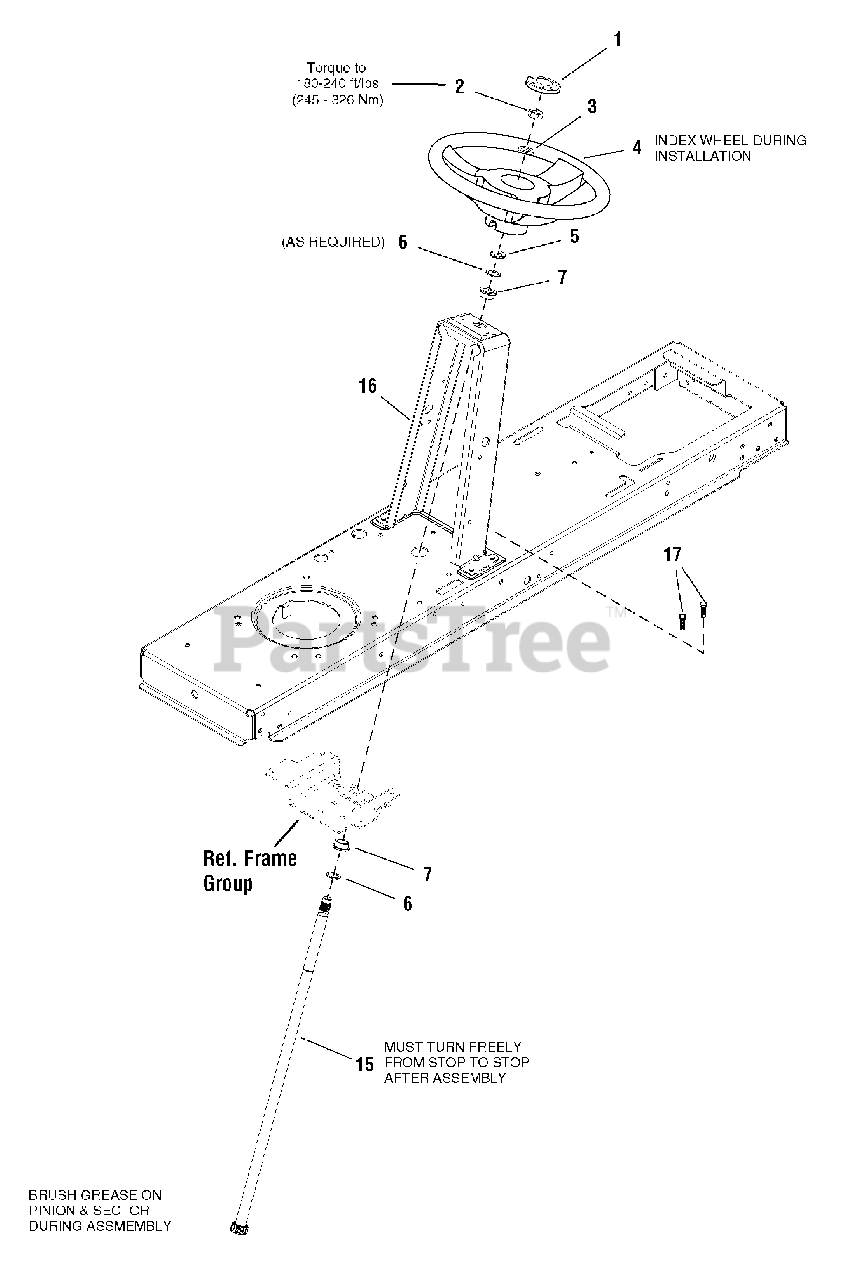

Steering Group Parts Diagram

  • Title
1

Snapper 1725024

CAP, Steering Wheel, Plain
(Superseded to 1725024SM)

$7.49

$

In Stock, only 1 left!

0

2

Snapper 1960576

NUT, Hex Lock, ESNA Light, 5/8-18, Thin
(Superseded to 1960576SM)

$5.99

$

In Stock, Qty 9

0

3

Snapper 1924366

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 1728069

STEERING WHEEL, w/Aluminum Insert
(Superseded to 1728069SM)

$74.99

$

Usually ships in 2-12 days

0

5

Snapper 1611710

RING, Klipring Extension
(Superseded to 1611710SM)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 1960114

WASHER
(Superseded to 80003650)

$3.49

$

In Stock, Qty 20+

0

7

Snapper 1729665

BUSHING, Steering
(Superseded to 1729665SM)

$5.99

$

In Stock, Qty 16

0

15

Snapper 1727813

SHAFT, Steering Gear & Spline Yellow
(Superseded to 1727813SM)

$76.99

$

In Stock, Qty 20+

0

16

Snapper 1738935A

TOWER
(Superseded to 1738935AYP)

Note: (Was 1727260A)

$51.99

$

Usually ships in 2-12 days

0

17

Snapper 1930601

CAPSCREW, Hex Washer Head, Taptite, 5/6-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0
