LT 2042 (2691143-00) - Snapper 42" Lawn Tractor, 20hp Wheels & Tires Group Parts Diagram

42" Lawn Tractor, 20hp

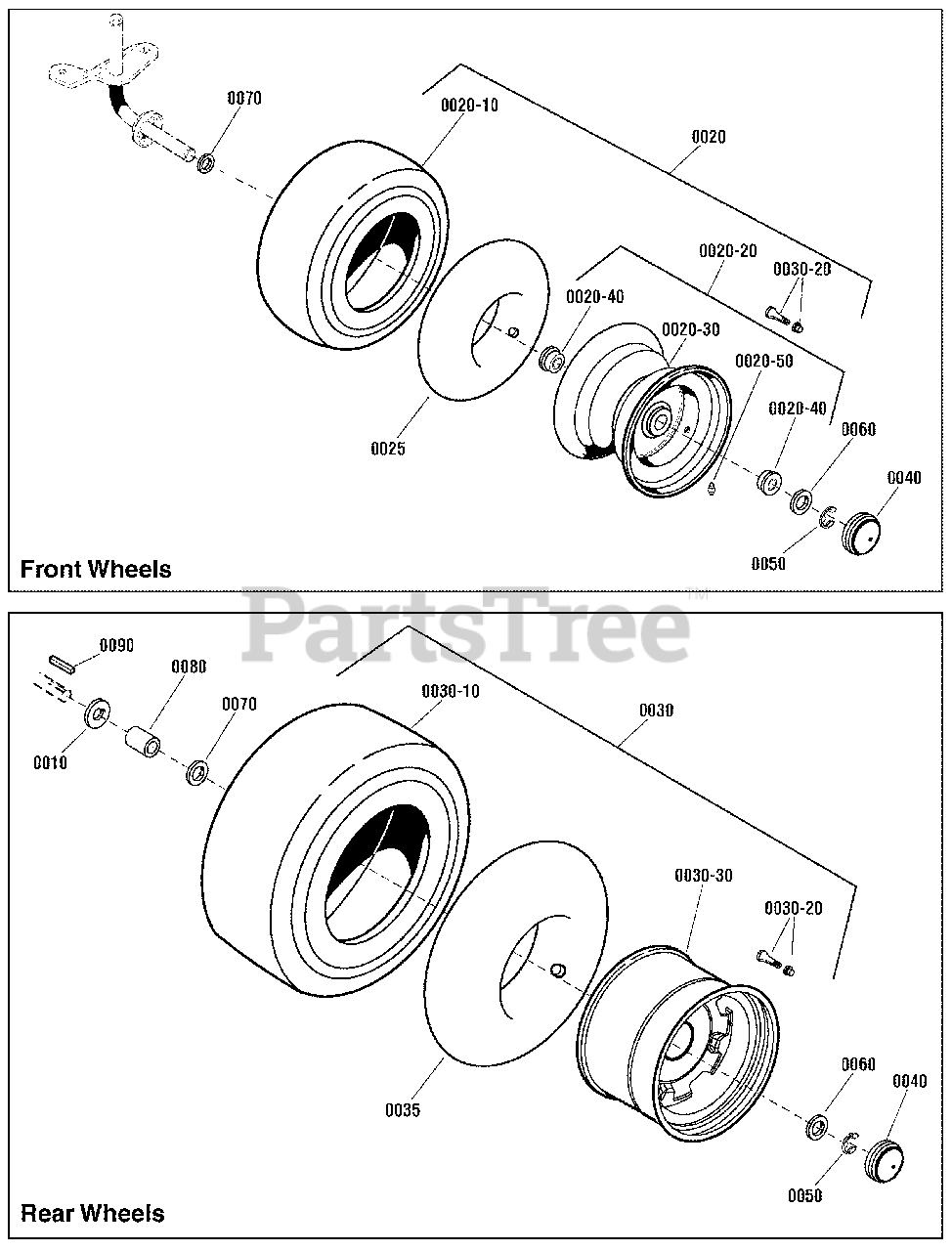

Wheels & Tires Group Parts Diagram

  • Title

0010

Snapper 2860202SM

WASHER, 3/4

$4.49

$

In Stock, Qty 20+

0

0020

Snapper 1754160YP

WHEEL & TIRE ASSEMBLY, Front, 15 x 6-6

Note: (Includes Ref. Nos. 0020-10, 0020-20, 0020-30, 0020-40 & 0020-50)

$182.99

$

Usually ships in 2-12 days

0

0020-10

Snapper 1733882SM

TIRE, 15 x 6-6, Front

$104.99

$

In Stock, only 1 left!

0

0020-20

Snapper 1726301SM

WHEEL & BUSHING ASSEMBLY

$82.99

$

In Stock, only 1 left!

0

0020-30

WHEEL, Rim

Note: (Not a serviceable part, order Ref. 0020-20)

$

$

Not available

0020-40

Snapper 1713167SM

BEARING
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

0020-50

Snapper 2812808SM

FITTING, Grease

$4.49

$

In Stock, Qty 20+

0

0025

Snapper 1664090SM

TUBE, Tire, Front

$26.99

$

In Stock, only 3 left!

0

0030

Snapper 1754162YP

WHEEL & TIRE ASSEMBLY, Rear, 22 x 9.5-12

Note: (Includes Ref. Nos. 0020-20, 0030-10, 0030-20 & 0030-30)

$324.99

$

Usually ships in 2-12 days

0

0030-10

Snapper 1754163YP

TIRE, K500, 2 Ply, 22 x 9.5-12

$219.99

$

Usually ships in 2-12 days

0

0030-20

Snapper 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0030-30

WHEEL, Rim

Note: (Not a serviceable part, order Ref. 0030)

$

$

Not available

0035

Snapper 2173477SM

TUBE, Tire, Rear

$85.99

$

Usually ships in 2-12 days

0

0040

Snapper 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

0050

Snapper 0011X3MA

E-RING

$5.49

$

In Stock, Qty 17

0

0060

Snapper 17X195MA

WASHER, Flat

$4.99

$

In Stock, Qty 5

0

0070

Snapper 17X160MA

WASHER, Flat, 3/4

$4.99

$

In Stock, Qty 20+

0

0080

Snapper 1730181SM

SPACER

$9.49

$

In Stock, only 2 left!

0

0090

Snapper 021553MA

KEY, Square, 3/16

$4.99

$

In Stock, only 2 left!

0
