LT 2042 (2691143-00) - Snapper 42" Lawn Tractor, 20hp Lift Group - Electric Parts Diagram

42" Lawn Tractor, 20hp

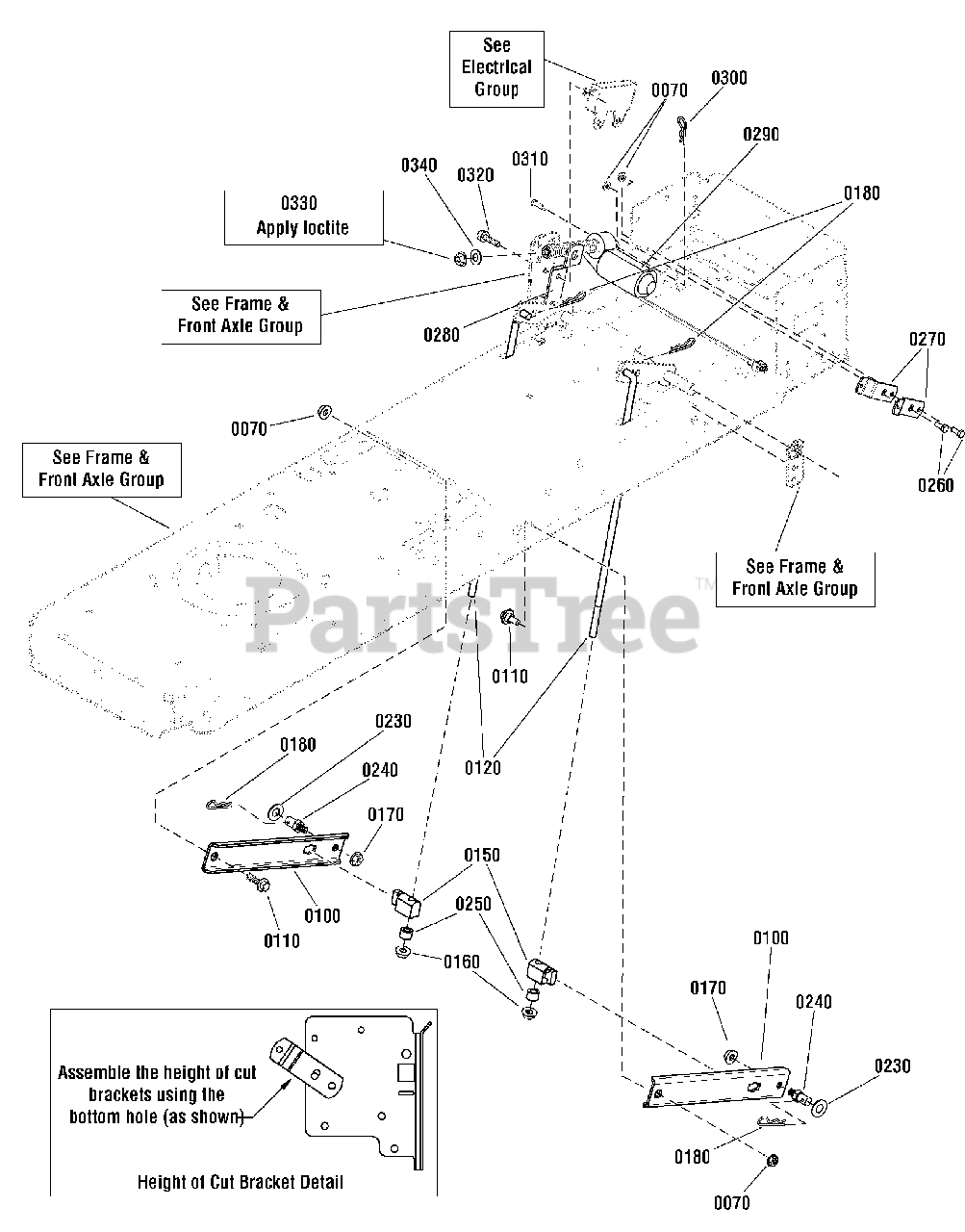

Lift Group - Electric Parts Diagram

  • Title

0070

Snapper 1931277

NUT,HexFlange,WhizLock,5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0100

Snapper 1731417A

ARM,RearLift
(Superseded to 1731417BMYP)

$14.99

$

Usually ships in 2-12 days

0

0110

Snapper 1732426

BOLT,Shoulder,5/16-18x9/16
(Superseded to 1732426SM)

$4.49

$

In Stock, only 1 left!

0

0120

Snapper 1727955

ROD,Lift,Lower,3/8x10Long
(Superseded to 1727955SM)

$18.99

$

In Stock, Qty 7

0

0150

Snapper 1731894

TRUNNION
(Superseded to 1731894SM)

$9.99

$

In Stock, only 3 left!

0

0160

Snapper 1960687

NUT,HexFlange,ESNA,3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0170

Snapper 1931211

NUT,HexFlange,WhizLock,3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0180

Snapper 1960074

CLIP,HairPin,1-5/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0230

Snapper 1960170

WASHER,1/2x1OD
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

0240

Snapper 721221

PIN,Threaded,Shoulder,3/8-16x1-7/16Long
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

0250

Snapper 1666294

SPACER,3/8IDx7/16Long
(Superseded to 1666294SM)

$4.99

$

In Stock, Qty 20+

0

0260

Snapper 1921332

CAPSCREW,HexHead,5/16-18x3/4,G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

0270

Snapper 1737856A

SUPPORT,Electric,Lift
(Superseded to 1737856AYP)

$7.49

$

Usually ships in 2-12 days

0

0280

Snapper 1737859A

SUPPORT,Electric,Lift
(Superseded to 1737859AYP)

$10.99

$

Usually ships in 2-12 days

0

0290

Snapper 1738294

MOTOR,Electric,MiniEHOC,Peerless
(Superseded to 1753528YP)

$

$

Not available

0300

Snapper 1722460

PIN,Quick,1-3/16Long
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0310

Snapper 1668344

PIN,Shear,1/4ID.X1-3/4Long
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

0320

Snapper 1960373

CAPSCREW,HexWasherHead,Taptite,5/16-18x1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0330

Snapper 1960757

NUT,Hex,1/4-20L.H.Thread
(Superseded to 1960757SM)

$5.49

$

Usually ships in 2-12 days

0

0340

Snapper 1921319

WASHER,1/4,x5/8OD
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0
