LT 2042 (2691143-00) - Snapper 42" Lawn Tractor, 20hp Engine Group - 20HP Parts Diagram

42" Lawn Tractor, 20hp

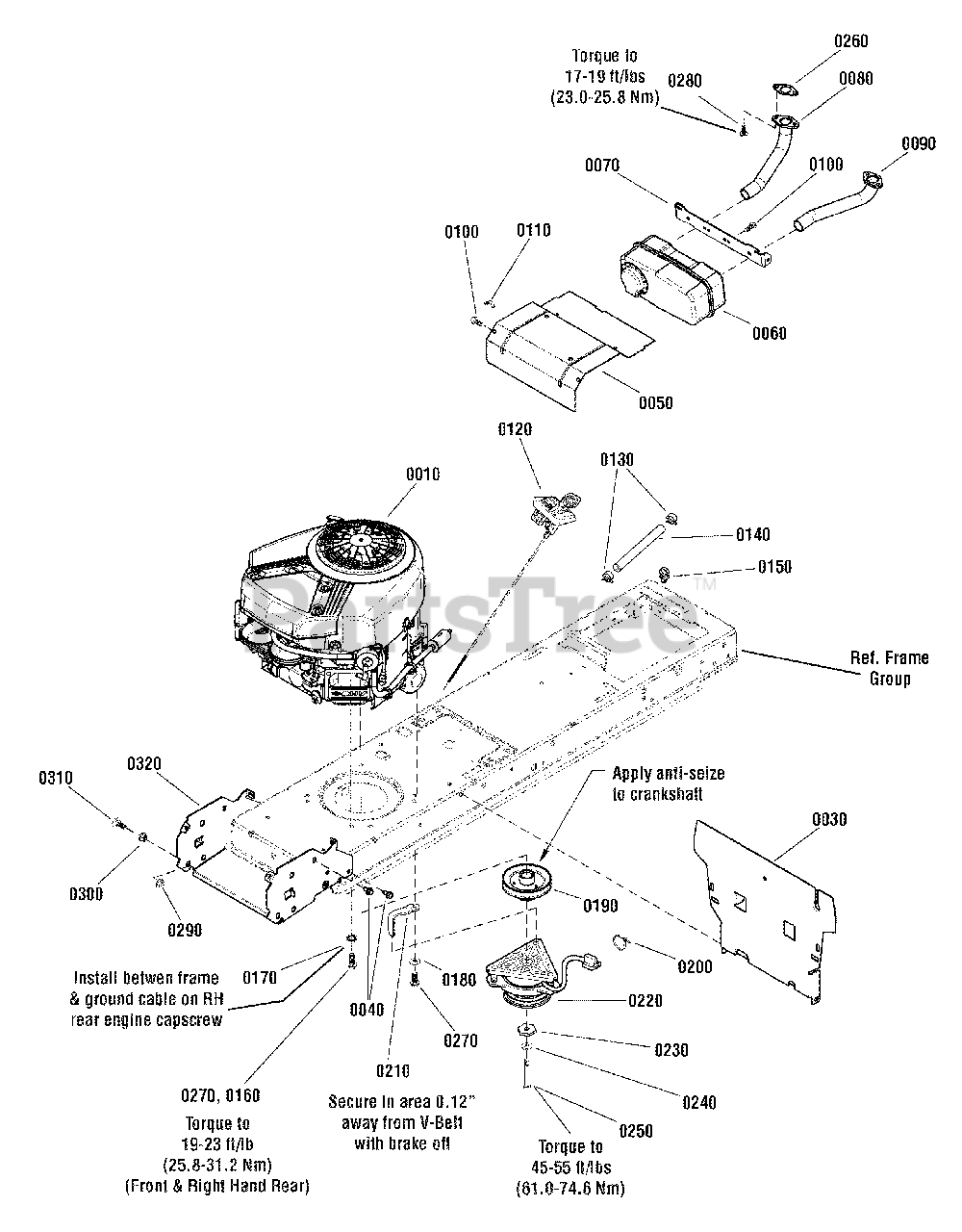

Engine Group - 20HP Parts Diagram

  • Title

0010

Snapper 40G777-0131-G5

* ENGINE, 20HP Briggs & Stratton

Note: (Engine Model: 40G777-0131-G5)

$

$

Not available

0030

Snapper 1728058SM

HEAT SHIELD, Engine
(Superseded to 1728058BMYP)

$19.99

$

Usually ships in 2-12 days

0

0040

Snapper 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0050

Snapper 1727997ASM

HEAT SHIELD, Engine, Twin

$33.99

$

Usually ships in 2-12 days

0

0060

Snapper 1727994SM

MUFFLER, Twin Exhaust

$98.99

$

Usually ships in 2-12 days

0

0070

Snapper 1727976ASM

SUPPORT, Muffler
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

0080

Snapper 1727979SM

PIPE, Exhaust, RH

$37.99

$

In Stock, only 1 left!

0

0090

Snapper 1727980SM

PIPE, Exhaust, LH

$37.99

$

In Stock, only 2 left!

0

0100

Snapper 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, only 1 left!

0

0110

Snapper 2834683SM

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

0120

Snapper 1737747YP

THROTTLE CONTROL

$

$

Not available

0130

Snapper 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

0140

Snapper 1734993SM

HOSE, Fuel
(Superseded to 845503)

$35.99

$

Usually ships in 2-12 days

0

0150

Snapper 1730268SM

CLIP, Hose

$3.99

$

Usually ships in 2-12 days

0

0160

Snapper 2827187SM

SCREW, Hex Washer Head, Taptite 3/8-16 x 1
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

0170

Snapper 2820427SM

WASHER, Lock, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

0180

Snapper 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0190

Snapper 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

In Stock, only 1 left!

0

0200

Snapper 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0210

Snapper 1737421AYP

GUIDE, Belt, Long

$12.99

$

In Stock, Qty 10

0

0220

Snapper 1736105SM

CLUTCH, Electric MID Ogura

$387.99

$

Usually ships in 2-12 days

0

0230

Snapper 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

0240

Snapper 1918199SM

LOCKWSHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

0250

Snapper 1960649SM

CAPSCREW, Hex Head, 7/16-20 x 3-1/2 G5

$7.49

$

In Stock, only 1 left!

0

0260

Snapper 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

0270

Snapper 2828635SM

SCREW, Hex Washer Head, Taptite 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

0280

Snapper 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

0290

Snapper 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0300

Snapper 1728086SM

PIVOT, Hood

$5.99

$

In Stock, Qty 7

0

0310

Snapper 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0320

Snapper 1727982ASM

SUPPORT, Muffler & Hood Pivot

$70.99

$

Usually ships in 2-12 days

0
