LT 2042 (13A-286G710) - Cub Cadet 42" Lawn Tractor Fender And Running Board Parts Diagram

42" Lawn Tractor

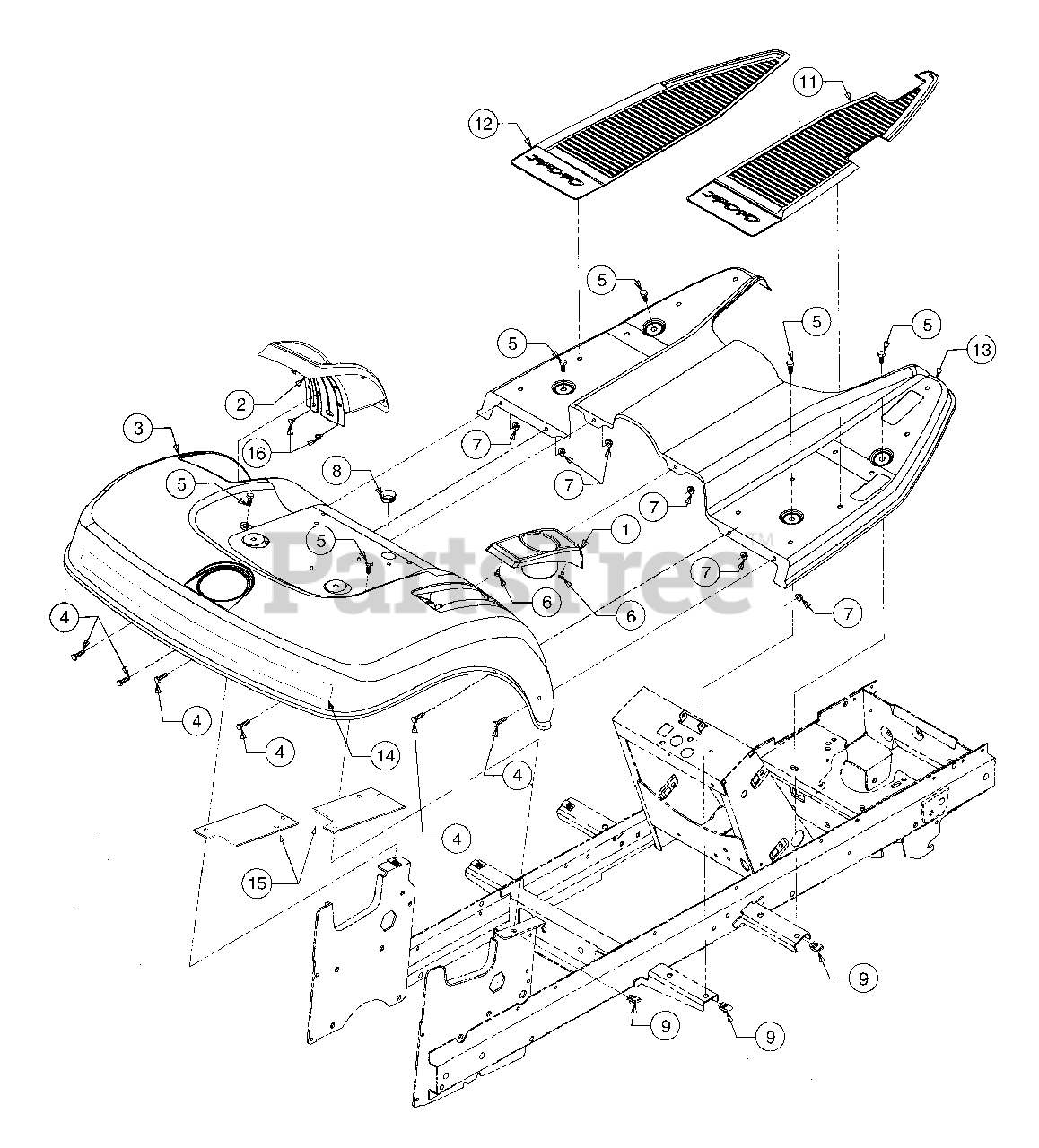

Fender And Running Board Parts Diagram

  • Title
1

Cub Cadet 731-3212A

Cup Holder

$

$

Not available

2

Cub Cadet 631-3002

Cover, Implement Lift

$68.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-05570

Fender
(Superseded to 759-04119)

Variations

Cub Cadet 703-05570-0716

USE 759-04119 FENDER KIT-2000 - CUB YELLOW-99 (0716)

$

$

Not available

$

$

Cub Cadet 777D08642

Graphic, LH Reflector

$

$

Not available

Cub Cadet 777D08643

Graphic, RH Reflector

$

$

Not available

4

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1260A

Screw, Hex Wash Hd Tapp 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1268

Screw, Hex Tapp, #10 x .38 Lg

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 723-3042

Bushing, Snap, 7/8 ID

$4.49

$

In Stock, only 1 left!

0

9

Cub Cadet 726-0211

U-Nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

11

Cub Cadet 735-3046A

Pad, RH Foot

$

$

Not available

12

Cub Cadet 735-3047

Pad, LH Foot

$53.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-2279-0716

Running Board w/Graphic

$

$

Not available

Cub Cadet 777S30170

Graphic, Warning

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 777S32494

Graphic, Danger

$

$

Not available

14

Cub Cadet 777D08233

Graphic, Rear Fender

$

$

Not available

15

Cub Cadet 703-2628

Bracket, Fender Reinforcement

Variations

Cub Cadet 703-2628-0498

Fender Reinforcement Plate - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 703-2628-0716

Fender Reinforcement Plate - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-2628-4015

Fender Reinforcement Plate, Fire Red - FIRE RED (4015)

$

$

Not available

Cub Cadet 703-2628-4021

PLATE-FNDR REINFOR - CUB YELLOW 2 (4021)

$

$

Not available

$

$

16

Cub Cadet 710-0224

Screw, Hex Tapp, #10-16 x .5 Lg.
(Superseded to 910-0224)

$3.99

$

In Stock, Qty 20+

0
