LT 200H48IBV2 (84897) - Snapper 48" Lawn Tractor, 20hp ENGINE COMPONENTS, PT.4 (Model LT200H Models) Parts Diagram

48" Lawn Tractor, 20hp

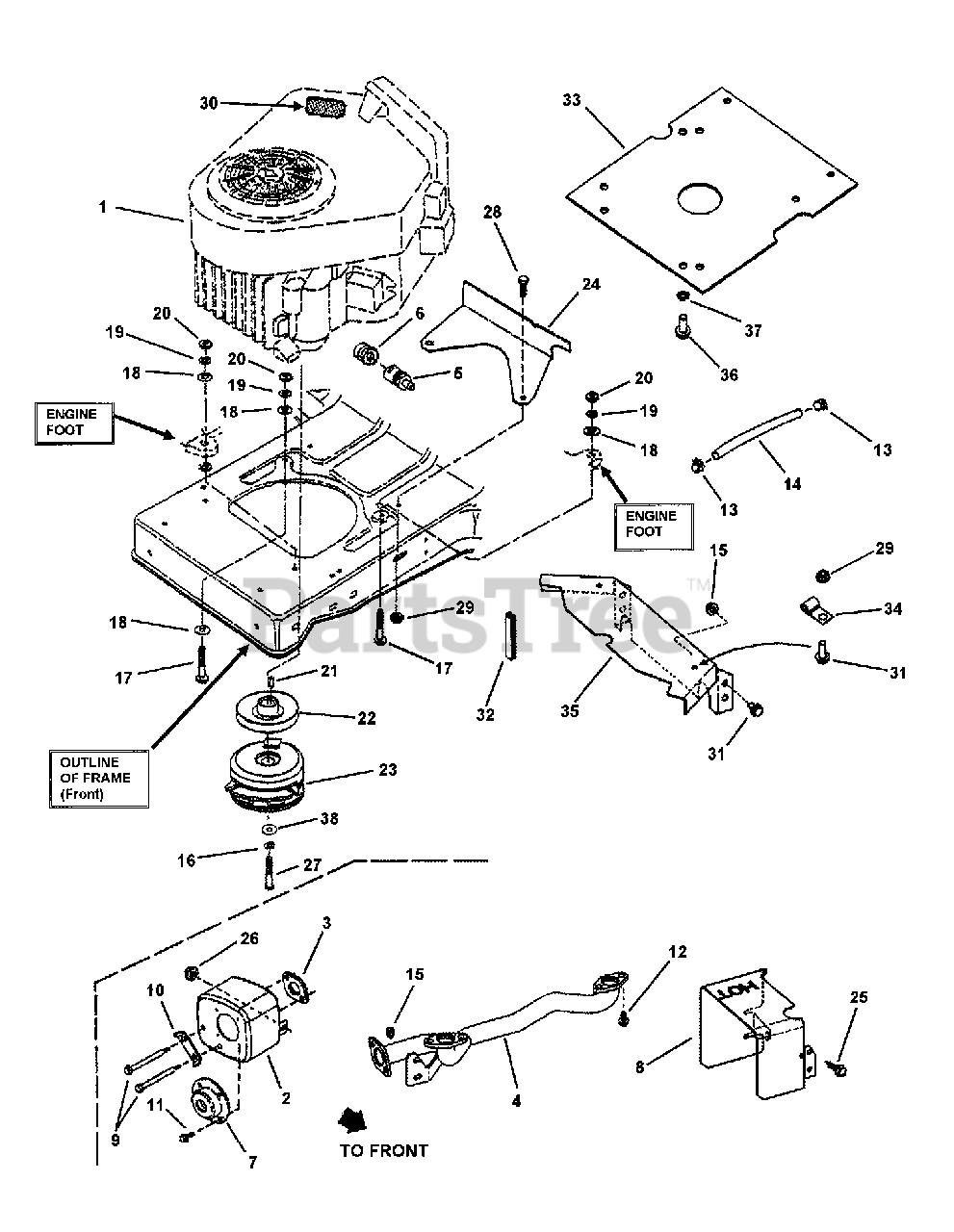

ENGINE COMPONENTS, PT.4 (Model LT200H Models) Parts Diagram

  • Title

1

* ENGINE, B&S 20 HP Intec, Mod 40G777-0112-E1

Note: used on LT200H42IBV2, LT200H48IBV2 & WLT200H48IBV2 Models

$

$

Not available

2

Snapper 7024241

MUFFLER, 16HP B&S

$

$

Not available

3

Snapper 7014509

GASKET, Muffler/Exhaust
(Superseded to 7014509YP)

Note: (1.18" I.D.; 1.88" hole centers)

$7.49

$

Usually ships in 2-12 days

0

3

Snapper 7063283

GASKET, Muffler/Exhaust, 20 HP Intec
(Superseded to 7015352SM)

Note: (1.00" I.D.; 1.968" hole centers)

$5.49

$

In Stock, Qty 8

0

4

Snapper 7042558

WELDMENT, Manifold 16HP
(Superseded to 7042558YP)

$296.99

$

Usually ships in 2-12 days

0

5

Snapper 7027972

ASSEMBLY, Oil Valve
(Superseded to 7027972SM)

$24.99

$

In Stock, Qty 9

0

6

Snapper 7022486

EXTENSION, Oil Drain
(Superseded to 7022486YP)

$22.99

$

Usually ships in 2-12 days

0

7

Snapper 7026778

DEFLECTOR, Exhaust (Direct Out)
(Superseded to 7026778YP)

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7075088

SHIELD, Muffler/Heat
(Superseded to 7075088YP)

$44.99

$

Usually ships in 2-12 days

0

9

Snapper 7024161

SHOULDER BOLT, 5/16-18 thread x 4"
(Superseded to 691416)

$11.99

$

In Stock, Qty 14

0

10

Snapper 7024566

SCREW LOCK
(Superseded to 691178)

$5.49

$

In Stock, Qty 9

0

11

Snapper 7091581

SCREW, #8-18 x 1/2" Hex Head Sheet Metal
(Superseded to 7091581YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

13

Snapper 7029900

CLAMP, .490 x .31
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7032956

FUEL LINE, 10" long
(Superseded to 7032956YP)

$

$

Not available

14

Snapper 7035853

FUEL LINE, 3-3/4" long
(Superseded to 7035853YP)

$3.99

$

In Stock, only 2 left!

0

15

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

16

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7090669

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7090669YP)

Note: or 91264

$4.49

$

In Stock, only 1 left!

0

18

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 3 left!

0

19

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7091511

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7091033

KEY, 1/4 Square x 1-3/4"

$

$

Not available

22

Snapper 7075034

PULLEY, Traction Drive 42&48 TT K46
(Superseded to 7075034YP)

$63.99

$

Usually ships in 2-12 days

0

23

Snapper 7075085

ELECTRIC CLUTCH, Ogura MA-GT-DX11CU
(Superseded to 5023100SM)

$535.99

$

Usually ships in 2-12 days

0

24

Snapper 7034762

SHIELD, Muffler/Heat, B&S 16HP

$

$

Not available

25

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, GR 5
(Superseded to 001X38MA)

Note: Was 27172

$4.49

$

In Stock, Qty 18

0

26

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

27

Snapper 7091703

SCREW, 7/16-20 x 2-1/2" (Special), GR 5
(Superseded to 7091703SM)

$7.99

$

Usually ships in 2-12 days

0

28

Snapper 7090209

SCREW, 5/16-18 x 1" Hex Head Cap, GR 2
(Superseded to 7090209YP)

$2.99

$

Usually ships in 2-12 days

0

29

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

30

Snapper 7073231

DECAL, Warning-Speed Setting 14, 16, & 18 HP ENGINES

$

$

Not available

31

Snapper 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

32

Snapper 7026746

TRIM, Heat Shield (2" long)
(Superseded to 7026746YP)

$3.99

$

Usually ships in 2-12 days

0

32

Snapper 7075171

TRIM-Heat Shield (3" long)

$

$

Currently unavailable

33

Snapper 7075070

PLATE, Engine- Briggs Engine
(Superseded to 7075070YP)

$34.99

$

Usually ships in 2-12 days

0

34

Snapper 7026482

CLIP, "J" Open Type .4 Bundle Dia., .281 Dia. Hole
(Superseded to 7026482YP)

$3.49

$

In Stock, only 1 left!

0

35

Snapper 7075120

HEAT SHIELD, B&S V-Twin Engine

$

$

Not available

36

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

37

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

38

Snapper 7029138

WASHER, 7/16" I.D. x 1-1/2" O.D. x .188 thick
(Superseded to 704053)

$9.99

$

In Stock, only 1 left!

0
