LT 200H48IBV2 (84897) - Snapper 48" Lawn Tractor, 20hp 48" CUTTING DECK ASSEMBLY (Series "I") PT.2 Parts Diagram

48" Lawn Tractor, 20hp

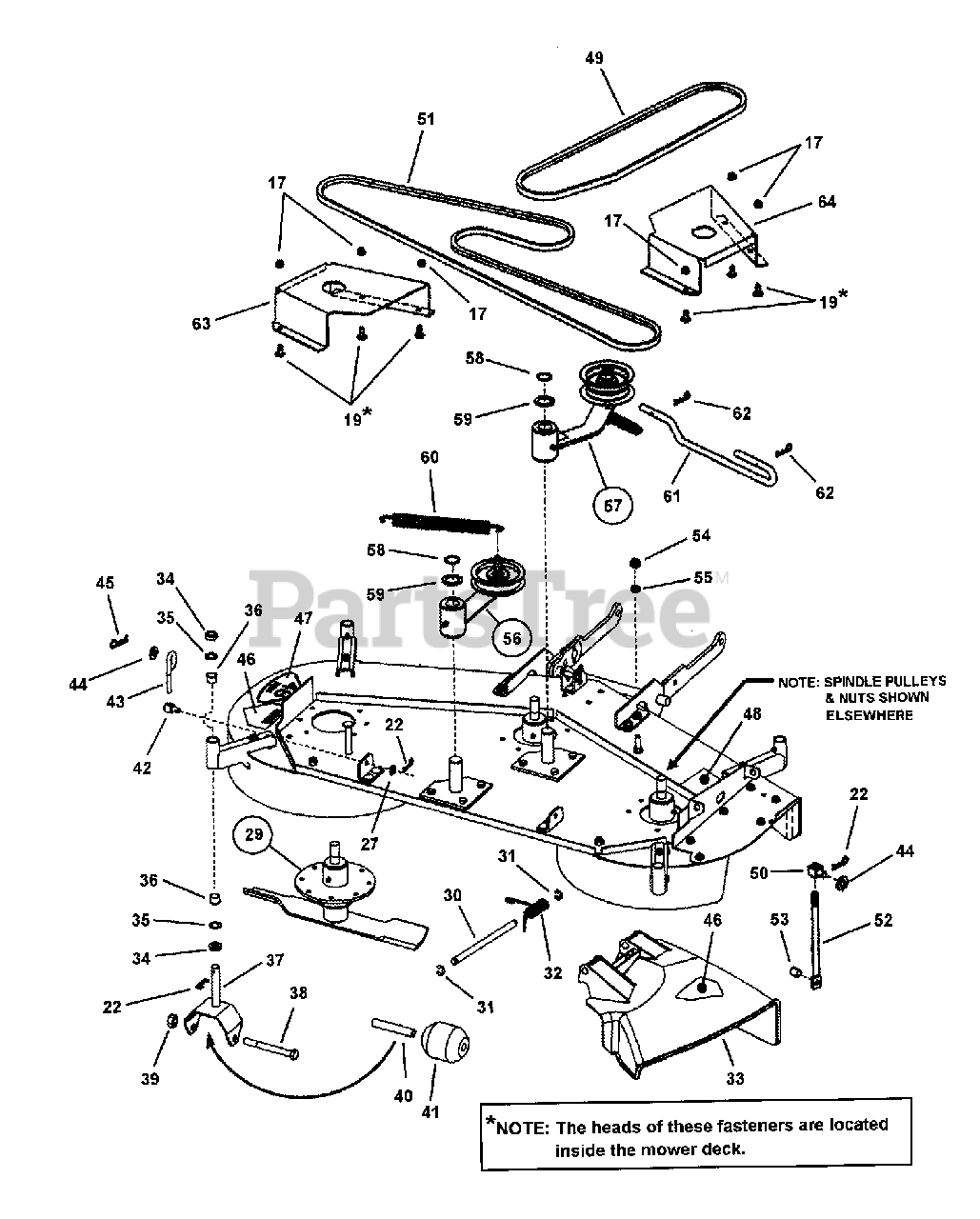

48" CUTTING DECK ASSEMBLY (Series "I") PT.2 Parts Diagram

  • Title

17

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, GR5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 7091503

HAIR PIN, 3/32 x 1.5"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

27

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7054376

ASSEMBLY, 48" Spindle
(Superseded to 7054376YP)

$336.99

$

Usually ships in 2-12 days

0

30

Snapper 7072044

PIN, Chute Hinge
(Superseded to 7072044YP)

$29.99

$

In Stock, only 1 left!

0

31

Snapper 7014341

RING, Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

32

Snapper 7035813

SPRING, Chute
(Superseded to 7035813SM)

$24.99

$

In Stock, only 1 left!

0

33

Snapper 7029425

CHUTE, Side Discharge
(Superseded to 7104733YP)

$87.99

$

In Stock, Qty 19

0

34

Snapper 7076436

SPACER, Blade
(Superseded to 7076436YP)

$7.49

$

In Stock, only 4 left!

0

35

Snapper 7091628

WASHER, .64 x .99 x .05 Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

36

Snapper 7043858

BUSHING, Flange, .64 x .75 x .5
(Superseded to 7043858YP)

$4.49

$

In Stock, Qty 20+

0

37

Snapper 7046302

WELDMENT, Anti-Scalp Wheel
(Superseded to 7046302YP)

$75.99

$

Usually ships in 2-12 days

0

38

Snapper 7090993

SCREW, 1/2-20 x 4-1/2" Hex Head Cap, GR5
(Superseded to 7090993YP)

$5.49

$

In Stock, only 1 left!

0

39

Snapper 7090266

NUT, 1/2-20 Hex Center Lock, GR5 or B
(Superseded to 7090266YP)

$4.49

$

Usually ships in 2-12 days

0

40

Snapper 7046301

SLEEVE, Wheel Caster
(Superseded to 7046301YP)

$14.99

$

In Stock, Qty 5

0

41

Snapper 7073142

ROLLER, Low Density Polyethylene
(Superseded to 7073142YP)

Note: Was 79226

$16.99

$

In Stock, Qty 7

0

42

Snapper 7041874

SWIVEL, 3/8-16 thread, .109 Hole
(Superseded to 7041874YP)

$28.99

$

In Stock, only 1 left!

0

43

Snapper 7046790

ROD, Rear Lift- 48" Deck
(Superseded to 7046790YP)

$27.99

$

Usually ships in 2-12 days

0

44

Snapper 7091587

WASHER, .531 x 1.062 x .121 Flat SAE
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

45

Snapper 7091594

COTTER PIN, 1/2" Self Lock
(Superseded to 7091594SM)

$2.99

$

In Stock, only 2 left!

0

46

Snapper 7013010

DECAL, Danger, Cut Finger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

47

Snapper 7024431

DECAL, 48" Deck
(Superseded to 7024431YP)

$11.99

$

Usually ships in 2-12 days

0

48

Snapper 7046720

DECAL, Chute/Deflector
(Superseded to 7046720SM)

$7.49

$

Usually ships in 2-12 days

0

49

Snapper 7075121

BELT, HB Sect. 52.165" effective length- 48" Deck Drive
(Superseded to 7075121YP)

Note: used on electric clutch

$40.99

$

Usually ships in 2-12 days

0

50

Snapper 7026827

SWIVEL, Lift, 1/2-13 thread
(Superseded to 7026827YP)

$20.99

$

Usually ships in 2-12 days

0

51

Snapper 7028334

BELT, HA Sect., 94.50" effective length (TTK50 Traction Drive)
(Superseded to 7028334SM)

$64.99

$

Usually ships in 2-12 days

0

52

Snapper 7046873

ROD, Front Lift- 48" Deck

$

$

Not available

53

Snapper 7023478

SPACER

$

$

Not available

54

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR5 or B
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

55

Snapper 7024180

SPACER, Tie Rod
(Superseded to 7024180YP)

$7.49

$

Usually ships in 2-12 days

0

56

Snapper 7057923

ASSEMBLY, Deck Idler

Note: see 48" Deck Idler Page

$

$

Currently unavailable

57

Snapper 7057950

ASSEMBLY, Drive Idler Arm

Note: see 48" Deck Idler Page

$

$

Currently unavailable

58

Snapper 7012709

RING, 1" External Retaining
(Superseded to 703993)

$3.49

$

In Stock, Qty 13

0

59

Snapper 7023747

BUSHING, 1" Machine
(Superseded to 7023747YP)

$5.49

$

In Stock, Qty 20+

0

60

Snapper 7029272

SPRING, Extension- Primary Idler
(Superseded to 7029272SM)

$14.99

$

In Stock, only 1 left!

0

61

Snapper 7027471

PIN, Deck Hanger Improved

$

$

Not available

62

Snapper 7091596

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091596YP)

$4.49

$

Usually ships in 2-12 days

0

63

Snapper 7044803

COVER, Spindle- Left Hand

$

$

Not available

64

Snapper 7044804

COVER, Spindle- Right Hand

$

$

Not available
