LT-2000 (13AX78TS090) - White Outdoor 42" Lawn Tractor (2010) Hood & Dash Assembly Parts Diagram

42" Lawn Tractor

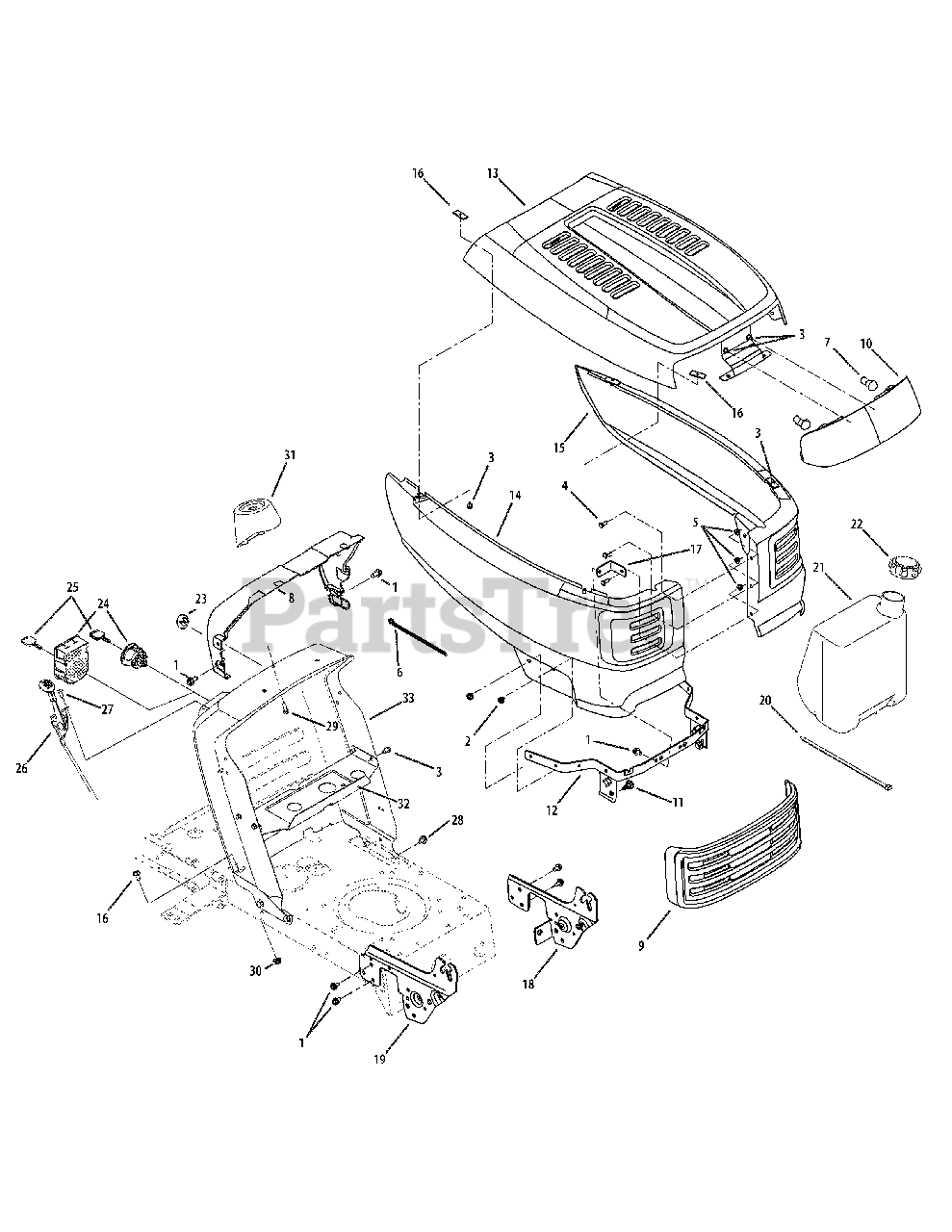

Hood & Dash Assembly Parts Diagram

  • Title

1

White Outdoor 710-04484

Screw, tt, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 710-04593

Screw, tt, 5/16-18, 0.375

$4.49

$

In Stock, only 3 left!

0

3

White Outdoor 710-0599

Screw, tt, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0751

Hex Screw, 1/4-20, .620

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 725-0157

Cable tie, 3/16 X .05 X 7.4

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 925-0963

Lamp, #1156

$7.49

$

In Stock, only 1 left!

0

8

White Outdoor 731-05078C

Collar, dash, 1/3/5/K/T Sty Lt-5

$18.99

$

In Stock, only 2 left!

0

9

White Outdoor 731-06358

Insert, Grille, T-Style

$25.99

$

Usually ships in 3-6 days

0

10

White Outdoor 731-06414

Lens, T-Style

$

$

Not available

11

White Outdoor 738-04091A

Screw, Shldr, .43x.29, Tt, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 783-04606C-0637

Bracket, pivot, Hood

$48.99

$

In Stock, only 1 left!

0

13

White Outdoor 783-04827-0662

Hood

$198.99

$

Usually ships in 3-6 days

0

14

White Outdoor 783-04828-0662

Side Panel, RH

$101.99

$

Usually ships in 3-6 days

0

15

White Outdoor 783-04967-0662

Side Panel, LH W/O Window

$74.99

$

Usually ships in 3-6 days

0

16

White Outdoor 783-05223

Fastener, hood T-Style

$4.99

$

Usually ships in 3-6 days

0

17

White Outdoor 783-05315-0637

Hood Bracket, Front

$4.99

$

Usually ships in 3-6 days

0

18

White Outdoor 783-05327B-0637

Bracket Support, Pivot LH

$40.99

$

Usually ships in 3-6 days

0

19

White Outdoor 783-05328A-0637

Bracket Support, Pivot RH
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

20

White Outdoor 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

21

White Outdoor 751-0555B

Fuel Tank
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

22

White Outdoor 751-0603A

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

23

White Outdoor 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

24

White Outdoor 925-04659

Key Switch

Note: (No RMC) 3 Pos.

$44.99

$

In Stock, Qty 20+

0

24

White Outdoor 925-04227B

Key Switch Module
(Superseded to 925-06119C)

Note: RMC

$116.99

$

In Stock, Qty 20+

0

25

White Outdoor 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

26

White Outdoor 746-04364

Throttle/Choke Cable

$48.99

$

In Stock, only 3 left!

0

27

White Outdoor 710-04483

Screw, 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

28

White Outdoor 710-0604A

Screw, 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 710-0895

Screw, 1/4-15 x 0.750

$6.49

$

Usually ships in 3-6 days

0

30

White Outdoor 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 5

0

31

White Outdoor 731-04945

Steering Support

$18.99

$

In Stock, only 1 left!

0

32

White Outdoor 783-04584A-0637

Gas Tank Support Bracket
(Superseded to 783-04584B-0637)

$19.99

$

Usually ships in 3-6 days

0

33

White Outdoor 783-04873B-0637

Dash

$214.99

$

Usually ships in 3-6 days

0
