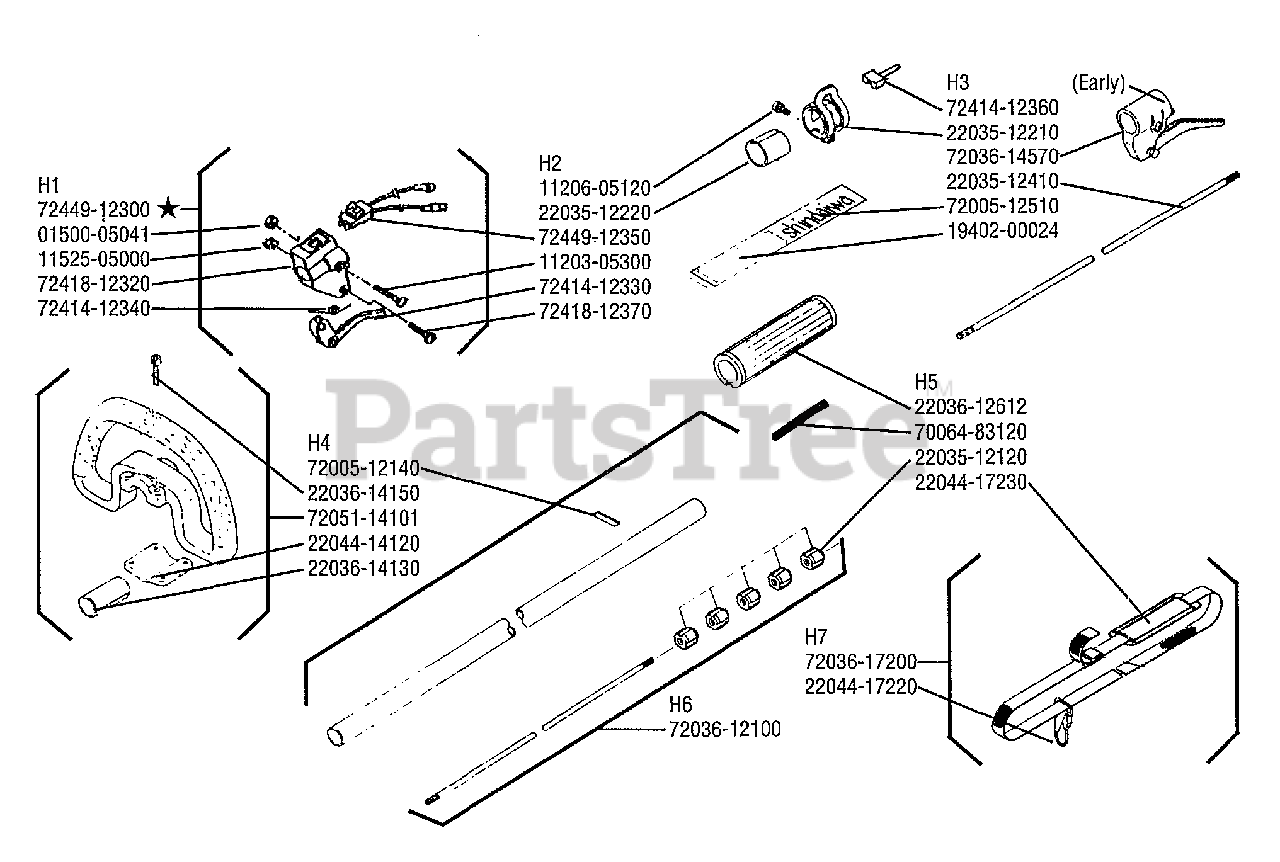

LT 20 - Shindaiwa String Trimmer Handle and Shaft Parts Diagram

String Trimmer

Handle and Shaft Parts Diagram

  • Title
H1-72449-12300

Echo 72449-12300

THROTTLE LEVER
(Superseded to Discontinued)

$

$

Not available

H1-01500-05041

$0.99

$

In Stock, Qty 20+

0

H1-11525-05000

$1.49

$

In Stock, only 1 left!

0

H1-72418-12320

Echo 72418-12320

BODY, USE 72418-12300
(Superseded to 72418-12300)

$

$

Not available

H1-72414-12340

Echo 72414-12340

SPRING, RETURN
(Superseded to Discontinued)

$

$

Not available

H4-72005-12140

Echo 72005-12140

LABEL, CAUTION
(Superseded to X505002860)

$0.99

$

In Stock, Qty 9

0

H4-22036-14150

Echo 22036-14150

BOLT
(Superseded to V203000980)

$0.99

$

Usually ships in 2-4 days

0

H4-72051-14101

Echo 72051-14101

HANDLE ASSY
(Superseded to C040000300)

$18.99

$

Usually ships in 2-4 days

0

H1-22044-14120

Echo 22044-14120

CLAMP A
(Superseded to C423000790)

$5.49

$

Usually ships in 2-4 days

0

H4-22036-14130

Echo 22036-14130

COLLAR
(Superseded to V363000130)

$3.99

$

Usually ships in 2-4 days

0

H2-11206-05120

Echo 11206-05120

SCREW
(Superseded to 9157405012)

$0.99

$

In Stock, Qty 9

0

H2-22035-12220

$3.49

$

Usually ships in 2-4 days

0

H2-72449-12350

Echo 72449-12350

SWITCH ASSY
(Superseded to Discontinued)

$

$

Not available

H2-11203-05300

Echo 11203-05300

SCREW
(Superseded to 9157805030)

$0.99

$

Usually ships in 2-4 days

0

H2-72414-12330

Echo 72414-12330

LEVER
(Superseded to Discontinued)

$

$

Not available

H2-72418-12370

Echo 72418-12370

SCREW
(Superseded to 17811005330)

$0.99

$

In Stock, Qty 6

0

H3-72414-12360

Echo 72414-12360

GUIDE
(Superseded to Discontinued)

$

$

Not available

H3-22035-12210

Echo 22035-12210

SWIVEL HANGER
(Superseded to Discontinued)

$

$

Not available

H3-72036-14570

Echo 72036-14570

THROTTLE LEVER
(Superseded to Discontinued)

$

$

Not available

H3-22035-12410

Echo 22035-12410

SHAFT, MAIN
(Superseded to C504000540)

$21.99

$

Usually ships in 2-4 days

0

H3-72005-12510

Echo 72005-12510

LABEL, NAME PLATE
(Superseded to 19420-00028)

$

$

Not available

H3-19402-00024

Echo 19402-00024

LABEL, CAUTION
(Superseded to X505003200)

$0.99

$

In Stock, only 1 left!

0

H5-22036-12612

Echo 22036-12612

GRIP
(Superseded to C412000300)

$9.49

$

In Stock, only 1 left!

0

H5-70064-83120

Echo 70064-83120

TUBE, VINYL
(Superseded to V471002620)

$0.99

$

Usually ships in 2-4 days

0

H5-22035-12120

Echo 22035-12120

BUSHING
(Superseded to 22035-12121)

$4.49

$

In Stock, Qty 6

0

H5-22044-17230

Echo 22044-17230

PROTECTOR
(Superseded to 22007-17220)

$3.49

$

Usually ships in 2-4 days

0

H7-72036-17200

Echo 72036-17200

STRAP ASSY
(Superseded to Discontinued)

$

$

Not available

H7-22044-17220

$7.49

$

Usually ships in 2-4 days

0

H6-72036-12100

Echo 72036-12100

OUTER TUBE ASSY
(Superseded to Discontinued)

$

$

Not available
