LT 20 - Shindaiwa String Trimmer Fuel Tanks Parts Diagram

String Trimmer

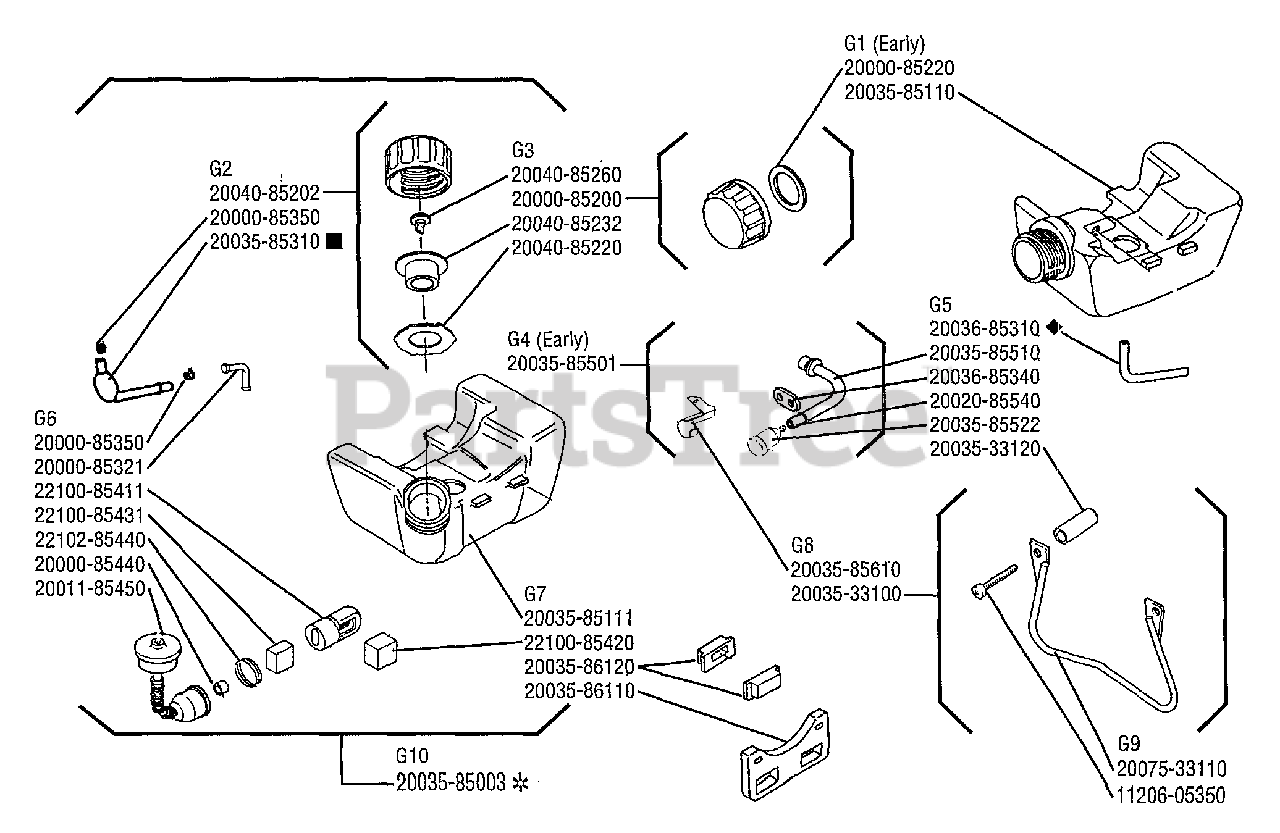

Fuel Tanks Parts Diagram

  • Title
G2-20040-85202

Echo 20040-85202

FUEL CAP ASSY
(Superseded to 20040-85203)

$

$

Not available

G2-20000-85350

Echo 20000-85350

CLAMP B
(Superseded to V490000610)

$0.99

$

In Stock, Qty 12

0

G2-20035-85310

Echo 20035-85310

FUEL TUBE
(Superseded to V470000950)

$

$

Not available

G3-20040-85260

Echo 20040-85260

VALVE
(Superseded to A356000070)

$9.49

$

Usually ships in 2-4 days

0

G3-20000-85200

Echo 20000-85200

FUEL CAP ASSY, USE 20000-85201
(Superseded to 20000-85201)

$3.99

$

In Stock, Qty 12

0

G3-20040-85232

Echo 20040-85232

HOLDER ASSY
(Superseded to A356000100)

$2.49

$

In Stock, only 2 left!

0

G3-20040-85220

Echo 20040-85220

PACKING
(Superseded to V107000040)

$1.49

$

Usually ships in 2-4 days

0

G4-20035-85501

Echo 20035-85501

BREATHER ASSY

$11.99

$

Usually ships in 2-4 days

0

G7-20035-85111

Echo 20035-85111

FUEL TANK CURVED FILL NECK
(Superseded to A350001170)

$

$

Not available

G7-22100-85420

Echo 22100-85420

FILTER A
(Superseded to A368000020)

$1.99

$

In Stock, Qty 8

0

G7-20035-86120

Echo 20035-86120

CUSHION, TANK
(Superseded to V420002540)

$0.99

$

In Stock, Qty 20+

0

G7-20035-86110

$

$

Currently unavailable

G10-20035-85003

Echo 20035-85003

FUEL TANK ASSY TK
(Superseded to 20035-85004)

$

$

Not available

G9-20075-33110

Echo 20075-33110

STAND
(Superseded to A175000100)

$5.49

$

Usually ships in 2-4 days

0

G9-11206-05350

Echo 11206-05350

SCREW
(Superseded to 9157405035)

$0.99

$

In Stock, Qty 9

0

G8-20035-85610

$

$

Currently unavailable

G8-20035-33100

Echo 20035-33100

STAND ASSY
(Superseded to Discontinued)

$

$

Not available

G5-20036-85310

Echo 20036-85310

FUEL TUBE
(Superseded to Discontinued)

$

$

Not available

G5-20035-85510

Echo 20035-85510

BREATHER TUBE
(Superseded to V470000960)

$

$

Not available

G5-20036-85340

Echo 20036-85340

TUBE, HOLDER
(Superseded to Discontinued)

$

$

Not available

G5-20020-85540

Echo 20020-85540

CLIP
(Superseded to V490000500)

$0.99

$

In Stock, Qty 19

0

G5-20035-85522

Echo 20035-85522

BREATHER
(Superseded to A356000040)

$6.99

$

In Stock, Qty 20+

0

G5-20035-33120

Echo 20035-33120

PIPE
(Superseded to V353000370)

$0.99

$

In Stock, Qty 10

0

G6-20000-85350

Echo 20000-85350

CLAMP B
(Superseded to V490000610)

$0.99

$

In Stock, Qty 12

0

G6-20000-85321

Echo 20000-85321

TUBE, CONNECTOR
(Superseded to V186000220)

$1.99

$

In Stock, Qty 12

0

G6-22100-85411

Echo 22100-85411

WEIGHT, FUEL
(Superseded to A369000030)

$3.49

$

In Stock, only 2 left!

0

G6-22100-85431

Echo 22100-85431

FILTER B
(Superseded to A368000030)

$0.99

$

In Stock, Qty 9

0

G6-22102-85440

Echo 22102-85440

CLIP, FILTER
(Superseded to V490000590)

$0.99

$

In Stock, Qty 20+

0

G6-20000-85440

Echo 20000-85440

CHECK VALVE
(Superseded to A356000080)

$7.49

$

In Stock, only 4 left!

0

G6-20011-85450

Echo 20011-85450

SUCTION PIPE
(Superseded to 20011-85451)

$10.99

$

In Stock, Qty 6

0

G1-20000-85220

Echo 20000-85220

GASKET, FUEL
(Superseded to 20000-85221)

$1.99

$

In Stock, Qty 20+

0

G1-20035-85110

Echo 20035-85110

FUEL TANK, STRAIGHT NECK
(Superseded to 20075-85111)

$

$

Not available
