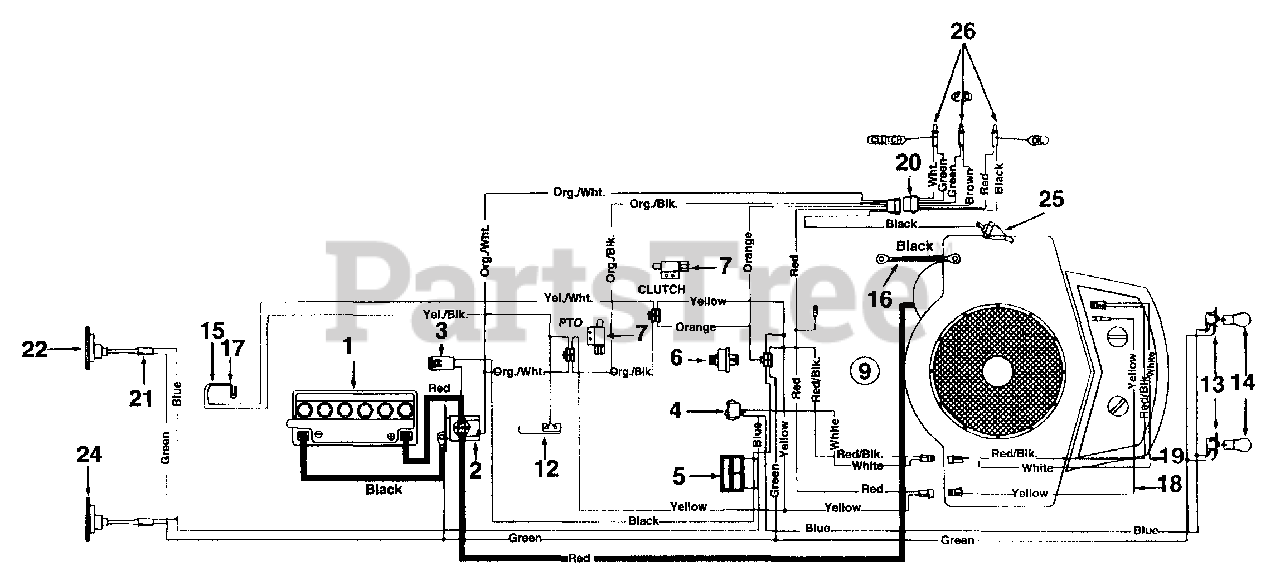

LT-195 (135V696G190) - White Outdoor 42" Lawn Tractor (1995) Electrical System Parts Diagram

42" Lawn Tractor

Electrical System Parts Diagram

  • Title
1

White Outdoor 725-1635

Battery
(Superseded to 753-0608)

$

$

Not available

2

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

3

White Outdoor 725-1625

Fuse 7.5 Amps

$8.49

$

Usually ships in 3-6 days

0

4

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

5

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

6

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

7

White Outdoor 725-1657

Safety Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

9

White Outdoor 629-0204

Wire Harness

$

$

Not available

12

White Outdoor 725-1643

Safety Switch (Reverse)

$10.99

$

In Stock, only 1 left!

0

13

White Outdoor 725-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

14

White Outdoor 725-0963

Bulb (Headlight)
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

15

White Outdoor 725-1303

Safety Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

16

White Outdoor 725-0980

Ground Wire 7.5" Lg.

$

$

Not available

17

White Outdoor 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 10

0

18

White Outdoor 629-0125

Harness Adapter
(Superseded to 929-0125)

$

$

Not available

19

629-0128

Harness Adapter

$

$

Not available

20

White Outdoor 629-0133

Harness Adapter (Monitor)

$

$

Not available

21

White Outdoor 725-1380

Tail light Harness

$

$

Not available

22

725-3018

Tail light

$

$

Not available

?23

White Outdoor 629-0134

Harness Adapter (Tail light)

$

$

Not available

24

White Outdoor 725-3020

Bulb (Tail light)
(Superseded to 925-3020)

$

$

Not available

25

White Outdoor 751-0537

Oil Pressure Switch

$

$

Not available

26

White Outdoor 725-1365

Bulb (Monitor)
(Superseded to 925-1365)

$10.99

$

In Stock, only 1 left!

0
