LT 19 A (954130078) - Jonsered Lawn Tractor (2002-09) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

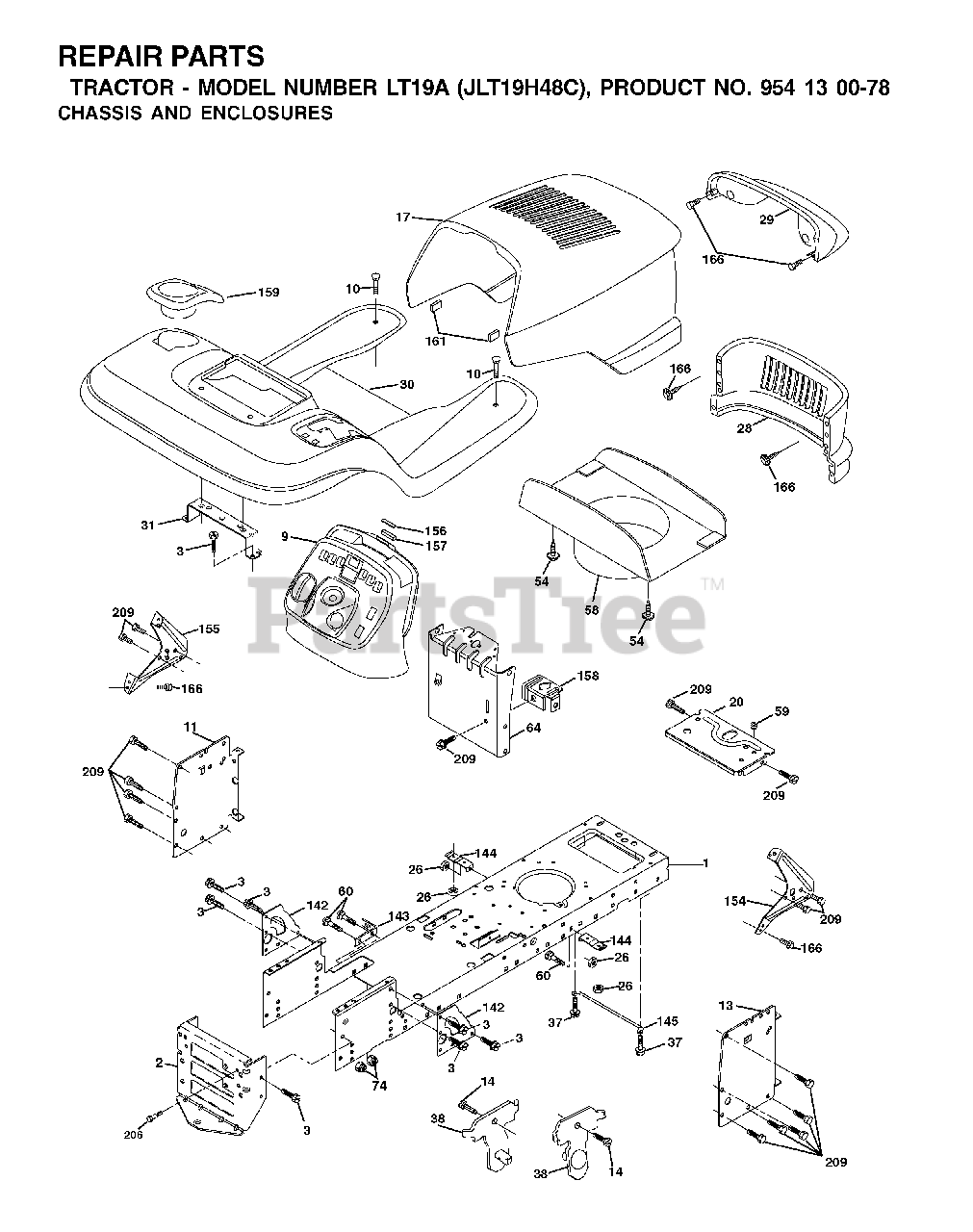

CHASSIS ENCLOSURES Parts Diagram

  • Title
1

Jonsered 532174619

CHASSIS STAMPING
(Superseded to 579841401)

$433.99

$

Usually ships in 3-10 days

0

2

Jonsered 532176554

DRAWBAR, 12GA

$43.99

$

Usually ships in 3-10 days

0

3

Jonsered 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

9

Jonsered 532177144

No Description Available

$

$

Not available

10

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 532167203

No Description Available

$24.99

$

Usually ships in 3-10 days

0

13

Jonsered 532178298

PANEL DASH RH

$

$

Not available

14

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 532181351

No Description Available
(Superseded to 532181273)

$30.99

$

Usually ships in 3-10 days

0

20

Jonsered 532162026

No Description Available
(Superseded to 162026)

$

$

Not available

26

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 532181352

No Description Available

$

$

Not available

29

Jonsered 532179761

No Description Available

$

$

Not available

30

Jonsered 532181353

No Description Available
(Superseded to 532442468)

$157.99

$

Usually ships in 3-10 days

0

31

$17.99

$

Usually ships in 3-10 days

0

37

$6.49

$

Usually ships in 3-10 days

0

38

Jonsered 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$11.99

$

Usually ships in 3-10 days

0

$

$

Not available

58

Jonsered 532175351

DUCT HOOD

$40.99

$

Usually ships in 3-10 days

0

59

Jonsered 532177579

BUSHING 1.375 OD
(Superseded to 532187495)

$6.49

$

In Stock, only 1 left!

0

$

$

Not available

64

Jonsered 532174997

DASH LOWER

$30.99

$

Usually ships in 3-10 days

0

74

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

142

Jonsered 532175702

PLATE REINFORCEMENT

$9.49

$

Usually ships in 3-10 days

0

143

Jonsered 532154966

BRACKET, SWAY BAR
(Superseded to 532186689)

$6.99

$

In Stock, only 2 left!

0

144

Jonsered 532175582

BRKT, FOOT REST

$7.49

$

Usually ships in 3-10 days

0

145

Jonsered 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

154

Jonsered 532161897

No Description Available

$7.49

$

Usually ships in 3-10 days

0

155

Jonsered 532161900

No Description Available

$7.49

$

Usually ships in 3-10 days

0

156

Jonsered 532163805

No Description Available
(Superseded to 163805)

$

$

Not available

157

Jonsered 532163806

No Description Available

$

$

Not available

158

Jonsered 532162037

No Description Available
(Superseded to 162037)

$

$

Not available

159

Jonsered 532181355

No Description Available
(Superseded to 532155123)

$

$

Not available

161

Jonsered 532164655

EXTRUSION BUMPER

$8.99

$

Usually ships in 3-10 days

0

166

Jonsered 532171875

SCREW
(Superseded to 532189747)

$17.99

$

Usually ships in 3-10 days

0

206

Jonsered 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, only 3 left!

0

209

Jonsered 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0
