LT-19 (135V676G190) - White Outdoor 42" Lawn Tractor (1995) Muffler And Heat Shield Parts Diagram

42" Lawn Tractor

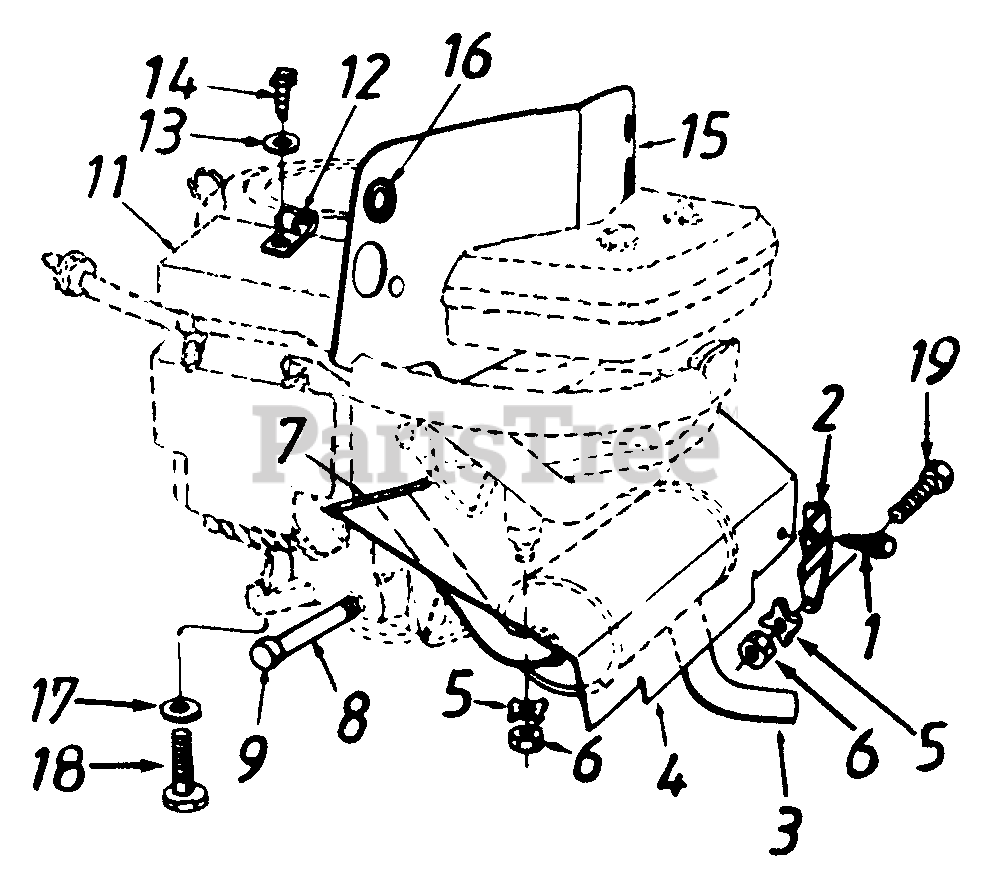

Muffler And Heat Shield Parts Diagram

  • Title

1

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 17450

Muffler Heat Shield Mtg. Brkt. - R.H.

Note: Not shown

$

$

Not available

White Outdoor 17449

Muffler Heat Shield Mtg. Brkt. - L.H.

$

$

Not available

3

White Outdoor 751-0474

Muffler

$

$

Not available

4

White Outdoor 16934

Front Heat Shield

$

$

Not available

5

White Outdoor 736-0170

Spec. L-Wash. 5/16 x .88"

$5.99

$

Usually ships in 3-6 days

0

6

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

7

White Outdoor 731-0511-12

Trim Strip 12" Lg.

$22.99

$

Usually ships in 3-6 days

0

8

White Outdoor 737-0164

Pipe Nipple
(Superseded to 937-0164)

$

$

Not available

9

White Outdoor 737-0143

Oil Drain Cap

$

$

Not available

11

Engine

$

$

Not available

12

White Outdoor 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

13

White Outdoor 736-3067

Fl-Wash. .188" I.D. x .438"

$3.49

$

Usually ships in 3-6 days

0

14

White Outdoor 710-0779A

Truss Mach. AB-Tap Scr.

$4.49

$

In Stock, Qty 12

0

15

White Outdoor 17451B

Heat Shield

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 17451B-0637

No Longer Available SHIELD-HEAT STL 00 - POWDER BLACK (0637)

$

$

Not available

$

$

16

735-0328

Rubber Grommet

$

$

Not available

17

White Outdoor 736-0247

Fl-Wash. .406" I.D. x 1-1/4" O.D.

$9.49

$

In Stock, Qty 12

0

18

White Outdoor 710-0502A

Hex L-Wash. TT-Tap Scr. 3/8-16

$6.99

$

In Stock, only 2 left!

0

19

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0
