LT-1855 H (13AJ616G790) - White Outdoor 42" Lawn Tractor (2004) Engine Accessories Parts Diagram

42" Lawn Tractor

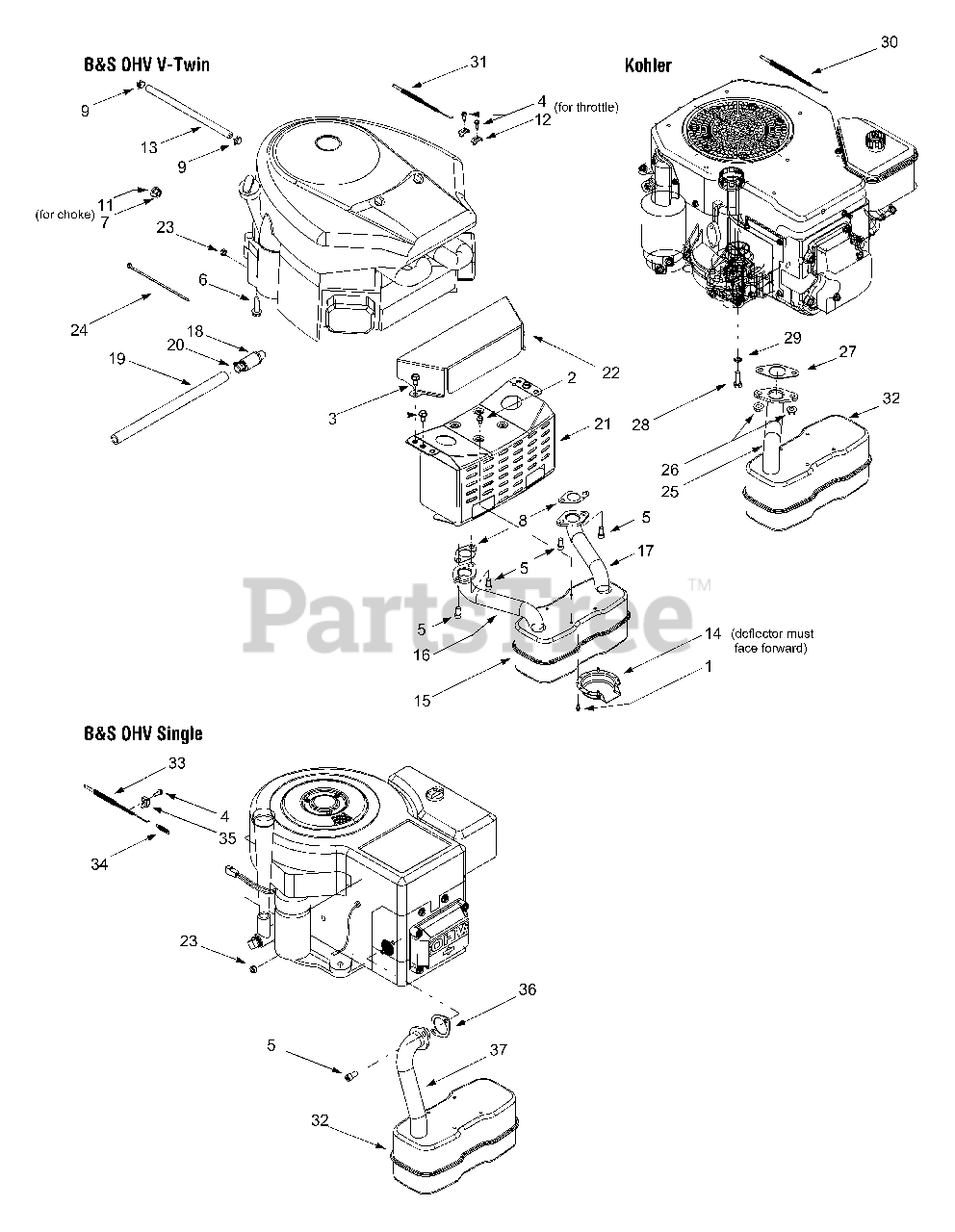

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 710-0227

Self-tapping Screw, #8-18 x.50

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x.50

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0726

Self-tapping Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1237

Screw, #10-32 x.625 (B&S OHV V-Twin)

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 710-1314A

Socket Cap Screw, 5/16-18 x.625

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 721-0460

Exhaust Gasket (B&S OHV V-Twin)
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

9

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 751B213146

Casing Clamp (B&S OHV Single)
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

11

White Outdoor 736-0300

Lock Washer,.406 x.875 x.059

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 751B221535

Casing Clamp (B&S OHV V-Twin)

$10.99

$

In Stock, Qty 10

0

13

751-0535

Fuel Line Hose

$

$

Not available

14

White Outdoor 751-0564A

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

15

White Outdoor 751-0616A

Muffler, Twin Inlet (B&S OHV V-Twin)
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

16

White Outdoor 751-0650A

RH Exhaust Pipe (B&S OHV V-Twin)
(Superseded to 751-0650B)

$63.99

$

In Stock, only 1 left!

0

17

White Outdoor 751-0651A

LH Exhaust Pipe (B&S OHV V-Twin)
(Superseded to 751-0651B)

$60.99

$

In Stock, only 1 left!

0

18

White Outdoor 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

19

White Outdoor 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

20

White Outdoor 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

21

White Outdoor 783-0615C

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

White Outdoor 783-0615C-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

22

White Outdoor 783-0625C

Engine Heat Shield (B&S OHV V-Twin)

$111.99

$

Usually ships in 3-6 days

0

23

White Outdoor 712-0271

Hex Sems Nut, 1/4-20 (B&S OHV V-Twin)

$4.49

$

In Stock, Qty 19

0

24

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 751-0621

Exhaust Pipe (Kohler)
(Superseded to 751-0621A)

$

$

Not available

26

White Outdoor 712-3086

Flange Nut, 8mm (Kohler)

$4.49

$

In Stock, only 2 left!

0

27

White Outdoor 721-0375

Exhaust Gasket (Kohler)
(Superseded to KH-12-041-03)

$

$

Not available

28

White Outdoor 710-3206A

Hex Cap Screw, 8mm (Kohler)

$3.99

$

In Stock, Qty 13

0

29

White Outdoor 736-0607

External Lock Washer (Kohler)

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 746-1087

Throttle Cable (Kohler)
(Superseded to 946-1087)

$35.99

$

In Stock, only 1 left!

0

31

White Outdoor 746-1086

Throttle Cable (B&S OHV V-Twin)
(Superseded to 946-1086)

$33.99

$

In Stock, only 1 left!

0

32

White Outdoor 751-0617A

Muffler, Single Inlet (Kohler)
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

33

White Outdoor 746-1084

Throttle Cable (B&S OHV Single)
(Superseded to 946-1084)

$32.99

$

Usually ships in 3-6 days

0

34

White Outdoor 732-0966

Extension Spring, .275 x 1.25 (B&S OHV Single)

$

$

Not available

35

White Outdoor 751B213146

Casing Clamp (B&S OHV Single)
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

36

White Outdoor 721-0208

Exhaust Gasket (B&S OHV Single)
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

37

White Outdoor 751-0619A

Exhaust Pipe (B&S OHV Single)
(Superseded to 751-0619B)

$76.99

$

In Stock, only 2 left!

0
