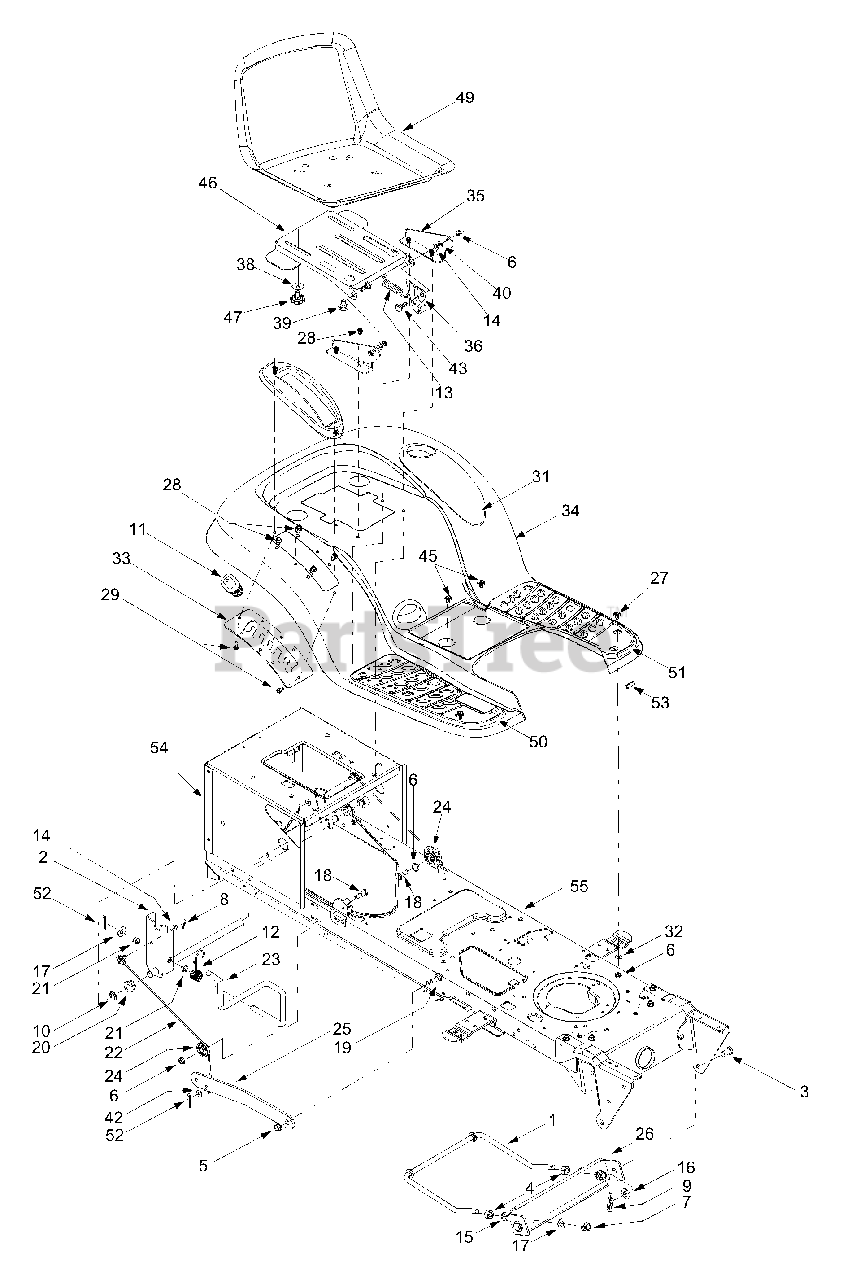

LT-1855 (13AJ606G790) - White Outdoor 42" Lawn Tractor (2004) Fender, Seat, Deck Stabilizer Parts Diagram

42" Lawn Tractor

Fender, Seat, Deck Stabilizer Parts Diagram

  • Title

1

White Outdoor 747-1130B

Deck Stabilizer Rod

$41.99

$

In Stock, only 3 left!

0

2

White Outdoor 683-0197B

Lift Shaft Assembly
(Superseded to 983-0197)

Variations

White Outdoor 683-0197B-0637

SHAFT-LIFT ASSY - POWDER BLACK (0637)

$51.99

$

In Stock, only 1 left!

0

$51.99

$

In Stock, only 1 left!

0

3

White Outdoor 711-0332

Clevis Pin, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 15

0

4

White Outdoor 712-3083

Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 712-0130

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 11

0

6

White Outdoor 712-0429

Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 714-04023

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 716-0106A

E-Ring

$5.49

$

In Stock, only 2 left!

0

11

White Outdoor 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

12

White Outdoor 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

13

White Outdoor 732-1027

Extension Spring, .872 x 3.4

$

$

Not available

14

White Outdoor 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

15

White Outdoor 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 6

0

16

White Outdoor 736-3019

Flat Washer, .31 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

17

White Outdoor 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

18

White Outdoor 738-0138A

Hex Cap Screw, 5/16-18 x .62

$6.99

$

In Stock, only 2 left!

0

19

White Outdoor 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

21

White Outdoor 741-0715

Snap Flange Bearing
(Superseded to 941-0715)

$

$

Not available

22

White Outdoor 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

23

White Outdoor 747-1111A

Lift Handle

$

$

Not available

24

White Outdoor 756-1154

Roller Pulley

$7.99

$

In Stock, only 2 left!

0

25

White Outdoor 783-0678A

Arm Lift
(Superseded to 783-0678C)

Variations

White Outdoor 783-0678A-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

White Outdoor 783-0678A-4008

LINK-LIFT DECK - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

26

White Outdoor 783-0720A

Deck Stabilizer Bracket
(Superseded to 783-0720C)

Variations

White Outdoor 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

White Outdoor 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

27

White Outdoor 710-0260A

Carriage Bolt, 5/16 x .62

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 710-0604A

Self-Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 710-0895

Self-Tapping Screw, 1/4-15 x .75

$6.49

$

In Stock, only 4 left!

0

30

White Outdoor 731-2104C

Lift Lever Cover
(Superseded to 931-2104C)

$35.99

$

Usually ships in 3-6 days

0

31

White Outdoor 731-1993

Cover w/ Cup Holder
(Superseded to 731-1993A)

$25.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 783-0677

Lift Adjustment Bracket
(Superseded to 783-0677B-0637)

Variations

White Outdoor 783-0677-0637

BRACKET:LIFT:ADJ - POWDER BLACK (0637)

$

$

Not available

$

$

34

White Outdoor 783-04333

Fender
(Superseded to 783-04333A)

Variations

White Outdoor 783-04333-0606

FENDER - 4 STYLE - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 783-04333-0638

FENDER - 4 STYLE - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04333-0650

FENDER - 4 STYLE - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04333-0665

FENDER - 4 STYLE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04333-0709

FENDER - 4 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

$332.99

$

Usually ships in 3-6 days

0

35

White Outdoor 783-1489

Seat Mounting Bracket
(Superseded to 783-1489C)

Variations

White Outdoor 783-1489-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

$19.99

$

Usually ships in 3-6 days

0

36

White Outdoor 783-0209C

Lift Bracket: Seat
(Superseded to 783-0209D)

$16.99

$

In Stock, only 1 left!

0

37

White Outdoor 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 736-0219

Bell Washer
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

39

White Outdoor 738-04012

Shoulder Screw 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 12

0

40

White Outdoor 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

41

White Outdoor 736-0175

Spring Washer, .265 x .562 x .025
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

42

White Outdoor 736-0204

Flat Washer, .344 x .62 x .03

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 738-0296

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

44

White Outdoor 738-0966

Shoulder Screw, .50 x .925, 3/8-16
(Superseded to 738-0966A)

$4.99

$

In Stock, Qty 19

0

45

White Outdoor 710-0599

Self-Tapping Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 783-04081A

Seat Pivot Bracket

Variations

White Outdoor 783-04081A-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 783-04081A-4008

BRACKET-SEAT PIVOT - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-6 days

0

47

White Outdoor 720-04009

Adjustment Knob: Seat
(Superseded to 720-04009A)

$16.99

$

In Stock, only 2 left!

0

48

White Outdoor 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

49

White Outdoor 757-04014A

Medium Back Seat, Black
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

White Outdoor 757-04001

Low Back Seat, Black
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

50

White Outdoor 735-0656

RH Foot Pad

$25.99

$

Usually ships in 3-6 days

0

51

White Outdoor 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0

White Outdoor 726-3046

Foot Pad Clips

Note: (Not Shown)

$3.99

$

In Stock, Qty 16

0

52

White Outdoor 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

53

White Outdoor 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

54

White Outdoor 783-1031A

Hitch Plate

Variations

White Outdoor 783-1031A-0691

HITCH PLATE-UPPER - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-1031A-0637

HITCH PLATE-UPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-1031A-0650

HITCH PLATE-UPPER - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-1031A-0665

HITCH PLATE-UPPER - YARDMAN GREEN (0665)

$

$

Not available

$

$

55

White Outdoor 683-0304C

Lower Frame Assembly

Variations

White Outdoor 683-0304C-0606

FRAME ASSY-LOWER - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 683-0304C-0637

LOWER FRAME ASSY POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0304C-0650

FRAME ASSY-LOWER - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0304C-0665

FRAME ASSY-LOWER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-0304C-0691

FRAME ASSY-LOWER - BLACK JACK (0691)

$

$

Not available

White Outdoor 683-0304C-0716

FRAME ASSY-LOWER - CUB YELLOW-99 (0716)

$

$

Not available

$

$
