LT 18500 (2690518) - Snapper 50" Lawn Tractor, 18hp 50" Mower Deck - Housing, Arbors & Blades Group - LT22500 Parts Diagram

50" Lawn Tractor, 18hp

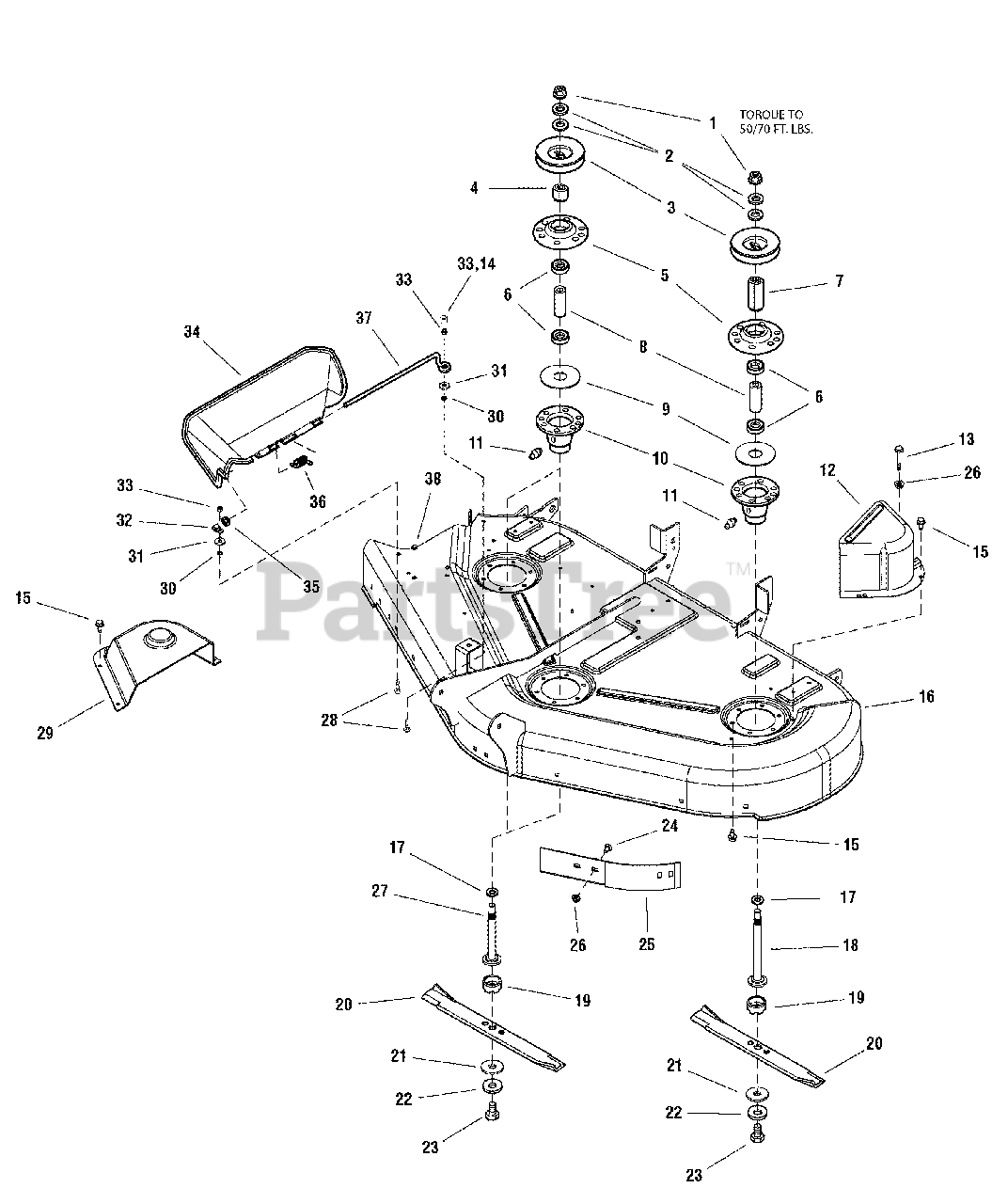

50" Mower Deck - Housing, Arbors & Blades Group - LT22500 Parts Diagram

  • Title

1

Snapper 1714419

NUT, Hex, Flange, 9/16-8
(Superseded to 1714419SM)

$5.99

$

In Stock, Qty 20+

0

2

Snapper 1713675

WASHER, Bellville, 9/16
(Superseded to 1713675SM)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 1713161

PULLEY, RH Arbor & LH Arbor, 4-1/2
(Superseded to 1713161SM)

$20.99

$

In Stock, Qty 20+

0

4

Snapper 1713613

HUB, Pulley, RH
(Superseded to 1713613SM)

$15.99

$

In Stock, Qty 20+

0

5

Snapper 1713199A

COVER, Arbor Housing
(Superseded to 1713199ASM)

$16.99

$

In Stock, Qty 20+

0

6

Snapper 1705897

BEARING
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

7

Snapper 1713616

HUB, Adapter, LH
(Superseded to 1713616SM)

$24.99

$

In Stock, Qty 20+

0

8

Snapper 1713204

SPACER
(Superseded to 1732543SM)

$8.49

$

In Stock, Qty 20+

0

9

Snapper 1707335

GASKET, Foam
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

10

Snapper 1713338A

HOUSING, Arbor Bottom, w/Lube Fitting
(Superseded to 1713338ASM)

$41.99

$

In Stock, Qty 20+

0

11

Snapper 1704314

FITTING, Grease
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

12

Snapper 1720560A

COVER, Arbor
(Superseded to 1720560ASM)

$90.99

$

In Stock, only 1 left!

0

13

Snapper 1960730

CAPSCREW, Hex Head, Serrated Flange Taptite, 5/16-18 x 2 G5
(Superseded to 1960730SM)

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 1916622

NUT, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

15

Snapper 1664847

CAPSCREW, Hex Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 1728998D

HOUSING ASSEMBLY, 50" Frame Hung
(Superseded to 1687215SM)

$1494.99

$

Usually ships in 2-12 days

0

17

Snapper 1713619

WASHER
(Superseded to 1713619SM)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 1713612

SHAFT, Arbor
(Superseded to 1713612SM)

$

$

Not available

19

Snapper 1713196

SHIELD, Grass, Lower
(Superseded to 1713196SM)

$9.49

$

In Stock, Qty 20+

0

20

Snapper 1726453

BLADE, 18-1/8, 50" Deck
(Superseded to 1726453YP)

Note: (Was 1708229)

$24.99

$

In Stock, Qty 20+

0

21

Snapper 1713089

WASHER, Hex
(Superseded to 1713089SM)

$4.99

$

In Stock, Qty 20+

0

22

Snapper 1656916

WASHER, Spring
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

23

Snapper 2823471

CAPSCREW, Hex Head, 7/16-14 x 1-1/4
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 1931333

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

25

Snapper 1724538A

BAFFLE, Anti-Blowout
(Superseded to 1724538ASM)

$45.99

$

In Stock, only 1 left!

0

26

Snapper 1931277

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

27

Snapper 1713609

SHAFT, Arbor, RH
(Superseded to 1713609SM)

$30.99

$

In Stock, Qty 20+

0

28

Snapper 1960698

CARRIAGE BOLT, 1/4-20 x 1, Black
(Superseded to 1960698SM)

$3.99

$

In Stock, Qty 9

0

29

Snapper 1715673

COVER, Arbor, RH
(Superseded to 1715673SM)

$38.99

$

In Stock, only 1 left!

0

30

Snapper 1960518

NUT, Push On
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

31

Snapper 1960353

WASHER, Plain, 1/4 (6 Total for Export)
(Superseded to 703229)

$4.49

$

In Stock, Qty 8

0

32

Snapper 1704873

CLAMP
(Superseded to 1704873SM)

$4.49

$

In Stock, Qty 20+

0

33

Snapper 1920397

NUT, Hex Lock, ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

34

Snapper 1705449

DEFLECTOR, Plastic
(Superseded to 1705449SM)

$122.99

$

In Stock, only 2 left!

0

35

Snapper 1919326

WASHER, Flat, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

36

Snapper 1723938

SPRING
(Superseded to 1723938SM)

$

$

Not available

37

Snapper 1706709A

ROD, Deflector, Front
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 20+

0

38

Snapper 1705115

PLUG, Plastic
(Superseded to 1705115SM)

$4.49

$

In Stock, only 1 left!

0
