LT-1850 (13BT616H190) - White Outdoor 46" Lawn Tractor (2002) Deck Assembly 46" Parts Diagram

46" Lawn Tractor

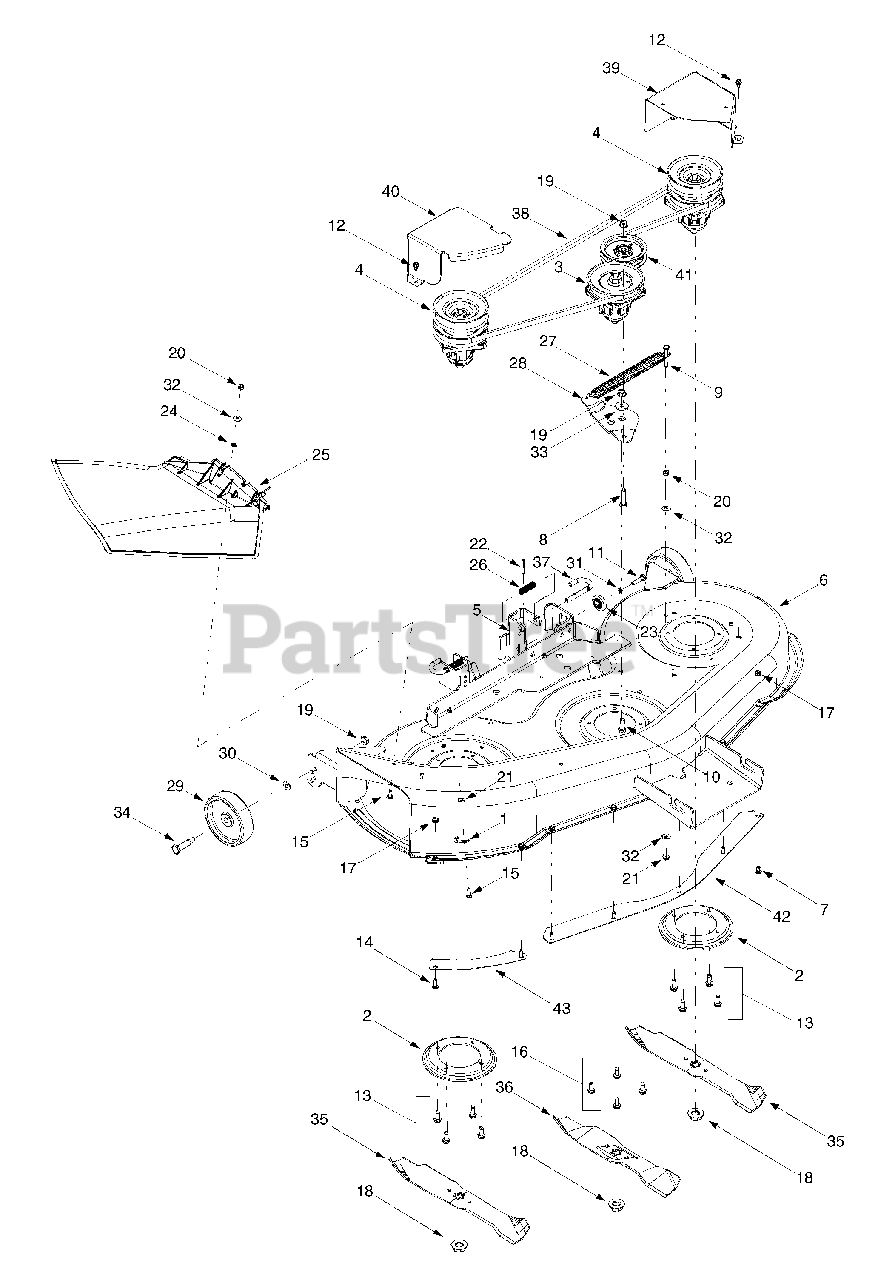

Deck Assembly 46" Parts Diagram

  • Title

1

White Outdoor 16606

Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

White Outdoor 17982

Spindle Reinforcement Plate
(Superseded to 17982-0637)

Variations

White Outdoor 17982-0637

Spindle Plate, Black - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 618-0430A

Spindle Assembly, 5.0 Dia. w/ Fitting
(Superseded to 918-0240C)

$136.99

$

In Stock, only 3 left!

0

White Outdoor 756-1187

Pulley Only

$38.99

$

In Stock, only 2 left!

0

4

White Outdoor 618-0431

Double Pulley Spindle Assembly w/ Fitting
(Superseded to 918-0241B)

$183.99

$

In Stock, only 1 left!

0

White Outdoor 756-0603

Pulley Only

$119.99

$

Usually ships in 3-6 days

0

5

White Outdoor 683-0254

Deck Adjustment Bracket Assembly
(Superseded to 683-0254B)

Variations

White Outdoor 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254-0650

BRACKET ASSY-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254-0665

BRACKET ASSY-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

6

White Outdoor 683-0265C

46-inch Deck Shell

Variations

White Outdoor 683-0265C-0606

DECK ASSY-46" LT - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 683-0265C-0637

DECK ASSY-46" LT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0265C-0667

DECK ASSY-46" LT - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 683-0265C-0709

DECK ASSY-46" LT - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 683-0265C-0638

DECK ASSY-46" LT - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 683-0265C-0650

DECK ASSY-46" LT - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0265C-0665

DECK ASSY-46" LT - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-0265C-0691

DECK ASSY-46" LT - BLACK JACK (0691)

$

$

Not available

White Outdoor 683-0265C-0708

DECK ASSY-46" LT - MELLON YELLOW (0708)

$

$

Not available

$

$

7

White Outdoor 710-0167

Carriage Screw, 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0344

Hex Cap Screw, 3/8-16 x 1.5

$5.99

$

In Stock, Qty 11

0

9

White Outdoor 710-0501

Hex Cap Screw, 1/4-20 x 2.0

$7.49

$

Usually ships in 3-6 days

0

10

White Outdoor 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0528

Hex Cap Screw, 5/8-18 x 1.25

$4.49

$

In Stock, Qty 19

0

12

White Outdoor 710-0599

Self-tapping Screw,1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 710-0650

Self-tapping Screw,15/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 710-0703

Hex Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

18

White Outdoor 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 17

0

21

White Outdoor 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 717-1553A

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 9

0

24

White Outdoor 726-0233

Push Nut. .25 x .5

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 731-1032B

Side Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 5

0

26

White Outdoor 732-0306

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

27

White Outdoor 732-0594A

Extension Spring, .91 x 7.3
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

28

White Outdoor 783-0139A

Idler Bracket
(Superseded to 783-0139B-0637)

Variations

White Outdoor 783-0139A-0637

Idler Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

29

White Outdoor 734-0973

Deck Wheel, 5 x 1.38

$12.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 738-0347

Shoulder Spacer, .625 x 1.16
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

34

White Outdoor 738-0373

Shoulder Screw
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

35

White Outdoor 742-0611

Three-in-one Blade, Star Center, 16.28"
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

36

White Outdoor 742-0612

Three-in-one Blade, Star Center, 14.88"
(Superseded to 942-0612A)

$29.99

$

In Stock, Qty 13

0

37

White Outdoor 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

38

White Outdoor 754-0349

Deck Belt, Poly
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

39

White Outdoor 783-0747

LH Belt Cover
(Superseded to 783-0747B)

Variations

White Outdoor 783-0747-0637

Belt Cover, LH 46" Black - POWDER BLACK (0637)

$58.99

$

In Stock, only 1 left!

0

White Outdoor 783-0747-0691

Belt Cover, LH 46" Black - BLACK JACK (0691)

$58.99

$

In Stock, only 1 left!

0

White Outdoor 783-0747-0650

Belt Cover, LH 46" Red - RED METALLIC (0650)

$58.99

$

In Stock, only 1 left!

0

White Outdoor 783-0747-0665

COVER-BELT LH 46" - YARDMAN GREEN (0665)

$58.99

$

In Stock, only 1 left!

0

$54.99

$

Usually ships in 3-6 days

0

40

White Outdoor 783-0805A

RH Belt Cover
(Superseded to 783-0805C)

Variations

White Outdoor 783-0805A-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0805A-0650

COVER-BELT RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0805A-0665

COVER-BELT RH - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0805A-0691

COVER-BELT RH - BLACK JACK (0691)

$

$

Not available

$

$

41

White Outdoor 756-0627B

Idler Pulley, 3.5
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

42

White Outdoor 783-0141

Center Deck Skirt

Variations

White Outdoor 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

43

White Outdoor 783-0142

RH Deck Skirt
(Superseded to 783-0142-0637)

Variations

White Outdoor 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0
