LT-1842 (13CX609G063) - Troy-Bilt 42" Lawn Tractor (2002) Deck 42-Inch Parts Diagram

42" Lawn Tractor

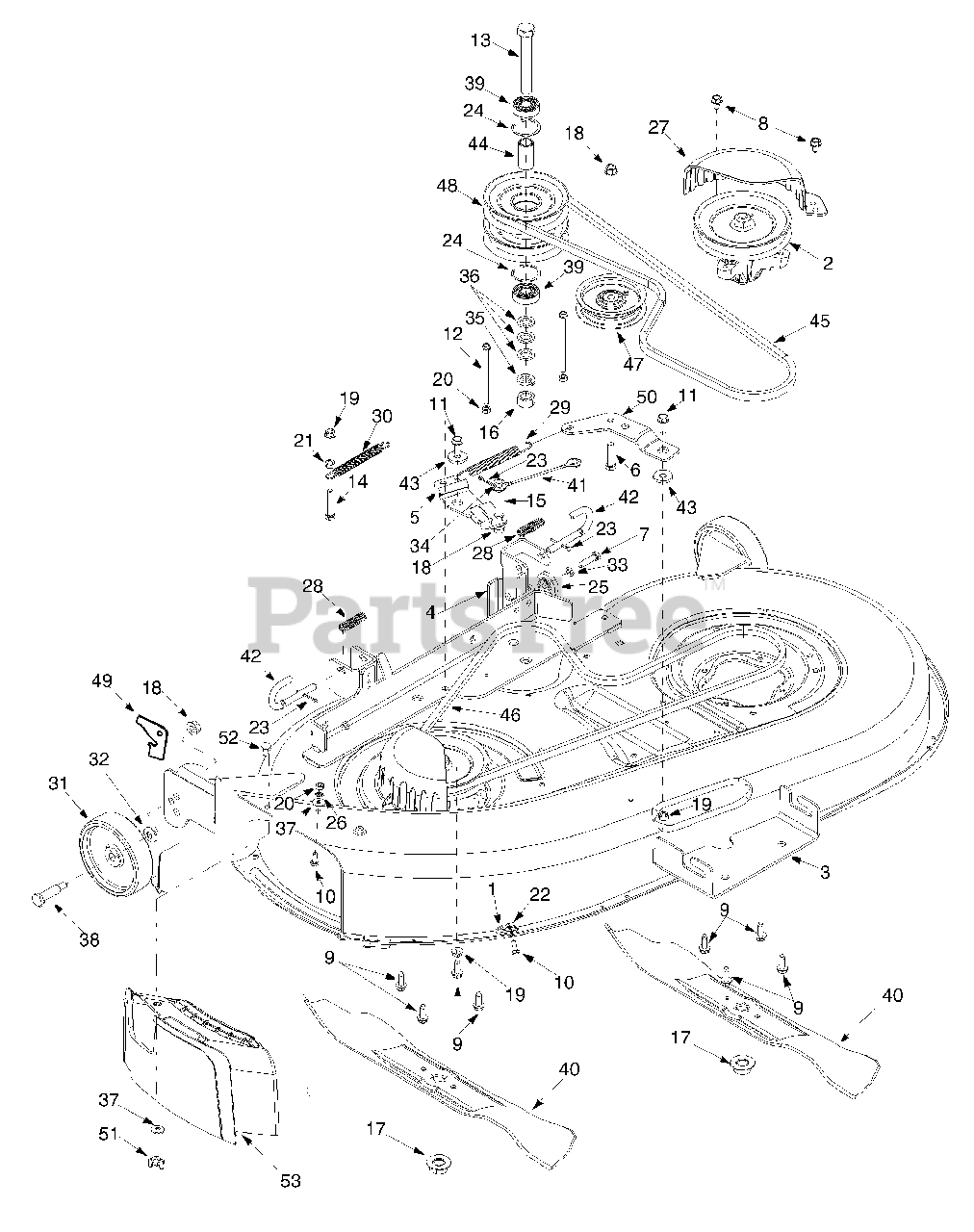

Deck 42-Inch Parts Diagram

  • Title

1

Troy-Bilt 16606

Bracket: Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Troy-Bilt 618-0565

Spindle Assembly: Pulley
(Superseded to 918-0574C)

$

$

Not available

3

Troy-Bilt 683-0198E

Deck Assembly
(Superseded to 983-0198G)

Variations

Troy-Bilt 683-0198E-0637

SHELL ASM-42" DECK - POWDER BLACK (0637)

$580.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0198E-0638

SHELL ASM-42" DECK - MTD/TROY-BILT RED (0638)

$580.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0198E-0650

SHELL ASM-42" DECK - RED METALLIC (0650)

$580.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0198E-0665

SHELL ASM-42" DECK - YARDMAN GREEN (0665)

$580.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0198E-0691

SHELL ASM-42" DECK - BLACK JACK (0691)

$580.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0198E-0716

42" DECK SHELL - CUB YELLOW-99 (0716)

$580.99

$

Usually ships in 3-6 days

0

$580.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 683-0254

Deck Hanger Bracket LH
(Superseded to 683-0254B)

Variations

Troy-Bilt 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

Troy-Bilt 683-0254-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 683-0440

Brake Assembly: deck

$53.99

$

In Stock, only 3 left!

0

6

Troy-Bilt 710-0520

Hex Screw 3/8-16 x 1.5

$4.49

$

In Stock, Qty 5

0

7

Troy-Bilt 710-0528

Hex Screw 5/16-18 x 1.25

$4.49

$

In Stock, Qty 19

0

8

Troy-Bilt 710-0604A

TT Screw 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0650

TT Screw 5/16-18 x 0.875

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0751

Hex Screw 1/4-20 x 0.620

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-1238

Hex Washer Head Screw
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-1830

TT Screw 1/4-20 x 4.0

$7.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 710-3151

Hex Screw 5/8-18 x 4.25

$20.99

$

In Stock, Qty 12

0

14

Troy-Bilt 710-3180

Hex Screw 5/16-18 x 1.75

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 711-1534

Pin

$12.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 712-0337

Hex Nut 5/8-18

$4.49

$

In Stock, only 4 left!

0

17

Troy-Bilt 712-0417A

Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-0431

Flange Lock Nut
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-3004A

Flange Lock Nut

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 17

0

21

Troy-Bilt 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-3027

Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 716-3020

Snap Ring
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 717-1553A

Gear: Deck Adjustment
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 9

0

26

Troy-Bilt 726-0233

Push Nut

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 731-2486

Belt Cover
(Superseded to 731-2486A)

$22.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 732-0306

Compression Spring
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

29

Troy-Bilt 732-0470A

Extension Spring
(Superseded to 932-0470A)

$9.99

$

In Stock, only 4 left!

0

30

Troy-Bilt 732-1165

Extension Spring
(Superseded to 732-04197)

$6.99

$

In Stock, Qty 12

0

31

Troy-Bilt 734-0973

Deck Wheel

$12.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 736-0140

Flat Washer

$7.49

$

In Stock, Qty 6

0

35

Troy-Bilt 736-0158

Lock Washer

$4.49

$

In Stock, Qty 11

0

36

Troy-Bilt 736-0162

Flat Washer

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 738-0373

Sholder Spacer
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 741-0524

Bearing
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 742-0616

Blade
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 746-0970

Brake Cable

$12.99

$

In Stock, only 4 left!

0

42

Troy-Bilt 747-1116

Deck Release Rod

$12.99

$

In Stock, Qty 6

0

43

Troy-Bilt 748-0331

Shoulder Spacer
(Superseded to 948-0331)

$

$

Not available

44

Troy-Bilt 750-0932A

Spacer
(Superseded to 950-0932A)

$20.99

$

In Stock, Qty 11

0

45

Troy-Bilt 754-0497

V-Belt
(Superseded to 954-0497)

$45.99

$

In Stock, Qty 18

0

46

Troy-Bilt 754-0498

V-Belt
(Superseded to 954-0498)

$44.99

$

In Stock, Qty 7

0

47

Troy-Bilt 756-0627B

Idler Pulley
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 756-1202

Double Pulley

$95.99

$

In Stock, only 2 left!

0

49

N/A

Chute Stop

$

$

Not available

50

Troy-Bilt 783-1291

Idler Bracket
(Superseded to 783-1291A-0637)

Variations

Troy-Bilt 783-1291-0637

Idler Bracket - POWDER BLACK (0637)

$12.99

$

In Stock, only 3 left!

0

$12.99

$

In Stock, only 3 left!

0

51

Troy-Bilt 712-3087

Wing Nut

$3.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 710-0134

Carriage Screw

$4.49

$

In Stock, Qty 20+

0

53

Troy-Bilt 731-2363

Mulch Plug

$29.99

$

In Stock, only 3 left!

0
