LT 18400 (2690404) - Snapper 40" Lawn Tractor, 18hp 40" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

40" Lawn Tractor, 18hp

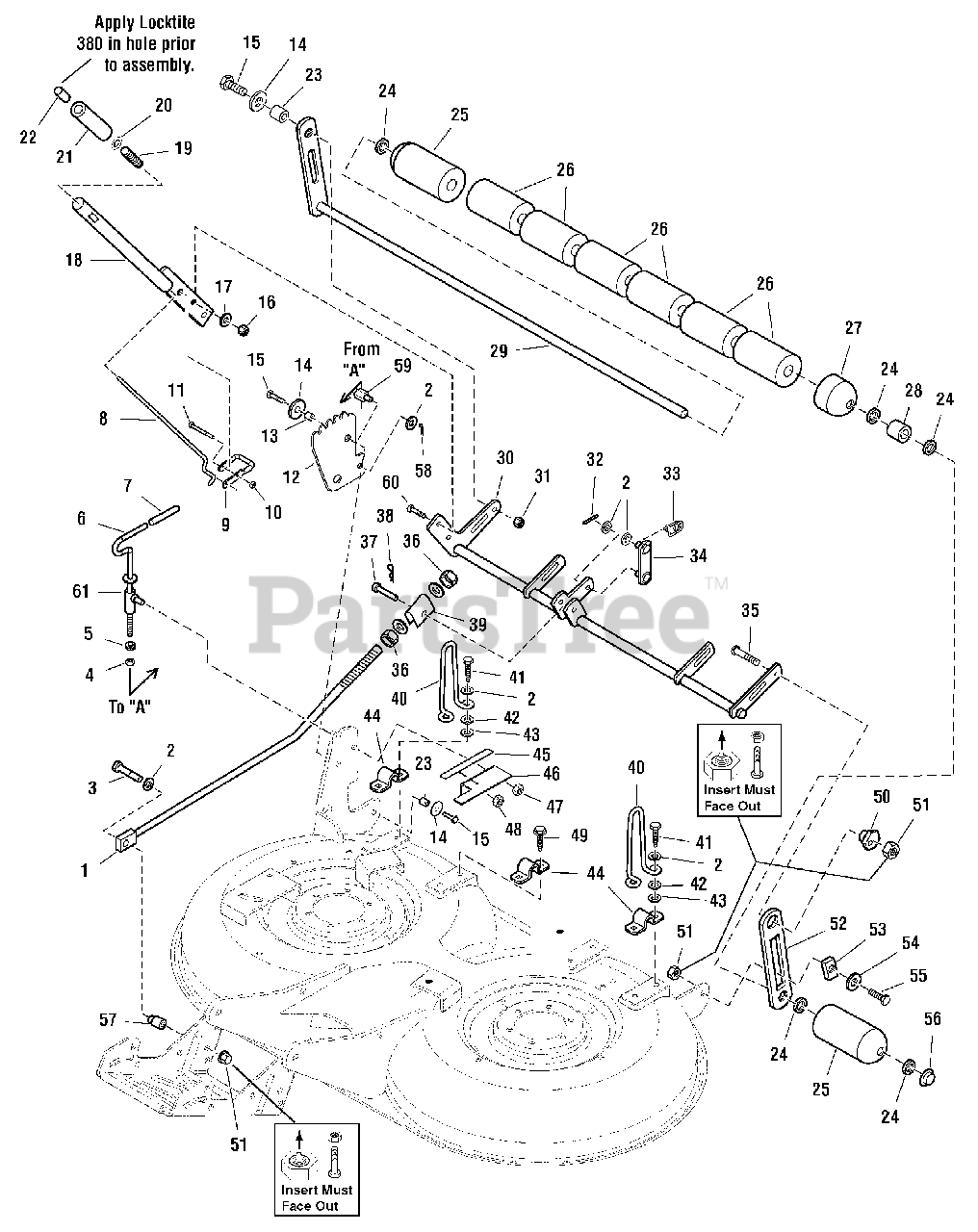

40" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

  • Title

1

Snapper 1722661

ROD
(Superseded to 1722661SM)

$24.99

$

Usually ships in 2-12 days

0

2

Snapper 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

3

Snapper 1922606

CAPSCREW, Hex Head, 3/8-16 x 1 3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 12

0

4

Snapper 1917421

NUT, Hex Jam, 3/8-16
(Superseded to 1917421SM)

$4.99

$

In Stock, Qty 10

0

5

Snapper 1960601

NUT, Hex Flange, 3/8-16 Black
(Superseded to 1960601SM)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 1720704

ROD & WASHER ASSEMBLY, Adjust Handle
(Superseded to 1720704SM)

$22.99

$

Usually ships in 2-12 days

0

7

Snapper 1651820

GRIP, Black Vinyl For Rod
(Superseded to 5023198SM)

$4.49

$

In Stock, only 2 left!

0

8

Snapper 1721257

ROD, Latch
(Superseded to 1721257SM)

$10.99

$

Usually ships in 2-12 days

0

9

Snapper 1720599

LATCH, 5/16 WIRE
(Superseded to 1720599SM)

$22.99

$

Usually ships in 2-12 days

0

10

Snapper 1920397

NUT, Hex Lock Esna Light, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 1921159

CAPSCREW, Hex Head, 1/4-20 x 2 1/4
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

12

Snapper 1723409A

BRACKET, Adjusting
(Superseded to 1723409ASM)

$14.99

$

Usually ships in 2-12 days

0

13

Snapper 1666697

SPACER
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

14

Snapper 1960044

WASHER, 5/16
(Superseded to 1960044SM)

$4.49

$

In Stock, only 3 left!

0

15

Snapper 1921977

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

16

Snapper 1917372

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 1917356

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

18

Snapper 1720695A

HANDLE ASSEMBLY, Lift, 40" Munching
(Superseded to 1720695ASM)

$133.99

$

Usually ships in 2-12 days

0

19

Snapper 1723321

SPRING, Compression 3-7/8" Long
(Superseded to 1723321SM)

$6.99

$

In Stock, only 4 left!

0

20

Snapper 1960674

PUSH NUT, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 1713995

GRIP, Black Soft for Rod
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

22

Snapper 1723124

BUTTON, Red
(Superseded to 1723124SM)

$5.99

$

In Stock, Qty 20+

0

23

Snapper 1960236

SPACER
(Superseded to 1960236SM)

$6.49

$

In Stock, only 2 left!

0

24

Snapper 1924366

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 1722036

ROLLER
(Superseded to 1722036SM)

$7.99

$

In Stock, Qty 20+

0

26

Snapper 1668513

ROLLER
(Superseded to 1668513SM)

$10.99

$

In Stock, Qty 20+

0

27

Snapper 1717675

ROLLER
(Superseded to 1717675SM)

$6.99

$

In Stock, Qty 20+

0

28

Snapper 1602946

SPACER
(Superseded to 1602946SM)

$13.99

$

In Stock, Qty 20+

0

29

Snapper 1723305A

SHAFT & BAR ASSEMBLY
(Superseded to 1723305ASM)

$131.99

$

Usually ships in 2-12 days

0

30

Snapper 1723303A

SHAFT ASSEMBLY
(Superseded to 1723303ASM)

$125.99

$

Usually ships in 2-12 days

0

31

Snapper 2860643

NUT, Hex, 5/16-18
(Superseded to 2860643SM)

$3.49

$

In Stock, only 4 left!

0

32

Snapper 1920161

NUT, Hex Jam, 5/16-18
(Superseded to 1920161SM)

$4.49

$

In Stock, only 2 left!

0

33

Snapper 7028200

TRUNNION
(Superseded to 7028200SM)

$13.99

$

In Stock, only 2 left!

0

34

Snapper 1724959

ROD, Height Adjustment
(Superseded to 703827)

$10.99

$

In Stock, Qty 11

0

35

Snapper 1931352

CARRIAGE BOLT, 3/8-16 x 1-1/2
(Superseded to 1931352SM)

$4.49

$

In Stock, Qty 5

0

36

Snapper 1915726

NUT, Hex, 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

37

Snapper 2118053

PIN
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

38

Snapper 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

39

Snapper 1706645A

TRUNNION, Rod
(Superseded to 1706645ASM)

$8.49

$

Usually ships in 2-12 days

0

40

Snapper 1720659

UPSTOP
(Superseded to 1720659SM)

$12.99

$

Usually ships in 2-12 days

0

41

Snapper 1931202

CAPSCREW, Hex Head Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

42

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

43

Snapper 1933988

NUT, Push, 5/16
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

44

Snapper 1665374A

STRAP, Roller Support
(Superseded to 1665374SM)

$7.99

$

Usually ships in 2-12 days

0

45

Snapper 1720919

DECAL, Height of Cut
(Superseded to 1720919SM)

$13.99

$

Usually ships in 2-12 days

0

46

Snapper 1720931A

BRACKET, Height of Cut
(Superseded to 1720931ASM)

$10.99

$

Usually ships in 2-12 days

0

47

Snapper 1930651

NUT, Hex Centerlock 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

48

Snapper 1935048

NUT, Hex Flange Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

49

Snapper 1664847

CAPSCREW, Taptite Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

50

Snapper 1704082

NUT, Hex Adjusting
(Superseded to 1704082SM)

$5.49

$

In Stock, Qty 16

0

51

Snapper 2860681

NUT, Toplock Spiral Flange, 3/8-16
(Superseded to 2860681SM)

$4.49

$

In Stock, Qty 7

0

52

Snapper 1704073A

BAR
(Superseded to 1704073ASM)

$34.99

$

In Stock, only 1 left!

0

53

Snapper 1677507

SLIDE
(Superseded to 1677507SM)

$6.99

$

In Stock, only 3 left!

0

54

Snapper 1924361

WASHER, 1/2
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

55

Snapper 2172622

BOLT, Shoulder, 3/8-16 x 1-11/32
(Superseded to 2172622SM)

$6.99

$

In Stock, Qty 20+

0

56

Snapper 1960520

NUT, Push 5/8
(Superseded to 1960520SM)

$3.99

$

In Stock, Qty 20+

0

57

Snapper 1706644

SPACER
(Superseded to 1706644SM)

$8.49

$

In Stock, only 1 left!

0

58

Snapper 1918447

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

59

Snapper 2108512

PIVOT, 3/4 Hex
(Superseded to 2108512SM)

$36.99

$

In Stock, only 1 left!

0

60

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

61

Snapper 2108241

GUIDE ASSEMBLY, Rod
(Superseded to 2108241AYP)

$50.99

$

Usually ships in 2-12 days

0
