LT 180H48FBV2 (84359) - Snapper 48" Lawn Tractor, 18hp Wheels, Front & Rear Parts Diagram

48" Lawn Tractor, 18hp

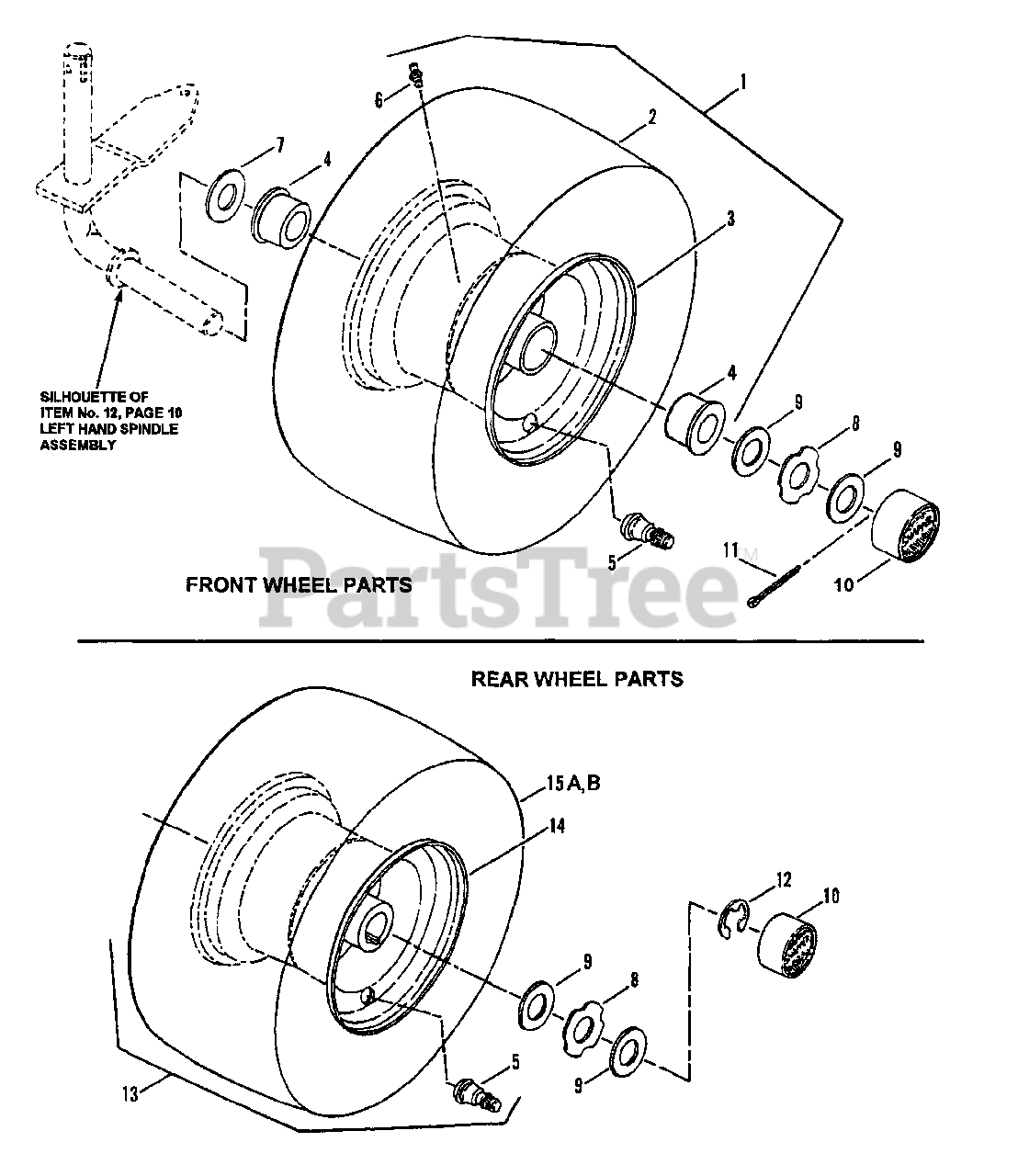

Wheels, Front & Rear Parts Diagram

  • Title

1

Snapper 7058517

ASSEMBLY, Front Tire & Rim
(Superseded to 7058517YP)

Note: (Includes items 2, 3, 4, 5 & 6). (For models LT160H42FBV & LT160H42FBV2)

$167.99

$

Usually ships in 2-12 days

0

1

Snapper 7058521

ASSEMBLY, Front Tire & Rim
(Superseded to 7058517YP)

Note: (Includes items 2, 3A, 4A, 5 & 6). (For model LT180H48FBV2)

$167.99

$

Usually ships in 2-12 days

0

2

Snapper 7072704

TIRE, 15 x 6.00
(Superseded to 7058517YP)

$167.99

$

Usually ships in 2-12 days

0

3

Snapper 7022772

RIM, 6.00 x 3.50
(Superseded to 7058517YP)

$167.99

$

Usually ships in 2-12 days

0

3

Snapper 7071966

RIM, 6.00 x 4.00 Grey
(Superseded to 7058517YP)

$167.99

$

Usually ships in 2-12 days

0

4

Snapper 7014483

BEARING, Wheel
(Superseded to 7014483YP)

$10.99

$

In Stock, Qty 11

0

4

Snapper 7028722

BEARING, Wheel (Heim)
(Superseded to 7028722YP)

$29.99

$

In Stock, Qty 9

0

5

Snapper 7012234

VALVE, Air (Snap-in)
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

6

Snapper 7076998

FITTING, Lube 1/4-28 Tapered Thread
(Superseded to 703153)

Note: Was 13876

$3.99

$

In Stock, Qty 12

0

7

Snapper 7034453

WASHER, Flat, 5/32 x 25/32" I.D. x 1-1/2" O.D.
(Superseded to 7034453YP)

$5.49

$

Usually ships in 2-12 days

0

8

Snapper 7029618

WASHER, Hub-Cap Retaining

$3.99

$

In Stock, only 3 left!

0

9

Snapper 7029617

WASHER, Flat, 1/16x49/64 I.D. x1-5/16" O.D.
(Superseded to 7029617YP)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7011022

HUB-CAP
(Superseded to 7011022YP)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7091516

COTTER-PIN, 5/32 x 1"
(Superseded to 703984)

$4.49

$

In Stock, Qty 14

0

12

Snapper 7010746

RING, External Retaining, 3/4"
(Superseded to 703975)

Note: Was 29738

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7058519

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058519YP)

Note: (Includes items 5, 14, & 15A). (For model LT160H42FBV)

$205.99

$

In Stock, only 1 left!

0

13

Snapper 7058520

ASSEMBLY, Rear Tire & Rim
(Superseded to 7058520YP)

Note: (Includes items 5, 14, & 15B). (For models LT160H42FBV2 & LT180H48FBV2)

$222.99

$

Usually ships in 2-12 days

0

14

Snapper 7024454

RIM, 8 x 7.00
(Superseded to 7024454YP)

$122.99

$

Usually ships in 2-12 days

0

15A

Snapper 7072706

TIRE, 18 x 9.50
(Superseded to 7072706YP)

$153.99

$

Usually ships in 2-12 days

0

15B

Snapper 7072707

TIRE, 20 x 10.00
(Superseded to 1722826SM)

$170.99

$

Usually ships in 2-12 days

0
