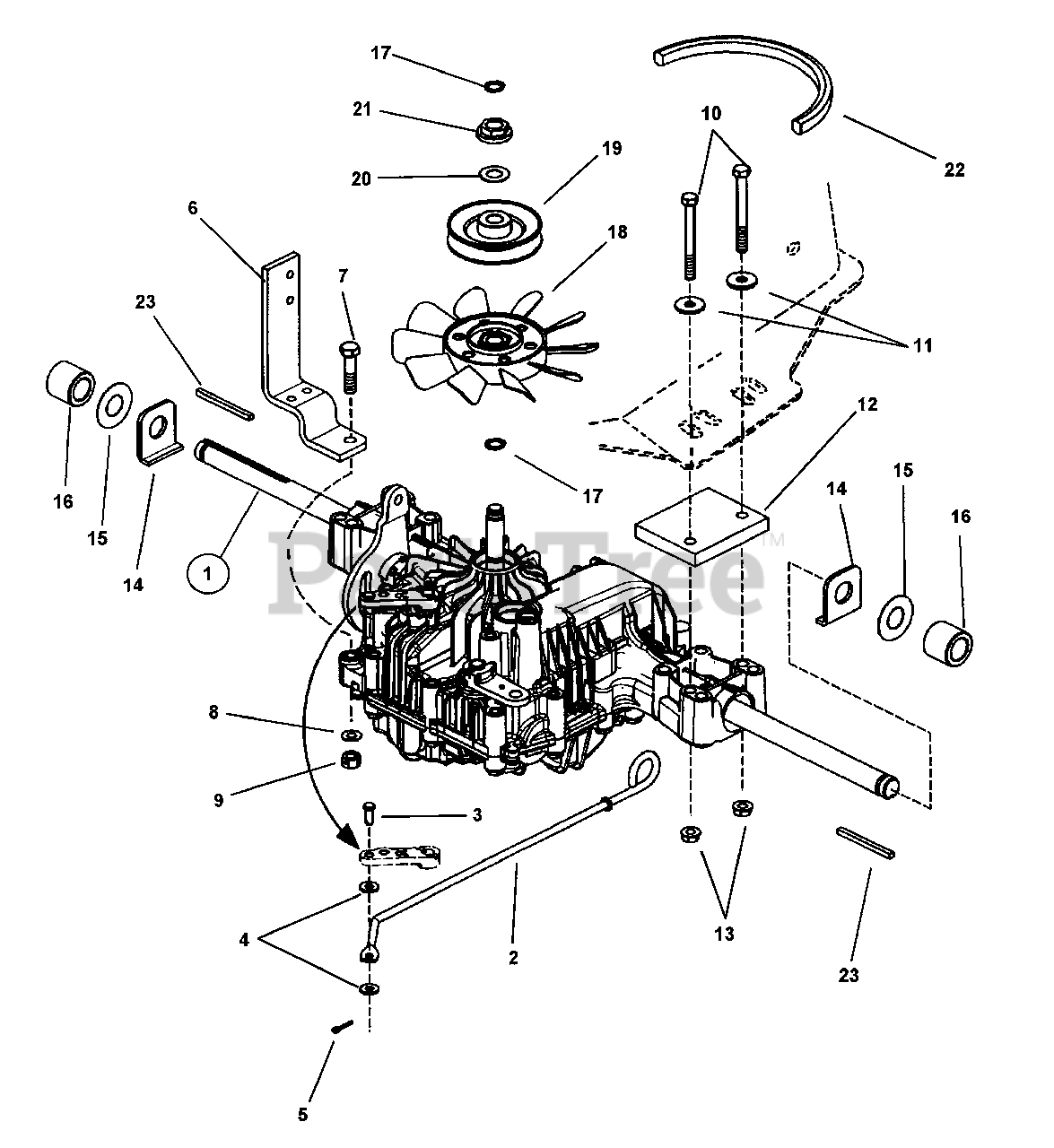

LT 180H48FBV2 (84359) - Snapper 48" Lawn Tractor, 18hp Transmission Group (Hydro Drive) Parts Diagram

48" Lawn Tractor, 18hp

Transmission Group (Hydro Drive) Parts Diagram

  • Title

1

Snapper 7074398

ASSEMBLY, Transaxle, K-46 Tuff Torq
(Superseded to 7074398YP)

Note: Was 73114 or 72635

$1481.99

$

Usually ships in 2-12 days

0

2

Snapper 7072387

ROD, Roll Release
(Superseded to 7072387YP)

Note: (For model K46)

$16.99

$

Usually ships in 2-12 days

0

3

Snapper 7091708

PIN, Clevis 1/4" x 5/8"
(Superseded to 7091708YP)

$5.99

$

Usually ships in 2-12 days

0

4

Snapper 7091294

WASHER, 1/4 x 5/8 x 1/16" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7091597

PIN, 3/32" x 1/2" Cotter
(Superseded to 703312)

Note: Was 90555

$3.99

$

In Stock, Qty 20+

0

6

Snapper 7072601

BRACKET, Torque
(Superseded to 7072601YP)

$45.99

$

Usually ships in 2-12 days

0

7

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

8

Snapper 7090188

WASHER, 5/16 x 11/16 x 1/16", Grade 5
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

9

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

10

Snapper 7091830

SCREW, 5/16-18 x 3-1/4" Hex Head Cap, Grade 5
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 7091675

WASHER, 5/16" Flat
(Superseded to 7091675YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7072717

SPACER, Hydro Axle - K46

$

$

Not available

13

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

14

Snapper 7072884

WASHER, Axle
(Superseded to 7072884YP)

$8.49

$

Usually ships in 2-12 days

0

15

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7072385

SPACER, Axle

$

$

Not available

17

Snapper 7073757

RING, E 15
(Superseded to 7073757YP)

Note: (Vendor # 192154-89090). Snapper numbers are not available for these items at this time. Order from Tuff-Torq (for model K46)

$4.99

$

In Stock, Qty 6

0

18

Snapper 7075753

FAN

Note: (Vendor # 1A6460-83050). Snapper numbers are not available for these items at this time. Order from Tuff-Torq (for model K46)

$

$

Currently unavailable

19

Snapper 7073800

PULLEY, 4" Diameter
(Superseded to 7073800YP)

Note: (Vendor # 1A6460-25333). Snapper numbers are not available for these items at this time. Order from Tuff-Torq (for model K46)

$75.99

$

In Stock, only 3 left!

0

20

Snapper 7073754

WASHER, Wave

Note: (Vendor # 1A6460-83060). Snapper numbers are not available for these items at this time. Order from Tuff-Torq (for model K46)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 7073747

SPACER
(Superseded to 7073747YP)

Note: (Vendor # 1A6460-25300). Snapper numbers are not available for these items at this time. Order from Tuff-Torq (for model K46)

$13.99

$

In Stock, only 1 left!

0

22

Snapper 7072657

BELT, Traction Drive
(Superseded to 7072657YP)

Note: (HA Section, 97.881 Effective Length)

$64.99

$

In Stock, only 3 left!

0

23

Snapper 7072386

KEY, 3/16" Square x 2-3/16" long
(Superseded to 7072386YP)

$5.49

$

In Stock, only 1 left!

0
