LT 180H33IBV (85690) - Snapper 33" Lawn Tractor, 18hp WHEELS, FRONT & REAR Parts Diagram

33" Lawn Tractor, 18hp

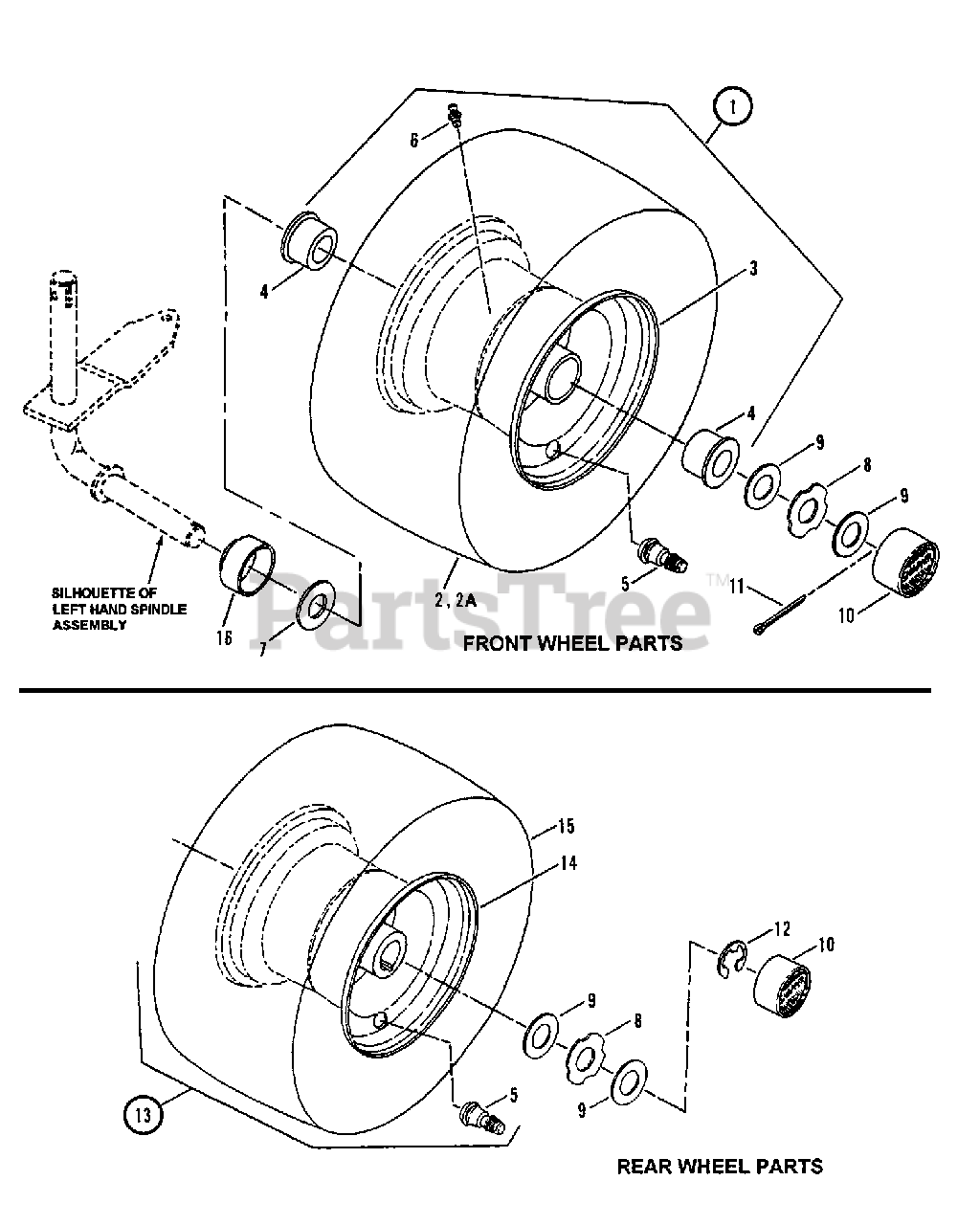

WHEELS, FRONT & REAR Parts Diagram

  • Title

1

Snapper 7058515

ASSEMBLY, Front Tire & Rim (Incl. items 2, 3, 4, 5 & 6)
(Superseded to 7058515YP)

Note: used on LT145H33HBV, ELT145H33HBV, LT150H33IBV & ELT150H33IBV

$117.99

$

Usually ships in 2-12 days

0

1

Snapper 7058517

ASSEMBLY, Front Tire & Rim (Incl. items 2A, 3, 4, 5 & 6)
(Superseded to 7058517YP)

Note: used on LT145H38HBV, LT150H38HBV, LT150H38IBV & WLT150H38IBV

$167.99

$

Usually ships in 2-12 days

0

2

Snapper 7072702

TIRE, 13 x 5.00 K500- Tread Kenda
(Superseded to 7058515YP)

Note: per front tire assembly

$117.99

$

Usually ships in 2-12 days

0

2A

Snapper 7072704

TIRE, 15 x 6.00-6 K500 Tread Kenda
(Superseded to 7058517YP)

Note: per front tire assembly

$167.99

$

Usually ships in 2-12 days

0

3

Snapper 7022772

RIM, 6.00 x 3.50, Grey
(Superseded to 7058517YP)

Note: per front tire assembly

$167.99

$

Usually ships in 2-12 days

0

4

Snapper 7014483

BEARING, Wheel PM
(Superseded to 7014483YP)

Note: per front tire assembly

$10.99

$

In Stock, Qty 11

0

5

Snapper 7012234

VALVE STEM, Air (Snap-In)
(Superseded to 7012234SM)

Note: per front & rear tire assemblies

$6.49

$

Usually ships in 2-12 days

0

6

Snapper 7076998

FITTING, Lube 1/4-28 Tapered Thread
(Superseded to 703153)

Note: Was 13876, per front tire assembly

$3.99

$

In Stock, Qty 12

0

7

Snapper 7010935

WASHER, 5/32 x 25/32" I.D. x 1-1/2" O.D. Flat
(Superseded to 7010935SM)

Note: per front tire assembly

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7029618

WASHER, Hub-Cap Retaining

Note: per front & rear tire assemblies

$3.99

$

In Stock, only 3 left!

0

9

Snapper 7029617

WASHER, 3/4 x 1-5/16 x 1/16"
(Superseded to 7029617YP)

Note: per front & rear tire assemblies

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7011022

HUB CAP
(Superseded to 7011022YP)

Note: per front & rear tire assemblies

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7091516

PIN, 5/32 x 1" Cotter
(Superseded to 703984)

Note: per front tire assembly

$4.49

$

In Stock, Qty 13

0

12

Snapper 7010746

RING, 3/4" External Retaining
(Superseded to 703975)

Note: Was 29738, per rear tire assembly

$3.99

$

In Stock, Qty 20+

0

13

Snapper 7058518

ASSEMBLY, Rear Tire & Rim (Includes items 5, 14 & 15)
(Superseded to 7058518YP)

$208.99

$

Usually ships in 2-12 days

0

14

Snapper 7024454

RIM, 8 x 7.00 Keyed Hub, Grey
(Superseded to 7024454YP)

Note: per rear tire assembly

$122.99

$

Usually ships in 2-12 days

0

15

Snapper 7072705

TIRE, 18 x 8.50-8 K500 Tread, Kenda
(Superseded to 7072705YP)

Note: per rear tire assembly

$125.99

$

Usually ships in 2-12 days

0

16

Snapper 7031038

DUST CAP
(Superseded to 7031038YP)

Note: per front tire assembly

$4.99

$

In Stock, Qty 12

0
