LT 180H33IBV (85690) - Snapper 33" Lawn Tractor, 18hp HYDRO RESERVOIR ASSEMBLY Parts Diagram

33" Lawn Tractor, 18hp

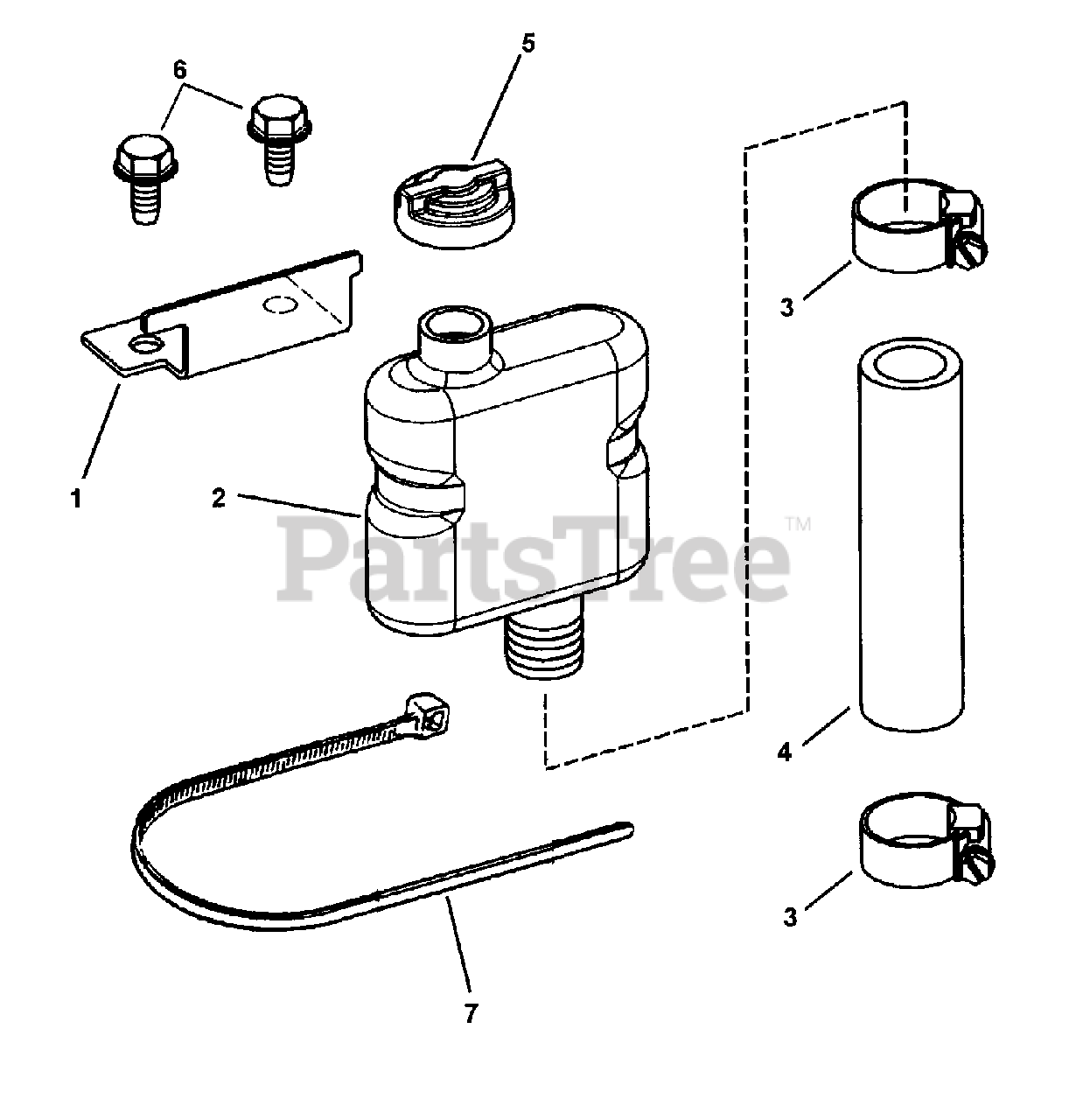

HYDRO RESERVOIR ASSEMBLY Parts Diagram

  • Title

1

Snapper 7072739

BRACKET, Reservoir Mounting
(Superseded to 7072739YP)

$8.49

$

Usually ships in 2-12 days

0

2

Snapper 7072736

RESERVOIR, Expansion- TTK46 Hydro
(Superseded to 7072736YP)

$49.99

$

Usually ships in 2-12 days

0

3

Snapper 7016130

CLAMP 13/16"
(Superseded to 7016130YP)

$3.49

$

In Stock, only 1 left!

0

4

Snapper 7072901

HOSE, Hydraulic-(4-1/2" long) TTK46 Hydro

$

$

Not available

5

Snapper 7091431

VALVE, Vent

$

$

Not available

6

Snapper 7090858

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

7

Snapper 7072914

CABLE TIE - 10 x 1/4 x .083 thick
(Superseded to 7023195SM)

$5.99

$

Usually ships in 2-12 days

0
