LT-1800 (13AT606H190) - White Outdoor 46" Lawn Tractor (2000) Tractor Body Parts Diagram

46" Lawn Tractor

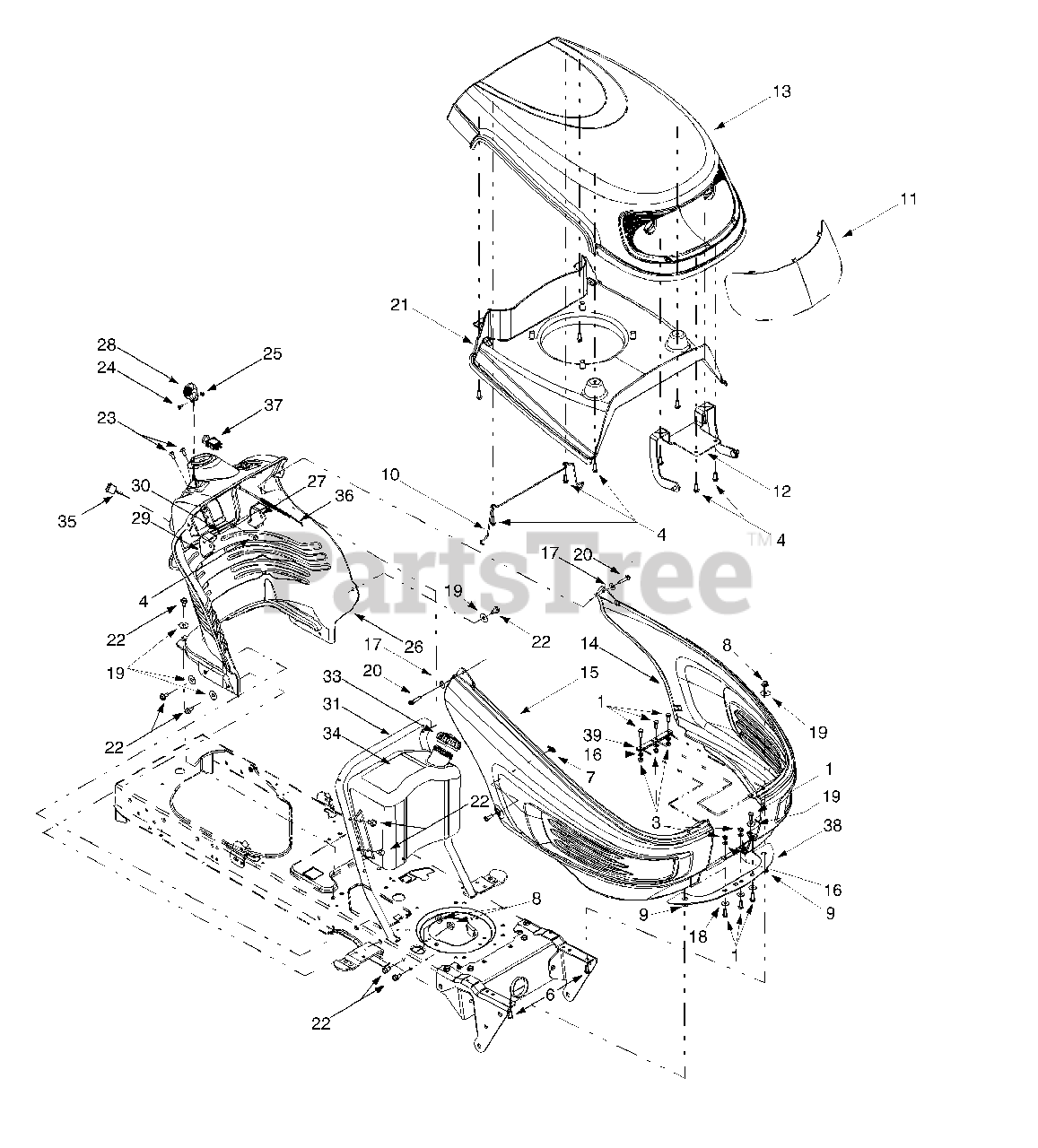

Tractor Body Parts Diagram

  • Title

1

White Outdoor 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

?2

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

4

White Outdoor 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

?5

White Outdoor 710-0924

Pan Phillips Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

White Outdoor 710-3103

Hex Cap Screw, 5/16-18 x 2.0

$4.49

$

In Stock, Qty 20+

0

White Outdoor 750-0807

Spacer, .385 x .625 x .70

$6.49

$

Usually ships in 3-6 days

0

7

White Outdoor 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

8

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

10

White Outdoor 747-1209

Hood Latch Rod
(Superseded to 747-1209A)

$22.99

$

Usually ships in 3-6 days

0

11

White Outdoor 731-2286

Head Light Lens
(Superseded to 931-2286)

$

$

Not available

12

White Outdoor 683-0305

Hood Bracket Assembly
(Superseded to 683-0305-0637)

Variations

White Outdoor 683-0305-0637

Hood Bracket Assembly, 6 ST - POWDER BLACK (0637)

$

$

Not available

$

$

13

White Outdoor 731-2283

Hood
(Superseded to 931-2283A)

$

$

Not available

14

White Outdoor 731-2307

LH Side Panel
(Superseded to 931-05473)

$141.99

$

In Stock, only 1 left!

0

15

White Outdoor 731-2308

RH Side Panel
(Superseded to 931-2308B)

$135.99

$

In Stock, only 1 left!

0

16

White Outdoor 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

17

White Outdoor 736-0342

Flat Washer, .283 x .75 x .030

$7.49

$

Usually ships in 3-6 days

0

18

White Outdoor 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 19

0

21

White Outdoor 731-2284

Hood Plenum

$63.99

$

Usually ships in 3-6 days

0

22

White Outdoor 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 710-1017

Torx Self-tapping Screw, 1/4-14 x .625

$8.49

$

In Stock, Qty 9

0

24

White Outdoor 710-3217

Torx Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

25

White Outdoor 712-0142

Hex Nut, 8-32

$4.49

$

In Stock, Qty 10

0

26

White Outdoor 731-0071

Dash Panel, 4-style
(Superseded to 731-0071E)

$

$

Not available

27

White Outdoor 731-0072

Parking Brake Button

$

$

Not available

28

White Outdoor 731-1857

Throttle Control Lever

$14.99

$

In Stock, only 4 left!

0

29

White Outdoor 731-2106

Cruise Control Button

$

$

Not available

30

White Outdoor 747-1155

Brake/Cruise Pivot Rod

$13.99

$

Usually ships in 3-6 days

0

31

White Outdoor 749-1087

Dash Support Tube
(Superseded to 749-1087A-0637)

Variations

White Outdoor 749-1087-0637

TUBE-DASH SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

?32

White Outdoor 731-2232

Intake Bellow
(Superseded to 731-2232A)

Note: (Kohler and Intek Single)

$

$

Not available

33

White Outdoor 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

34

White Outdoor 751-0658A

Fuel Tank, 3-gallon

$

$

Not available

35

White Outdoor 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

White Outdoor 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

36

White Outdoor 746-1085

Choke Cable
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

37

White Outdoor 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

38

White Outdoor 731-2272

Heat Shield

$

$

Not available

39

White Outdoor 783-1000

Grille Support Bracket
(Superseded to 783-1000A)

Variations

White Outdoor 783-1000-0637

BRACKET-GRILLE SUP - POWDER BLACK (0637)

$

$

Not available

$

$
