LT-1800 (13AT606H190) - White Outdoor 46" Lawn Tractor (2000) Steering Assembly Parts Diagram

46" Lawn Tractor

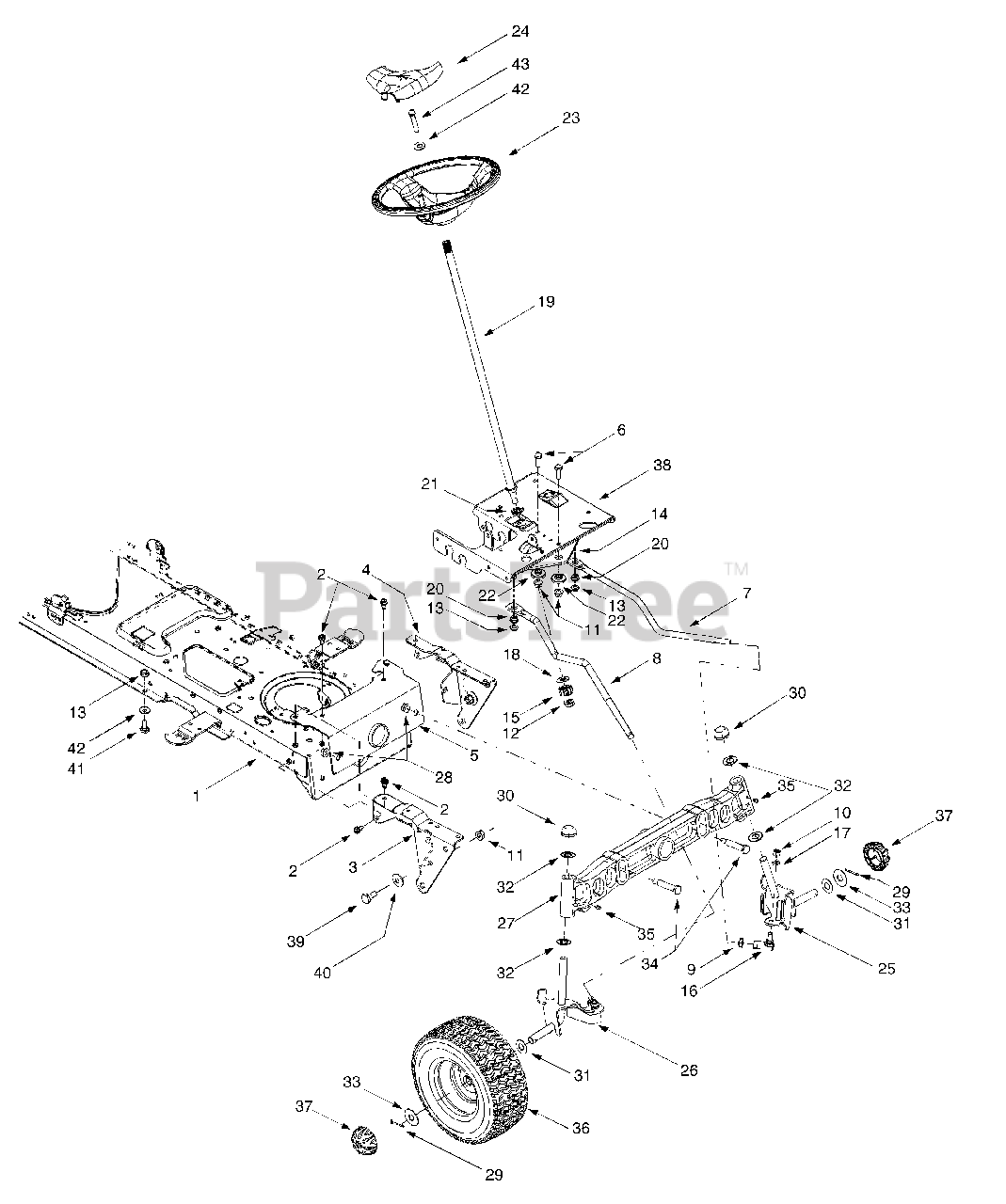

Steering Assembly Parts Diagram

  • Title

1

White Outdoor 683-0304

Lower Frame Assembly

Variations

White Outdoor 683-0304-0637

LOWER FRAME ASSY POWDER BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-0304-0650

LOWER FRAME ASSY POWDER BLACK - RED METALLIC (0650)

$

$

Not available

White Outdoor 683-0304-0665

LOWER FRAME ASSY POWDER BLACK - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 683-0304-0691

LOWER FRAME ASSY POWDER BLACK - BLACK JACK (0691)

$

$

Not available

$

$

2

White Outdoor 710-0604A

Self-tapping Screw, 16-18 x .625

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 783-0726A

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

White Outdoor 783-0726A-0637

BRACKET:PIVOT SUPPORT RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0726A-0650

BRACKET:PIVOT SUPPORT RH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0726A-0691

BRACKET:PIVOT SUPPORT RH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0726A-0665

BRACKET:PIVOT SUPPORT RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

White Outdoor 783-0727

LH Pivot Support Bracket
(Superseded to 783-0727D)

Variations

White Outdoor 783-0727-0650

BRACKET:PIVOT:SUPPORT LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0727-0691

BRACKET:PIVOT:SUPPORT LH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0727-0637

USE 783-0727C BRKT:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0727-0665

BRACKET:PIVOT:SUPPORT LH - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

White Outdoor 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

White Outdoor 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

White Outdoor 710-0514

Hex Cap Screw, 3/8-16 x 1 (Grade 5)

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 711-1409

LH Drag Link
(Superseded to 711-1409A)

$

$

Not available

8

White Outdoor 711-1408

RH Drag Link

$

$

Not available

9

White Outdoor 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 712-0241

Hex Nut, 3/8-24 (Grade 2)

$4.49

$

In Stock, Qty 13

0

11

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

White Outdoor 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 717-1550A

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

15

White Outdoor 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

White Outdoor 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

17

White Outdoor 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 738-1001A

Steering Shaft, .625 OD x 24.4

$75.99

$

In Stock, Qty 5

0

20

White Outdoor 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

22

White Outdoor 738-0372

Shoulder Spacer, .38 ID
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 20+

0

23

White Outdoor 731-2295

Soft Touch Steering Wheel
(Superseded to 931-2295)

$

$

Not available

24

White Outdoor 731-2296

Steering Wheel Insert

$

$

Not available

25

White Outdoor 638-0021

LH Axle Assembly, .625 / .750 Diameter
(Superseded to 938-0021)

$103.99

$

In Stock, Qty 5

0

26

White Outdoor 638-0022

RH Axle Assembly, .625 / .750 Diameter
(Superseded to 938-0022)

$99.99

$

In Stock, only 1 left!

0

27

White Outdoor 719-0525B

Cast Iron Pivot Bar
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

28

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

29

White Outdoor 714-0470

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 726-0341

Push Cap, .750

$4.99

$

In Stock, Qty 20+

0

31

White Outdoor 736-0162

Flat Washer, .64 x 1.0 x .12

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 736-0316

Flat Washer, .78 x 1.59 x .06

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 736-0285

Flat Washer, .635 x 1.589 x .06

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 738-1011

Shoulder Screw, .5 x 2.2, 3/8-16
(Superseded to 738-1011A)

$8.49

$

In Stock, Qty 11

0

35

White Outdoor 737-3000

Lube Fitting, 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

36

White Outdoor 634-0115

Wheel Assembly Complete, 15 x 6 x 6

Variations

White Outdoor 634-0115-0911

WHEEL ASSY-COMP - Carlisle Gray (0911)

$

$

Not available

White Outdoor 634-0115-0916

WHEEL ASSY-COMP - Kenda Gray (0916)

$

$

Not available

White Outdoor 634-0115-0914

No Longer Available -0911 WHEEL ASM - Cheng Gray (0914)

$

$

Not available

White Outdoor 634-0115-0931

WHEEL ASSY-COMP - Carlisle Beige (0931)

$

$

Not available

$

$

White Outdoor 634-0051

Rim Only w/ Ball Bearing

Variations

White Outdoor 634-0051-0629

WHEEL RIM 6 X 4.5 - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 634-0051-0662

WHEEL RIM 6 X 4.5 - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 634-0051-0499

WHEEL RIM 6 X 4.5 - CUB BEIGE (0499)

$

$

Not available

White Outdoor 634-0051-0674

WHEEL RIM 6 X 4.5 - YARDMAN YELLOW (0674)

$

$

Not available

$

$

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

White Outdoor 734-1731

Tire Only, Square Shoulder

Variations

White Outdoor 734-1731-0901

TIRE SQUARE TREAD 15 X 5 - Carlisle (0901)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0902

TIRE 15 X 6 DICO-M - Dico (0902)

$44.99

$

In Stock, only 2 left!

0

White Outdoor 734-1731-0904

TIRE SQUARE TREAD 15 X 5 - Cheng (0904)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0905

TIRE 15 X 6 - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1731-0906

TIRE 15 X 6 KENDA - Kenda (0906)

$49.99

$

Usually ships in 3-6 days

0

$111.99

$

In Stock, only 1 left!

0

37

White Outdoor 731-2290

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 783-0653A

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

White Outdoor 783-0653A-0498

Steering Support Bracket - OLD CUB YELLOW (0498)

$89.99

$

In Stock, only 3 left!

0

White Outdoor 783-0653A-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

White Outdoor 783-0653A-0665

Steering Support Bracket - YARDMAN GREEN (0665)

$89.99

$

In Stock, only 3 left!

0

White Outdoor 783-0653A-0691

Steering Support Bracket - BLACK JACK (0691)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

39

White Outdoor 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 738-0140

Shoulder Screw, .435 x .178, 5/16 x .56

$5.99

$

In Stock, Qty 15

0

42

White Outdoor 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 710-0643

Hex Bolt, 5/16-18 X 1

$6.99

$

In Stock, Qty 5

0
