LT-1800 (13A2606G790) - White Outdoor 46" Lawn Tractor (2004) Transaxle Parts Diagram

46" Lawn Tractor

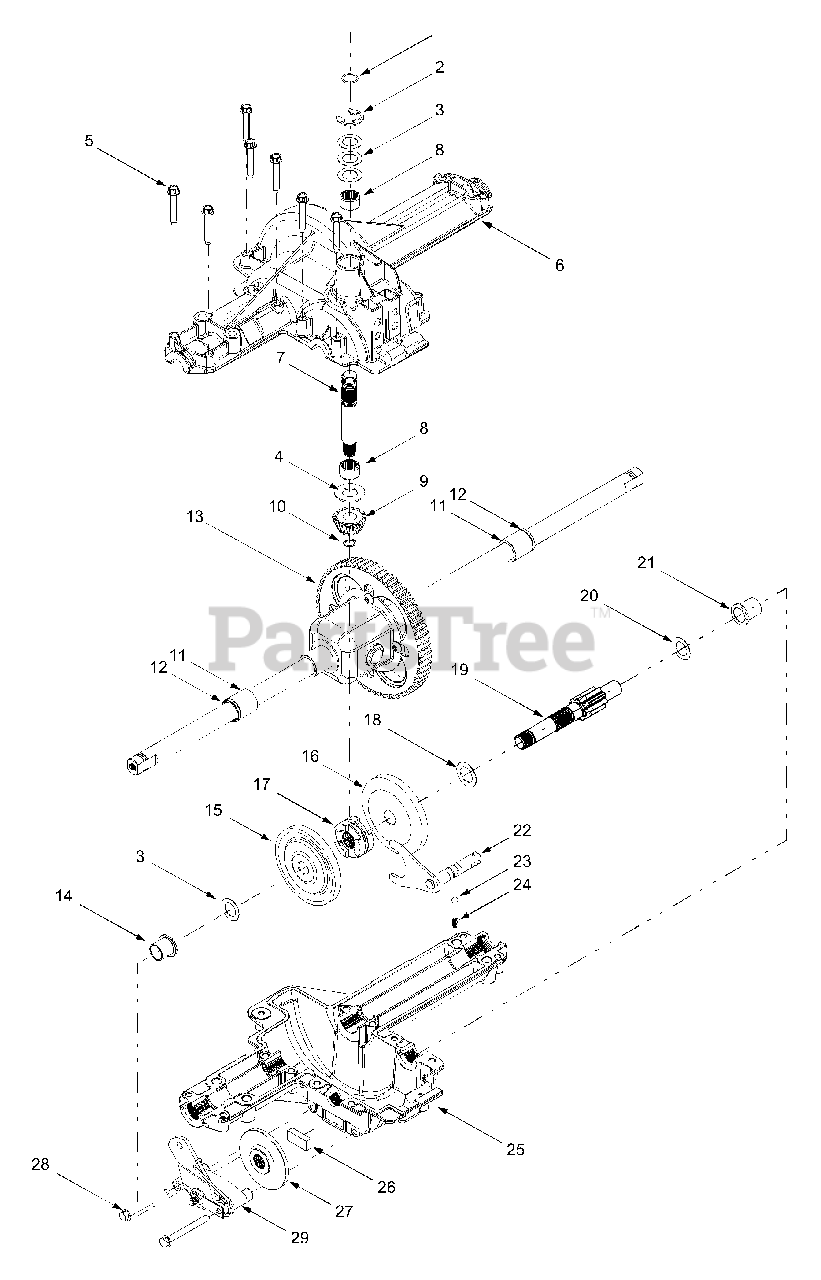

Transaxle Parts Diagram

  • Title

1

White Outdoor 732-0614

Ring, Wire

$6.49

$

In Stock, only 2 left!

0

2

White Outdoor 716-0231

Ring, E Type, .750

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 736-0336

Flat Washer, 5/8 x 1.0 x .030
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

White Outdoor 736-0337

Flat Washer, 5/8 x 1.0 x .040

$4.49

$

In Stock, Qty 9

0

White Outdoor 736-0349

Flat Washer, 5/8 x 1.0 x .020

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 736-0335

Washer, Thrust .635 x 1.26 x .06

$6.99

$

In Stock, Qty 8

0

5

White Outdoor 710-1325

Self-Tapping Screw, 1/4-20 x 1.625

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 719-04017

Upper Housing
(Superseded to 918-04168)

$

$

Not available

7

White Outdoor 711-1109

Input Shaft

$37.99

$

In Stock, only 1 left!

0

8

White Outdoor 741-0335

Needle Bearing, .625 x .813 x .495
(Superseded to 941-0335)

$18.99

$

In Stock, only 4 left!

0

9

White Outdoor 717-1464

14-tooth Bevel Pinion

$22.99

$

In Stock, only 2 left!

0

10

White Outdoor 716-0108

Retaining Ring, .437

$5.49

$

Usually ships in 3-6 days

0

11

White Outdoor 741-0340

Sleeve Bearing, .75 x .1.0 x 1.0
(Superseded to 741-05060)

$8.99

$

In Stock, Qty 11

0

12

White Outdoor 721-0338

Seal, .75 x 1.0 x .125
(Superseded to 921-0338)

$7.49

$

In Stock, Qty 20+

0

13

White Outdoor 618-04041

Differential Assembly
(Superseded to 918-04096A)

$

$

Not available

14

White Outdoor 741-0336

Flange Bearing, 5/8 x 3/4 x 3/4
(Superseded to 941-0336)

$11.99

$

In Stock, only 2 left!

0

15

White Outdoor 717-1362

42-tooth Bevel Gear
(Superseded to 917-1362)

$51.99

$

In Stock, only 1 left!

0

16

White Outdoor 717-1363

42-tooth Bevel Gear
(Superseded to 917-1363)

$51.99

$

Usually ships in 3-6 days

0

17

White Outdoor 718-0228

Clutch Collar

$25.99

$

In Stock, only 1 left!

0

18

White Outdoor 736-0519

Flat Washer, .70 x 1.125 x .031

$5.49

$

In Stock, only 2 left!

0

19

White Outdoor 711-04053

Drive Shaft
(Superseded to 918-04079)

$127.99

$

In Stock, only 2 left!

0

20

White Outdoor 736-0495

Thrust Washer, 1.0 x .632 x .0

$4.49

$

In Stock, only 2 left!

0

21

White Outdoor 741-0337

Flange Bearing, 5/8 x 3/4 x 15/16
(Superseded to 941-0337)

$10.99

$

In Stock, Qty 6

0

22

White Outdoor 611-0011

Detent Shaft Assembly
(Superseded to 911-0011)

$42.99

$

In Stock, only 3 left!

0

23

White Outdoor 741-0862

Detent Ball

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 732-0863

Compression Spring
(Superseded to 932-0863)

$4.49

$

In Stock, only 2 left!

0

25

White Outdoor 719-04018

Lower Housing
(Superseded to 919-04018)

$93.99

$

In Stock, only 2 left!

0

26

White Outdoor 717-0678

Brake Puck
(Superseded to 917-0678)

$7.49

$

In Stock, only 3 left!

0

27

White Outdoor 761-0202

Brake Disc

$15.99

$

In Stock, only 1 left!

0

28

White Outdoor 710-1206

Self-Tapping Screw, 1/4-20 x 2.375

$7.49

$

In Stock, Qty 6

0

29

White Outdoor 661-0001

Brake Assembly
(Superseded to 961-0001)

$57.99

$

Usually ships in 3-6 days

0

White Outdoor 737-0148

Grease (19 oz.)
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0
