LT-1800 (13A2606G790) - White Outdoor 46" Lawn Tractor (2004) Deck Assembly Parts Diagram

46" Lawn Tractor

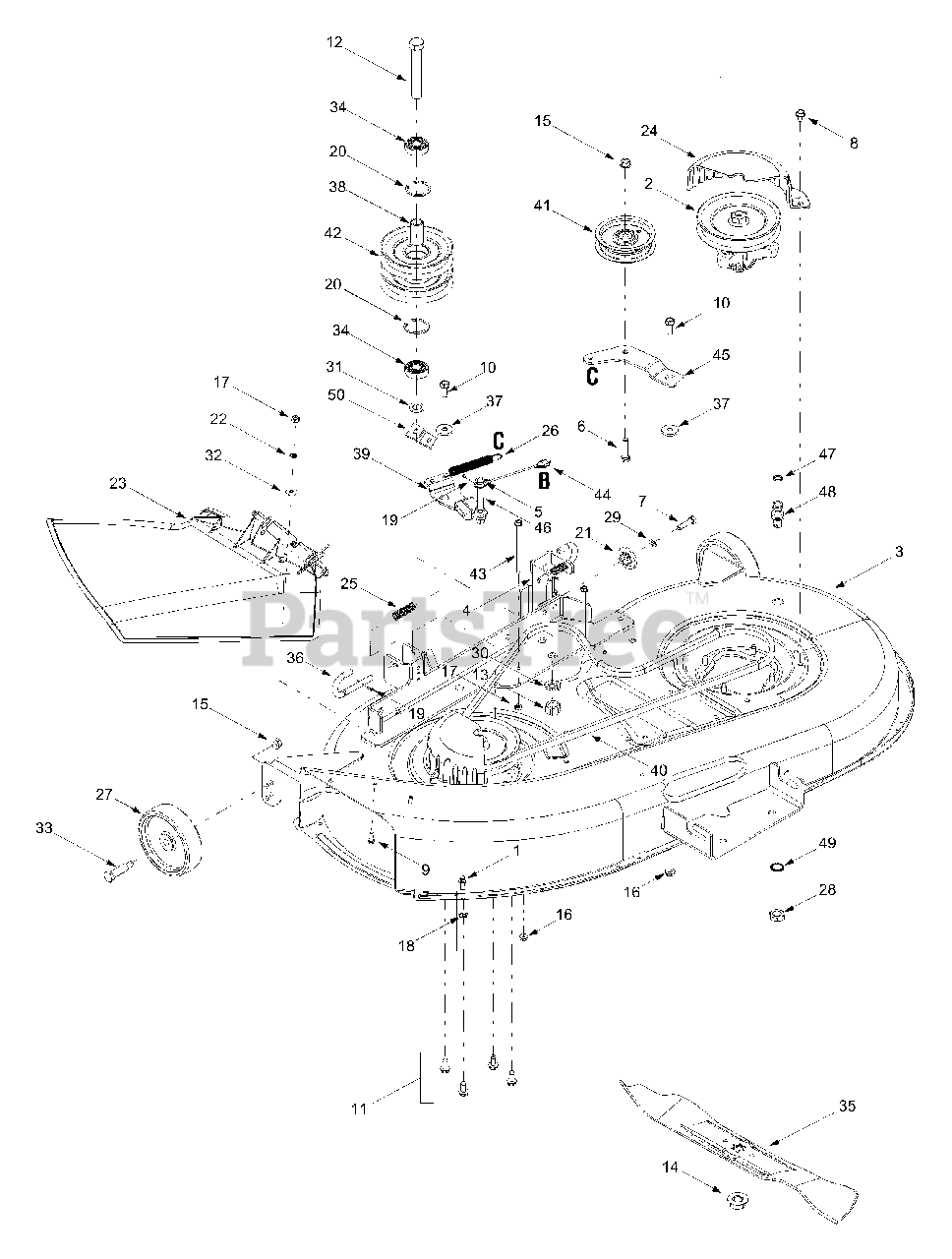

Deck Assembly Parts Diagram

  • Title

1

White Outdoor 711-04069

Grass Catcher Pin, 1/4-20
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

2

White Outdoor 618-0574

Spindle Assembly, 5.75 Dia. w/ Fitting
(Superseded to 918-0574C)

$

$

Not available

White Outdoor 756-0980

Pulley Only

$

$

Not available

3

White Outdoor 683-04051A

42-inch Deck Shell
(Superseded to 983-04051A)

Variations

White Outdoor 683-04051A-0606

SHELL ASSY-42" W/NOZZLE - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 683-04051A-0716

SHELL ASSY-42" W/NOZZLE - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 683-04051A-0637

DECK SHELL ASSEMBLY 42" BLACK - POWDER BLACK (0637)

$

$

Not available

White Outdoor 683-04051A-0650

DECK SHELL ASSEMBLY 42" RED - RED METALLIC (0650)

$

$

Not available

$

$

4

White Outdoor 683-0254

Deck Adjustment Bracket w/ Weld Nut
(Superseded to 683-0254B)

Variations

White Outdoor 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0254-0650

BRACKET ASSY-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254-0665

BRACKET ASSY-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

5

White Outdoor 736-0140

Flat Washer, .385 x .62 x .063

$7.49

$

In Stock, Qty 7

0

6

White Outdoor 710-0520

Hex Cap Screw, 1/4-20 x 1.5

$4.49

$

In Stock, Qty 6

0

7

White Outdoor 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0726

Self-Tapping Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-1238

Hex Head Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0650

Self-Tapping Screw, 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 710-3151

Hex Cap Screw, 5/8-18 x .875

$20.99

$

In Stock, Qty 12

0

13

White Outdoor 712-0337

Hex Nut, 5/8-18

$4.49

$

In Stock, only 4 left!

0

14

White Outdoor 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-0130

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 11

0

16

White Outdoor 712-0429

Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

18

White Outdoor 712-0324

Hex Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

19

White Outdoor 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 716-3020

Internal Snap Ring
(Superseded to 916-3020)

$4.99

$

In Stock, Qty 20+

0

21

White Outdoor 717-04074

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 14

0

22

White Outdoor 726-0233

Push Nut. .25 x .5

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 731-1032B

Side Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

24

White Outdoor 731-2486

Belt Cover
(Superseded to 731-2486A)

$22.99

$

In Stock, only 1 left!

0

25

White Outdoor 732-0306A

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

26

White Outdoor 732-0470A

Extension Spring, .50 x 4.74
(Superseded to 932-0470A)

$9.99

$

In Stock, only 4 left!

0

27

White Outdoor 734-0973

Deck Wheel, 5 x 1.38

$12.99

$

In Stock, Qty 20+

0

28

White Outdoor 712-0641

Hex Nut, M-16 x 1.5

$6.49

$

In Stock, Qty 7

0

29

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0158

Lock Washer, 5/8

$4.49

$

In Stock, Qty 11

0

31

White Outdoor 736-0162

Flat Washer, .64 x 1.0 x .12

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 738-0373

Shoulder Screw, .498 x 1.53
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

34

White Outdoor 741-0524

Bearing, .625 x 1.574 x .470
(Superseded to 941-0524A)

$23.99

$

In Stock, Qty 20+

0

35

White Outdoor 742-0616A

Three-in-one Blade, Star Center, 21.23"
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

36

White Outdoor 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

37

White Outdoor 748-0331

Shoulder Spacer, .625 x .324
(Superseded to 948-0331)

$

$

Not available

38

White Outdoor 750-0932A

Spacer, .635 x .88 x 1.72
(Superseded to 950-0932A)

$20.99

$

In Stock, Qty 11

0

39

White Outdoor 683-0440

Deck Brake Assembly

$53.99

$

In Stock, only 3 left!

0

40

White Outdoor 754-0498

Deck Belt
(Superseded to 954-0498)

$44.99

$

In Stock, Qty 8

0

41

White Outdoor 756-0627B

Idler Pulley, 3.5
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

42

White Outdoor 756-1202

Double Pulley, 5.0

$95.99

$

In Stock, only 2 left!

0

43

White Outdoor 710-1830

Self-Tapping Screw, 1/4-20 x 4.0

$7.99

$

In Stock, only 1 left!

0

44

White Outdoor 746-0970

Brake Cable, 5.05

$12.99

$

In Stock, only 4 left!

0

45

White Outdoor 783-1291

Idler Bracket
(Superseded to 783-1291A-0637)

Variations

White Outdoor 783-1291-0637

Idler Bracket - POWDER BLACK (0637)

$12.99

$

In Stock, only 3 left!

0

$12.99

$

In Stock, only 3 left!

0

46

White Outdoor 711-1534

Pin, 3/8-16, 3/8 x 3.27

$12.99

$

Usually ships in 3-6 days

0

48

White Outdoor 737-04003B

Water Nozzle
(Superseded to 737-04003D)

$23.99

$

In Stock, Qty 6

0

White Outdoor 721-04041

Water Nozzle Adapter
(Superseded to 921-04041)

Note: (Not shown)

$23.99

$

In Stock, Qty 20+

0

49

White Outdoor 736-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 7

0

50

White Outdoor 783-04013A

Stab. Bracket: Pulley

Variations

White Outdoor 783-04013A-0637

Stabilizer Bracket - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

White Outdoor 783-04013A-4008

Stabilizer Bracket - WINE RED (4008)

$22.99

$

Usually ships in 3-6 days

0

$17.99

$

Usually ships in 3-6 days

0
