LT-175 (13AD696G190) - White Outdoor 42" Lawn Tractor (1999) Hood And Fender Assembly Parts Diagram

42" Lawn Tractor

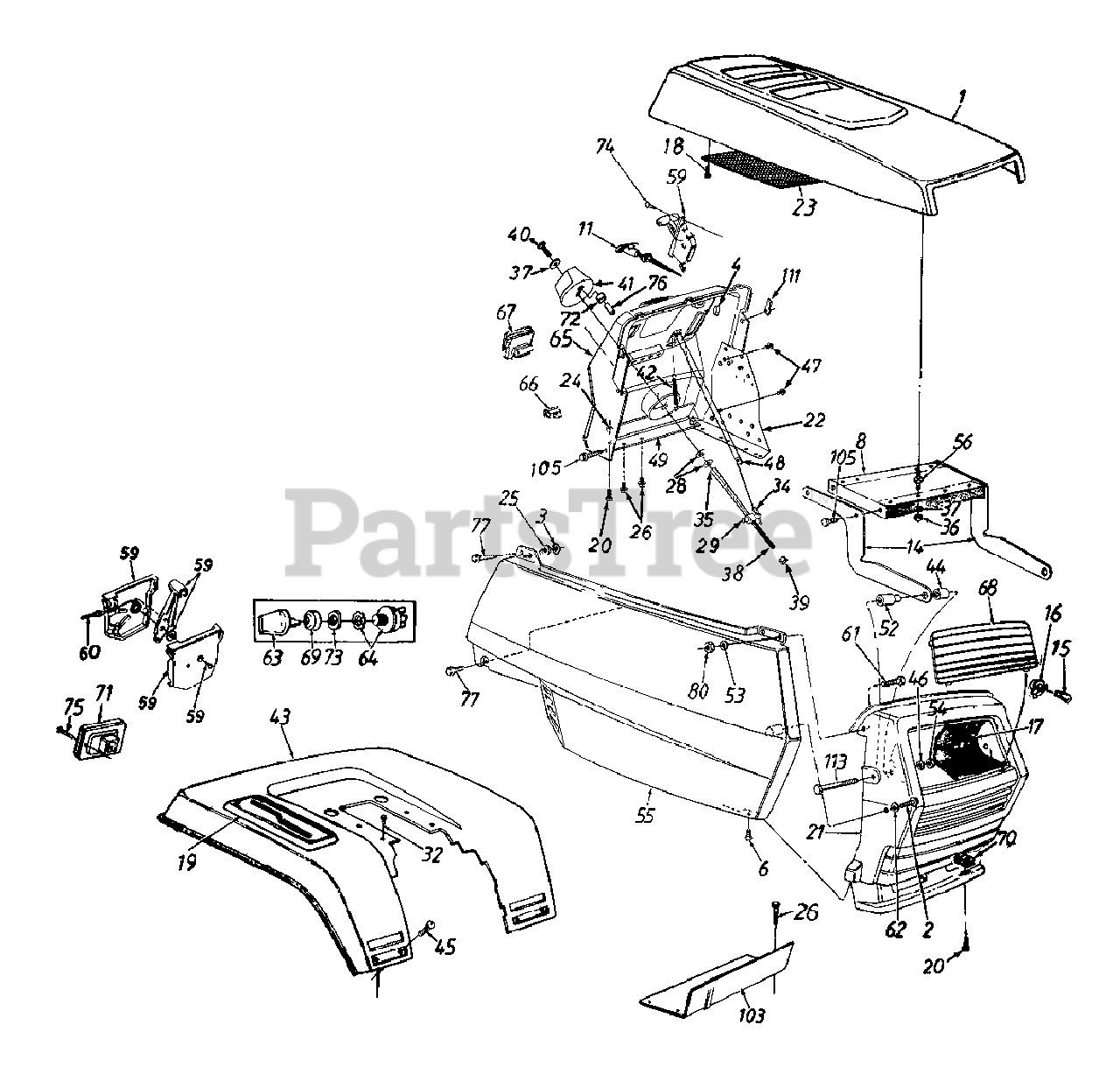

Hood And Fender Assembly Parts Diagram

  • Title

1

White Outdoor 731-1429

Hood
(Superseded to 931-1429)

$

$

Not available

2

White Outdoor 710-0896

Hex Wash. B-Tap Scr. 1/4 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 17782

Retainer Clip

$

$

Not available

6

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

8

White Outdoor 16903A

Hood Plate

Variations

White Outdoor 16903A-0637

PLATE-HOOD - POWDER BLACK (0637)

$

$

Not available

$

$

11

White Outdoor 746-3021

Choke Control

$26.99

$

Usually ships in 3-6 days

0

14

White Outdoor 16902A

Hood Hinge

Variations

White Outdoor 16902A-0637

No Longer Available HINGE-HOOD - POWDER BLACK (0637)

$

$

Not available

$

$

15

White Outdoor 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

16

White Outdoor 725-1649

Twist Lock - Lamp Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

17

777-8516

Reflector - Headlight

$

$

Not available

18

White Outdoor 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 731-1647

Speed Selector Plate

$

$

Not available

20

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 731-1430B

Grille
(Superseded to 931-1430B)

$

$

Not available

22

White Outdoor 17300D

Dash Support Bracket

Variations

White Outdoor 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

23

White Outdoor 723-0416

Screen

$

$

Not available

24

White Outdoor 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.99

$

Usually ships in 3-6 days

0

25

White Outdoor 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

26

White Outdoor 710-0607

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5"

$6.99

$

In Stock, Qty 11

0

?27

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

28

White Outdoor 736-0267

Fl-Wash. 3/8" I.D. x .875" O.D.

$4.49

$

In Stock, Qty 20+

0

29

White Outdoor 711-1002

Adj. Ferrule 3/8-8 Thd.

$

$

Not available

32

UNKNOWN

$

$

Not available

?33

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 714-0101

Hairpin Clip

$4.99

$

In Stock, only 2 left!

0

35

White Outdoor 716-0125

"E"-Ring .375" Dia.
(Superseded to 916-0125)

$

$

Not available

36

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

37

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor 747-0898

Adjustment Rod

$

$

Not available

39

White Outdoor 712-0449

Hex Nut 3/8-8 Twin Thd.

$

$

Not available

40

White Outdoor 710-3015

Hex Bolt 1/4-20 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

41

White Outdoor 720-0236

Plastic Knob
(Superseded to 920-0236)

$18.99

$

Usually ships in 3-6 days

0

42

White Outdoor 732-0732

Ext. Spring 3.21" Lg.

$

$

Not available

43

White Outdoor 783-0329A

Rear Fender

Variations

White Outdoor 783-0329A-0648

No Longer Available FENDER-STYLE 6 600 - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0329A-0650

FENDER-STYLE 6 600 - RED METALLIC (0650)

$

$

Not available

$

$

44

White Outdoor 750-0755

Spacer .33" I.D. x .625" O.D.

$4.49

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

47

White Outdoor 710-0599

Hex Wash. Hd. Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 727-0460A

Indicator Strip
(Superseded to 927-0460A)

$

$

Not available

49

White Outdoor 783-0120

Indicator Bracket

Variations

White Outdoor 783-0120-0637

BRACKET-INDICATOR - POWDER BLACK (0637)

$

$

Not available

$

$

52

White Outdoor 750-0754

Shld. Spacer .33" I.D.

$

$

Not available

53

White Outdoor 736-0142

Fl-Wash. .281" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

54

White Outdoor 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

55

White Outdoor 731-1890

Side Cover - R.H.

$

$

Not available

White Outdoor 731-1891

Side Cover - L.H.

$

$

Not available

56

White Outdoor 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

59

White Outdoor 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

60

White Outdoor 746-0775

Throttle Control Wire 35" Lg.

$16.99

$

Usually ships in 3-6 days

0

61

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

62

White Outdoor 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

63

White Outdoor 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

64

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

65

White Outdoor 731-1510

Dash Panel
(Superseded to 931-1510)

$

$

Not available

66

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

67

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

68

White Outdoor 731-1038A

Lens
(Superseded to 931-1038A)

$

$

Not available

69

White Outdoor 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

70

White Outdoor 726-0211

U-Nut 5/16-18 Thd.

$4.49

$

In Stock, only 1 left!

0

71

White Outdoor 725-1729

Taillight

$

$

Not available

72

White Outdoor 750-0526

Spacer

$4.99

$

In Stock, only 1 left!

0

73

White Outdoor 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

White Outdoor 710-0779A

Truss Mach. AB-Tap Scr. #10 x.5" Lg.

$4.49

$

In Stock, Qty 12

0

75

White Outdoor 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

76

White Outdoor 732-0675

Ball Plunger

$

$

Not available

77

White Outdoor 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

80

White Outdoor 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

?94

White Outdoor 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

103

White Outdoor 17633A

Gasoline Tank Support

Variations

White Outdoor 17633A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

105

White Outdoor 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

111

White Outdoor 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

113

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75"

$4.49

$

In Stock, only 2 left!

0
