LT-175 (13A2683G790) - White Outdoor 42" Lawn Tractor (2004) Seat, Fender Assembly Parts Diagram

42" Lawn Tractor

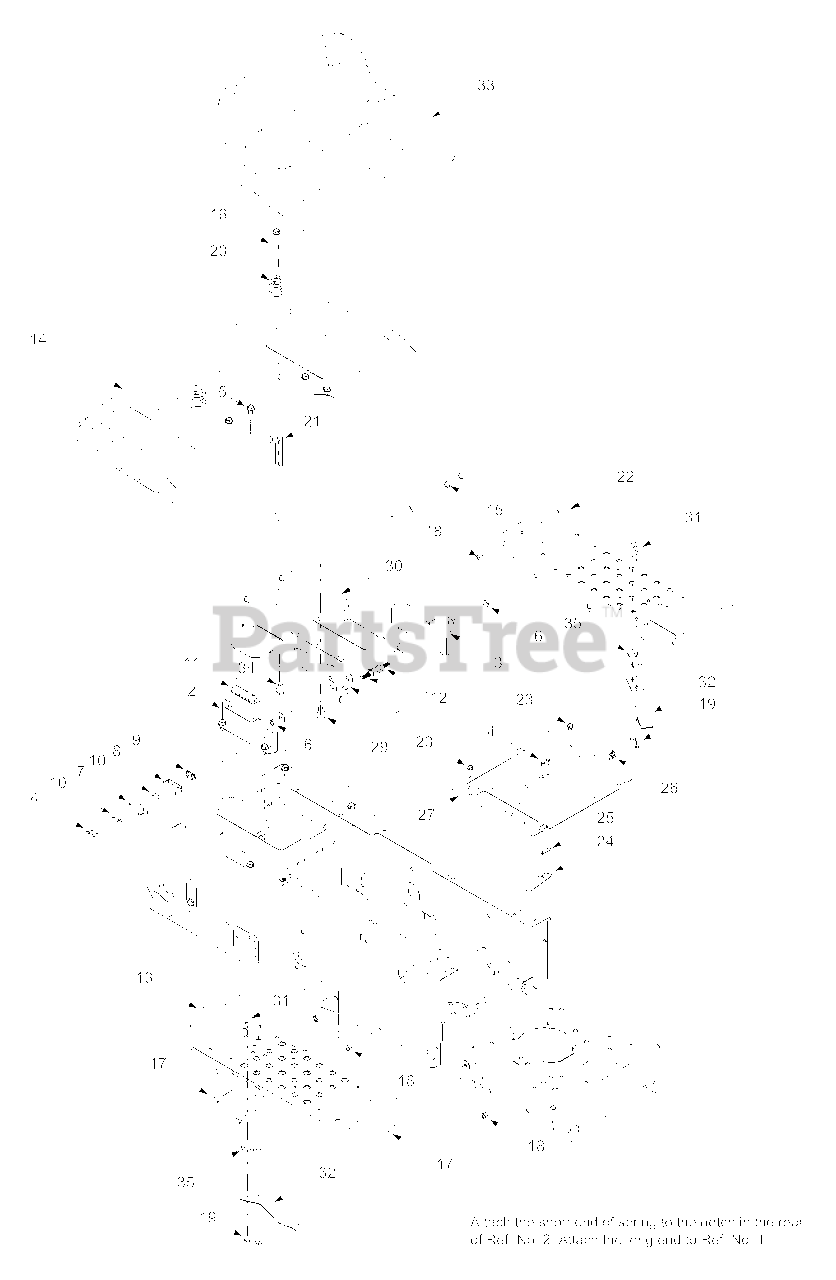

Seat, Fender Assembly Parts Diagram

  • Title

1

White Outdoor 17239C

Seat Lift Bracket

$

$

Not available

2

White Outdoor 17950A

RH Pivot Support Bracket, Seat
(Superseded to 17950A-0637)

Variations

White Outdoor 17950A-0637

Seat Support Bracket, RH - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

3

White Outdoor 17951A

LH Pivot Support Bracket, Seat
(Superseded to 17951A-0637)

Variations

White Outdoor 17951A-0637

Seat Support Bracket, LH - POWDER BLACK (0637)

$26.99

$

In Stock, only 1 left!

0

$26.99

$

In Stock, only 1 left!

0

4

White Outdoor 710-0227

Self-tapping Screw, #8-18 x .50

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0726

Self-tapping Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 712-0429

Hex Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 725-1303

Outer Seat Spring Switch
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

8

White Outdoor 725-1439

Inner Seat Spring Switch

$8.49

$

In Stock, Qty 10

0

9

White Outdoor 726-0278

Insulator Plate Boss

$6.99

$

In Stock, Qty 10

0

10

White Outdoor 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

11

White Outdoor 732-0581B

Extension Spring, .75 x 5.31
(Superseded to 932-0581B)

$14.99

$

In Stock, only 1 left!

0

12

White Outdoor 738-0296

Shoulder Screw, .437 x .286

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 17770H

Running Board

Variations

White Outdoor 17770H-0665

BOARD-RUNNING - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17770H-0637

BOARD-RUNNING - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17770H-0638

BOARD-RUNNING - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17770H-0650

BOARD-RUNNING - RED METALLIC (0650)

$

$

Not available

White Outdoor 17770H-0691

BOARD-RUNNING - BLACK JACK (0691)

$

$

Not available

White Outdoor 17770H-0709

BOARD-RUNNING - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

14

White Outdoor 17870C

Fender

Variations

White Outdoor 17870C-0480

FENDER-RR W/FRAME - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 17870C-0483

FENDER-RR W/FRAME - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 17870C-0498

FENDER-RR W/FRAME - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 17870C-0499

FENDER-RR W/FRAME - CUB BEIGE (0499)

$

$

Not available

White Outdoor 17870C-0629

FENDER-RR W/FRAME - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 17870C-0638

FENDER-RR W/FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 17870C-0648

FENDER-RR W/FRAME - TECH GRAY (0648)

$

$

Not available

White Outdoor 17870C-0650

FENDER-RR W/FRAME - RED METALLIC (0650)

$

$

Not available

White Outdoor 17870C-0662

FENDER-RR W/FRAME - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 17870C-0665

FENDER-RR W/FRAME - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 17870C-0667

FENDER-RR W/FRAME - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 17870C-0691

FENDER-RR W/FRAME - BLACK JACK (0691)

$

$

Not available

White Outdoor 17870C-0709

FENDER-RR W/FRAME - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

15

White Outdoor 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 710-1208

Self-tapping Screw, 5/16-18 x 3.5

$6.99

$

In Stock, only 2 left!

0

17

White Outdoor 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 712-0429

Nylon Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 712-3027

Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 732-04038

Compression Spring, 1.314 x 1.8
(Superseded to 932-04038)

$

$

Not available

21

White Outdoor 750-04212

Spacer

$

$

Not available

22

White Outdoor 783-04139A

LH Running Board

Variations

White Outdoor 783-04139A-0637

No Longer Available BOARD-RUNNING LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-04139A-0638

BOARD-RUNNING LH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-04139A-0650

BOARD-RUNNING LH - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-04139A-0662

BOARD-RUNNING LH - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-04139A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-04139A-0691

BOARD-RUNNING LH - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-04139A-0709

BOARD-RUNNING LH - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

23

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 725-1643

Spring Switch, Long

$10.99

$

In Stock, only 1 left!

0

25

White Outdoor 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

26

White Outdoor 726-3054

U-Clip Nut, 1/4-20

$4.99

$

Usually ships in 3-6 days

0

27

White Outdoor 783-04050A

Shift Cover Panel, 8-speed
(Superseded to 783-04050A-0637)

Variations

White Outdoor 783-04050A-0637

COVER-SHIFT 8SPD - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 710-0870

Screw, 3/8-16 x .625

$6.49

$

In Stock, only 1 left!

0

29

White Outdoor 738-04012

Shoulder Screw, .625 x .175, 3/8-16
(Superseded to 738-04012C)

$5.49

$

In Stock, Qty 12

0

30

White Outdoor 783-04081A

Seat Pivot Bracket, Manual Adjust

Variations

White Outdoor 783-04081A-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 783-04081A-4008

BRACKET-SEAT PIVOT - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-6 days

0

31

White Outdoor 710-0703

Carriage Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 761-0168B

Blade Spindle Brake Assembly
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

33

White Outdoor 757-04021

Low Back Seat, Black
(Superseded to 957-04037)

$240.99

$

In Stock, only 1 left!

0

34

White Outdoor 710-0870

Screw, 3/8-16 x .625

$6.49

$

In Stock, only 1 left!

0

35

White Outdoor 736-3008

Flat Washer, .344 x .750 x .120
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0
