LT-175 (13A2683G790) - White Outdoor 42" Lawn Tractor (2004) Hood Assembly Parts Diagram

42" Lawn Tractor

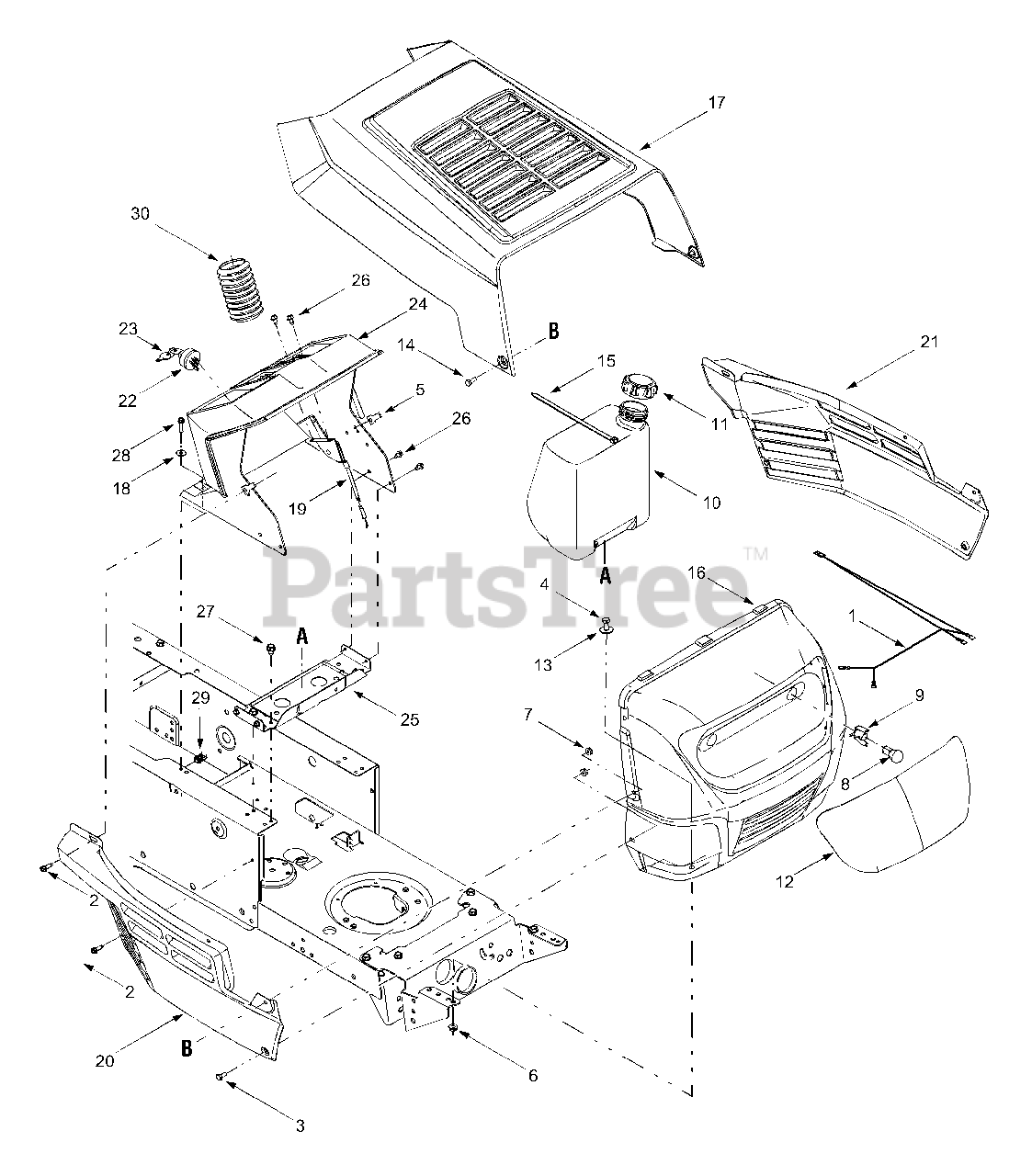

Hood Assembly Parts Diagram

  • Title

1

White Outdoor 629-0469B

Headlamp Harness Assembly
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-0642

Self-tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

4

White Outdoor 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 712-0185

U-type Speed Nut, 1/4-20

$

$

Not available

6

White Outdoor 712-0429

Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-0324

Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

8

White Outdoor 725-0963

Headlamp, 12V
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

9

White Outdoor 725-1651

Headlamp Socket
(Superseded to 925-1651)

$

$

Not available

10

White Outdoor 751-0555B

Fuel Tank, 1.5 gal.
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

11

White Outdoor 751-0603

Fuel Tank Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

12

White Outdoor 731-1503A

Lens
(Superseded to 753-06310)

$143.99

$

Usually ships in 3-6 days

0

12

White Outdoor 726-04077

Nut, Push 3/32

$

$

Not available

13

White Outdoor 736-3078

Flat Washer, .344 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 738-0952A

Shoulder Screw, 1/4-20 x .375 /.125
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

15

White Outdoor 726-0230

Cable Tie, 34.75

$27.99

$

In Stock, only 1 left!

0

16

White Outdoor 783-0156B

Grille
(Superseded to 783-04979)

Variations

White Outdoor 783-0156B-0499

GRILL - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0156B-0483

GRILL:2 STYLE - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0156B-0629

GRILL:2 STYLE - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0156B-0638

GRILLE STYLE 2 RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0156B-0662

GRILL:2 STYLE - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0156B-0665

GRILL:2 STYLE - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0156B-0667

GRILL:2 STYLE - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0156B-0674

GRILLE STYLE 2 YARD-MAN YELLOW - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-0156B-0687

GRILL:2 STYLE - PINE GREEN (0687)

$

$

Not available

White Outdoor 783-0156B-0689

GRILL:2 STYLE - POLO GREEN (0689)

$

$

Not available

White Outdoor 783-0156B-0691

GRILLE STYLE 2-BLACK - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0156B-0709

GRILL:2 STYLE - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-0156B-0717

GRILL:2 STYLE - SILVER MIST (0717)

$

$

Not available

$94.99

$

Usually ships in 3-6 days

0

17

White Outdoor 783-0250A

Hood w/ Louvers

Variations

White Outdoor 783-0250A-0480

HOOD-O STY LOUVER - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 783-0250A-0483

HOOD-O STY LOUVER - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0250A-0498

HOOD-O STY LOUVER - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 783-0250A-0499

HOOD-O STY LOUVER - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0250A-0629

HOOD-O STY LOUVER - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0250A-0638

HOOD-MTD RED - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0250A-0640

HOOD-O STY LOUVER - CO-OP GREEN (0640)

$

$

Not available

White Outdoor 783-0250A-0648

HOOD-O STY LOUVER - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0250A-0650

HOOD-O STY LOUVER - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0250A-0660

No Longer Available HOOD-O STY LOUVER - TEAL (0660)

$

$

Not available

White Outdoor 783-0250A-0662

HOOD-O STY LOUVER - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0250A-0663

No Longer Available HOOD-O STY LOUVER - CAYMEN GREEN (0663)

$

$

Not available

White Outdoor 783-0250A-0665

HOOD-O STY LOUVER - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0250A-0667

HOOD-O STY LOUVER - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0250A-0668

HOOD-O STY LOUVER - MOSS GREEN (0668)

$

$

Not available

White Outdoor 783-0250A-0674

No Longer Available HOOD-O STY LOUVER - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-0250A-0677

HOOD-O STY LOUVER - GRASS GREEN (0677)

$

$

Not available

White Outdoor 783-0250A-0686

No Longer Available HOOD-O STY LOUVER - SIMPLICITY ORANGE (0686)

$

$

Not available

White Outdoor 783-0250A-0687

HOOD-O STY LOUVER - PINE GREEN (0687)

$

$

Not available

White Outdoor 783-0250A-0688

No Longer Available HOOD-O STY LOUVER - SPRING GREEN (0688)

$

$

Not available

White Outdoor 783-0250A-0691

HOOD-O STY LOUVER - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0250A-0692

No Longer Available HOOD-O STY LOUVER - AGWAY BLUE (0692)

$

$

Not available

White Outdoor 783-0250A-0709

HOOD-O STY LOUVER - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-0250A-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

18

White Outdoor 736-3090

Flat Washer, .260 x .720 x .060

$6.99

$

In Stock, Qty 11

0

19

White Outdoor 746-04020A

Throttle / Choke Control, 18.5"

$39.99

$

In Stock, only 1 left!

0

20

White Outdoor 783-0150B

RH Side Panel

Variations

White Outdoor 783-0150B-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 783-0150B-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0150B-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0150B-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0150B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0150B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0150B-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0150B-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0150B-0660

No Longer Available - TEAL (0660)

$

$

Not available

White Outdoor 783-0150B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0150B-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

White Outdoor 783-0150B-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0150B-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0150B-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-0150B-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

White Outdoor 783-0150B-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

White Outdoor 783-0150B-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0150B-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

White Outdoor 783-0150B-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-0150B-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

21

White Outdoor 783-0151B

LH Side Panel

Variations

White Outdoor 783-0151B-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

White Outdoor 783-0151B-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 783-0151B-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

White Outdoor 783-0151B-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 783-0151B-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 783-0151B-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 783-0151B-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

White Outdoor 783-0151B-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

White Outdoor 783-0151B-0660

No Longer Available - TEAL (0660)

$

$

Not available

White Outdoor 783-0151B-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 783-0151B-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

White Outdoor 783-0151B-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 783-0151B-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

White Outdoor 783-0151B-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 783-0151B-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

White Outdoor 783-0151B-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

White Outdoor 783-0151B-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

White Outdoor 783-0151B-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

White Outdoor 783-0151B-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 783-0151B-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

22

White Outdoor 725-1396

Ignition Switch, 6-pin
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

23

White Outdoor 725-0201

Keys (pair)
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

24

White Outdoor 731-04179

Dash Panel
(Superseded to 931-04179)

$97.99

$

Usually ships in 3-6 days

0

25

White Outdoor 17632D

Battery Support Bracket

Variations

White Outdoor 17632D-0637

BRACKET-GAS TANK - POWDER BLACK (0637)

$

$

Not available

$

$

26

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 710-0607

Self-tapping Screw, 5/16-18 x .5

$6.99

$

In Stock, Qty 11

0

28

White Outdoor 710-0788

Self-tapping Screw, 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

29

White Outdoor 726-3054

U-type Speed Nut, 1/4-20

$4.99

$

Usually ships in 3-6 days

0

30

White Outdoor 731-0954

Steering Bellow, 4.75"
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0
