LT-1742 (13CD609G063) - Troy-Bilt 42" Lawn Tractor (2002) Engine Accessories Parts Diagram

42" Lawn Tractor

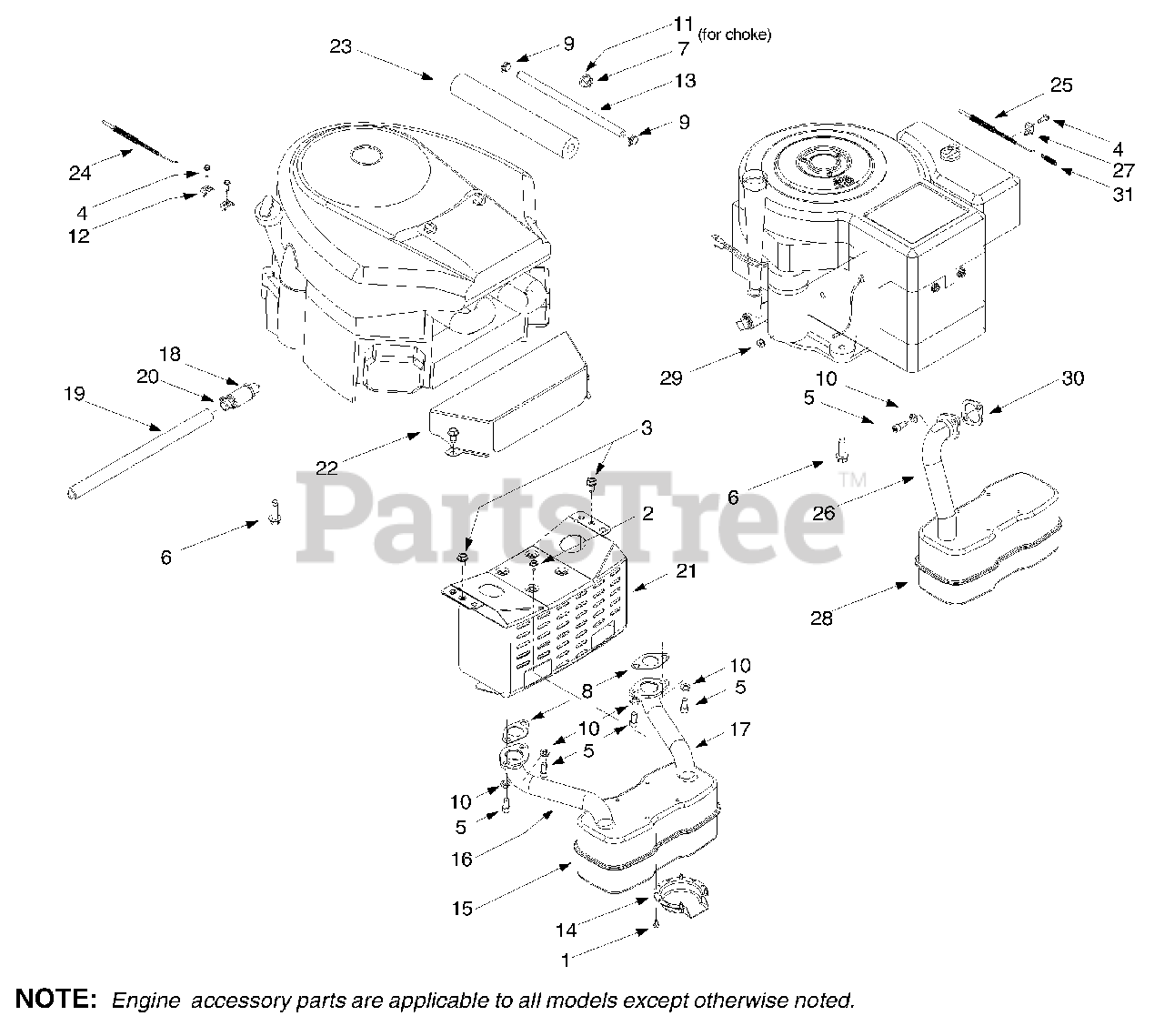

Engine Accessories Parts Diagram

  • Title

1

Troy-Bilt 710-0227

Self-tapping Screw, #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1237

Screw, #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 710-1314A

Socket Cap Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-3017

Hex Nut, 3/8-16 (Model G609G)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 721-0460

Exhaust Gasket (Model G609G)
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 736-0300

Flat Washer (Model G609G)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 751B221535

Casing Clamp (Model G609G)

$10.99

$

In Stock, Qty 10

0

13

Troy-Bilt 751-0535

Fuel Line Hose

$

$

Currently unavailable

14

Troy-Bilt 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 751-0616

Muffler, Twin Inlet (Model G609G)
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

16

Troy-Bilt 751-0650

RH Exhaust Pipe (Model G609G)
(Superseded to 751-0650B)

$63.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 751-0651

LH Exhaust Pipe (Model G609G)
(Superseded to 751-0651B)

$60.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 2 left!

0

19

Troy-Bilt 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

20

Troy-Bilt 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

21

Troy-Bilt 783-0615B

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

Troy-Bilt 783-0615B-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 783-0625C

Engine Heat Shield (Model G609G)

$111.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 722-0263

Foam (fits over fuel line)
(Superseded to 723-3066-24)

$16.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 746-1086

Throttle Cable (Model G609G)
(Superseded to 946-1086)

$33.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 746-1084

Throttle Cable (Model D609G)
(Superseded to 946-1084)

$32.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 751-0619

Exhaust Pipe (Model D609G)
(Superseded to 751-0619B)

$76.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 751B213146

Casing Clamp (Model D609G)
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

28

Troy-Bilt 751-0617

Muffler, Single Inlet (Model D609G)
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

29

Troy-Bilt 712-0271

Hex Sems Nut, 1/4-20 (for starter cable)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 721-0208

Exhaust Gasket (Model D609G)
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

31

UNKNOWN

$

$

Not available
