LT-1700 (13AV77TF090) - White Outdoor 38" Lawn Tractor (2010) Engine Accessories Parts Diagram

38" Lawn Tractor

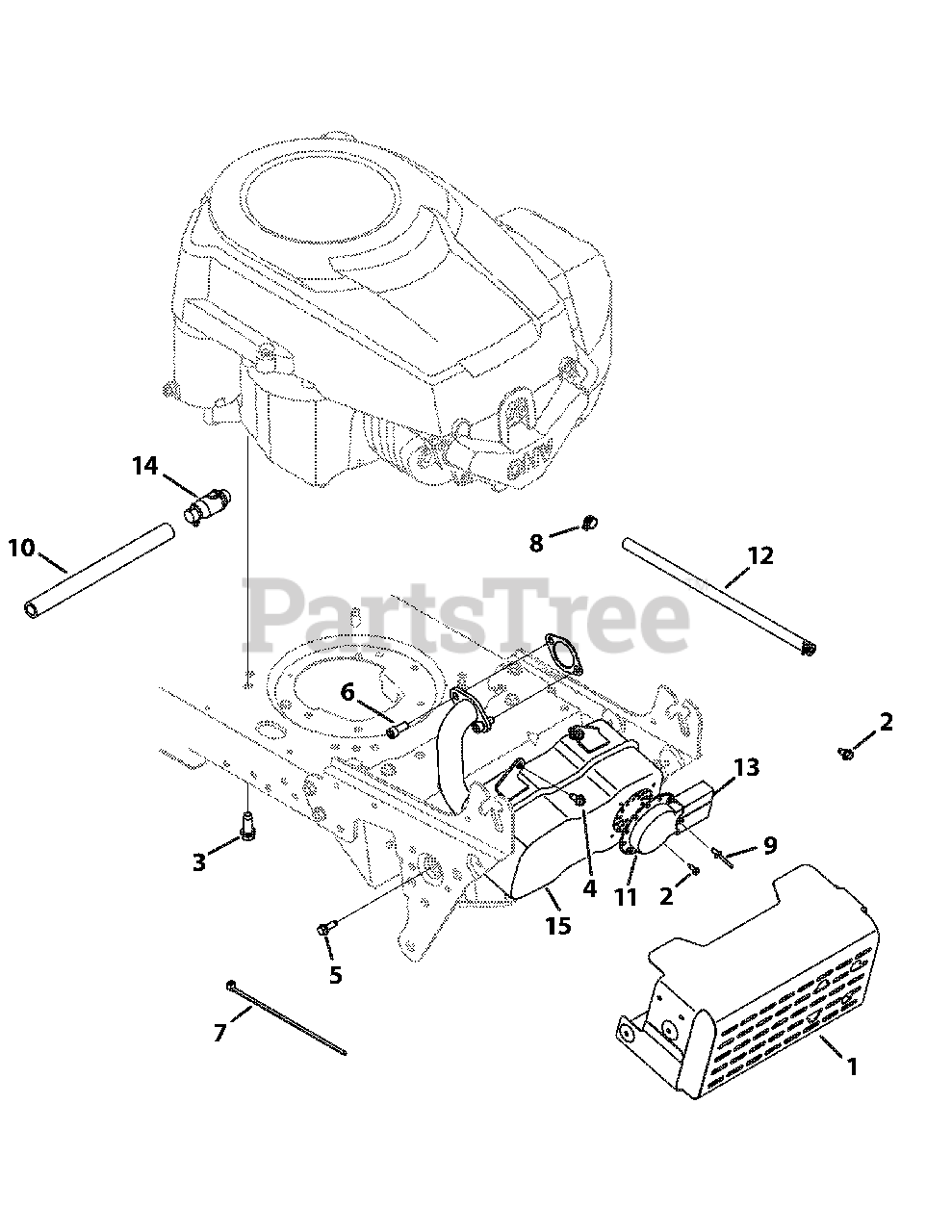

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 683-04549-0637

Muffler Shield Assembly with Weld
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 15

0

3

White Outdoor 710-04683

Screw, 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, only 3 left!

0

4

White Outdoor 710-0599

Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0642

Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-1314A

Socket Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

8

White Outdoor 726-0205

Clamp Hose, .490 diameter

$3.99

$

In Stock, Qty 18

0

9

White Outdoor 728-04000

Rivet, .188 x .300

$6.99

$

In Stock, Qty 7

0

10

White Outdoor 751-3141-14

Oil Drain, Extension Hose

$11.99

$

In Stock, Qty 8

0

11

White Outdoor 751-0564B

Muffler Deflector

$13.99

$

In Stock, Qty 5

0

12

White Outdoor 751-10349-28

Fuel Hose, Low Permeation

$41.99

$

In Stock, only 1 left!

0

13

White Outdoor 751-10353

Muffler Deflector Long
(Superseded to 751-11053B)

$5.49

$

In Stock, only 3 left!

0

14

White Outdoor 951-10517A

Oil Drain

$24.99

$

In Stock, only 1 left!

0

15

White Outdoor 751-11022

Muffler
(Superseded to 951-11022A)

$152.99

$

Usually ships in 3-6 days

0
