LT 17 A (954130086) - Jonsered Lawn Tractor (2003-01) SEAT Parts Diagram

Lawn Tractor

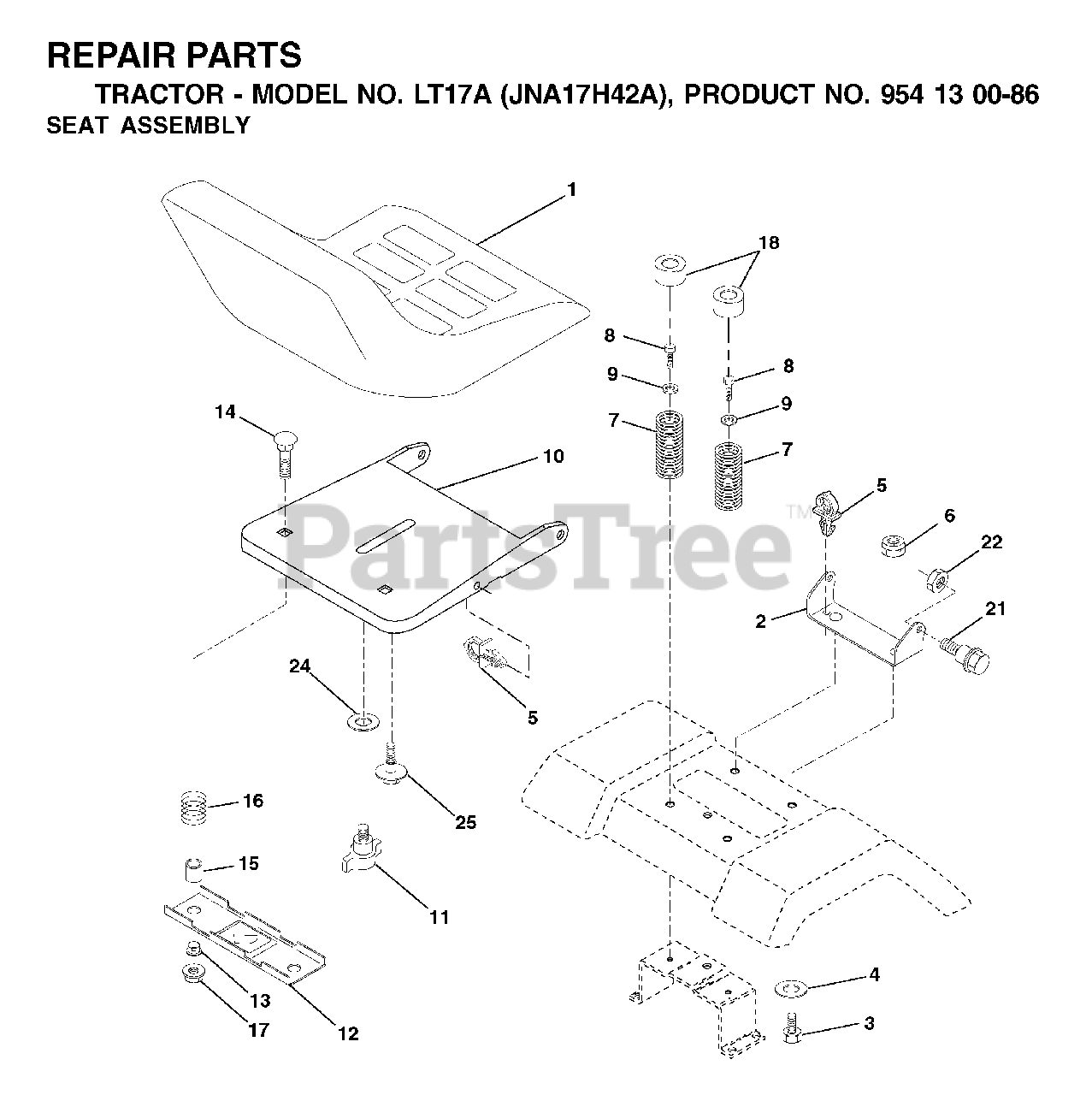

SEAT Parts Diagram

  • Title

1

Jonsered 532140118

No Description Available

$

$

Not available

2

Jonsered 532140551

SEAT PIVOT BRKT

$6.49

$

Usually ships in 3-10 days

0

3

Jonsered 871110616

No Description Available

$4.99

$

In Stock, only 2 left!

0

4

Jonsered 819131610

WASHER PM

$6.49

$

In Stock, Qty 7

0

5

Jonsered 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

6

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Jonsered 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 2 left!

0

9

Jonsered 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Jonsered 532182493

PAN SEAT
(Superseded to 532195530)

$21.99

$

Usually ships in 3-10 days

0

11

Jonsered 532166369

KNOB.SEAT.ADJ.WINGNUT

$10.99

$

In Stock, only 1 left!

0

12

Jonsered 532121246

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

13

Jonsered 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

14

Jonsered 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

15

Jonsered 532121249

SPACER SPLIT

$6.49

$

In Stock, only 2 left!

0

16

Jonsered 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 532123976

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

18

Jonsered 532124238

CAP SPRING

$

$

Not available

21

Jonsered 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

22

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

24

Jonsered 819171912

WASHER

$7.49

$

In Stock, only 1 left!

0

25

Jonsered 532127018

BOLT,SHOULD

$7.49

$

Usually ships in 3-10 days

0
