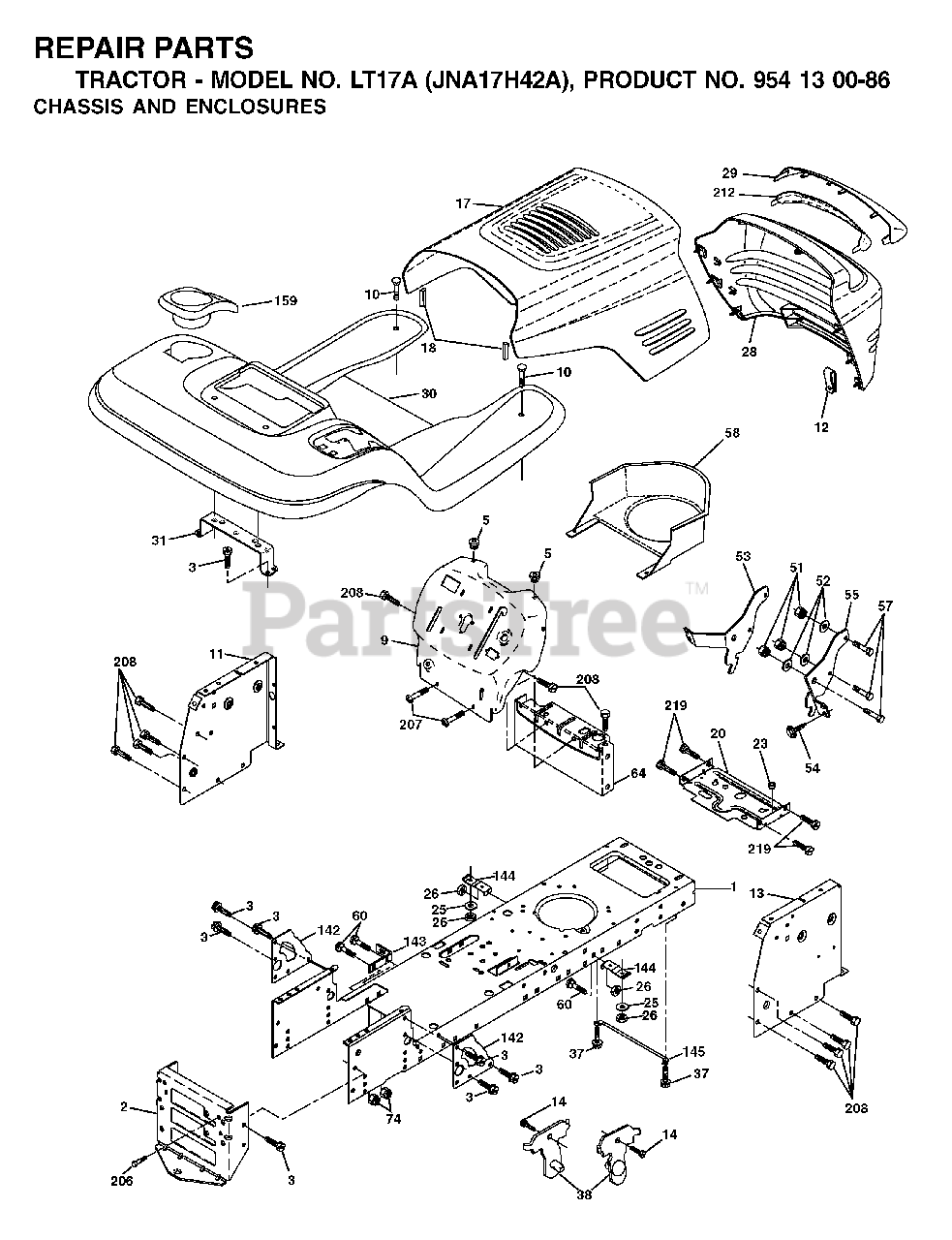

LT 17 A (954130086) - Jonsered Lawn Tractor (2003-01) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

CHASSIS ENCLOSURES Parts Diagram

  • Title
1

Jonsered 532174619

CHASSIS STAMPING
(Superseded to 579841401)

$433.99

$

Usually ships in 3-10 days

0

2

Jonsered 532176554

DRAWBAR, 12GA

$43.99

$

Usually ships in 3-10 days

0

3

Jonsered 817060612

SCREW 3/8-16X3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

5

Jonsered 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

9

Jonsered 532172294

No Description Available

$

$

Not available

10

Jonsered 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Jonsered 532174996

PANEL.DASH.LH.LTX
(Superseded to 174996)

$

$

Not available

$3.49

$

In Stock, only 1 left!

0

13

Jonsered 532172106

PANEL ASM, DASH RH

$18.99

$

Usually ships in 3-10 days

0

14

$6.49

$

Usually ships in 3-10 days

0

17

Jonsered 532159355

No Description Available

$

$

Not available

18

Jonsered 532126938

BUMPER HOOD T

$

$

Not available

20

Jonsered 532180679

PLATE MTG.BATTERY/FUEL TANK
(Superseded to 180679)

$11.99

$

Usually ships in 3-10 days

0

23

Jonsered 532124028

GROMMET T

$5.99

$

In Stock, only 3 left!

0

25

Jonsered 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 3 left!

0

26

Jonsered 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Jonsered 532179101

GRILL/LENS ASM.

$

$

Not available

29

Jonsered 532168154

No Description Available
(Superseded to 532140273)

$

$

Not available

30

Jonsered 532181353

No Description Available
(Superseded to 532442468)

$157.99

$

Usually ships in 3-10 days

0

31

$17.99

$

Usually ships in 3-10 days

0

37

$6.49

$

Usually ships in 3-10 days

0

38

Jonsered 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$11.99

$

Usually ships in 3-10 days

0

51

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

52

$6.49

$

Usually ships in 3-10 days

0

53

Jonsered 532144697

BRACKET.GRILLE.LH

$

$

Not available

$

$

Not available

55

$

$

Not available

57

Jonsered 874780412

BOLT
(Superseded to 874780416)

$6.49

$

Usually ships in 3-10 days

0

58

Jonsered 532150127

AIR DUCT P/L/LT

$

$

Not available

$

$

Not available

64

Jonsered 532154798

DASH LOWER
(Superseded to 154798)

$15.99

$

Usually ships in 3-10 days

0

74

Jonsered 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

142

Jonsered 532175702

PLATE REINFORCEMENT

$9.49

$

Usually ships in 3-10 days

0

143

Jonsered 532154966

BRACKET, SWAY BAR
(Superseded to 532186689)

$6.99

$

In Stock, only 2 left!

0

144

Jonsered 532175582

BRKT, FOOT REST

$7.49

$

Usually ships in 3-10 days

0

145

Jonsered 532156524

ROD PIVOT CHASSIS/HOOD
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

159

Jonsered 532181355

No Description Available
(Superseded to 532155123)

$

$

Not available

206

Jonsered 532170165

SHOULDER BOLT 5/16-18TT

$4.99

$

In Stock, Qty 5

0

207

Jonsered 817670508

SCREW, 5/16-18 X 1/2

$9.49

$

In Stock, only 2 left!

0

208

Jonsered 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

212

Jonsered 532156229

No Description Available
(Superseded to 532174503)

$26.99

$

Usually ships in 3-10 days

0

219

Jonsered 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0
