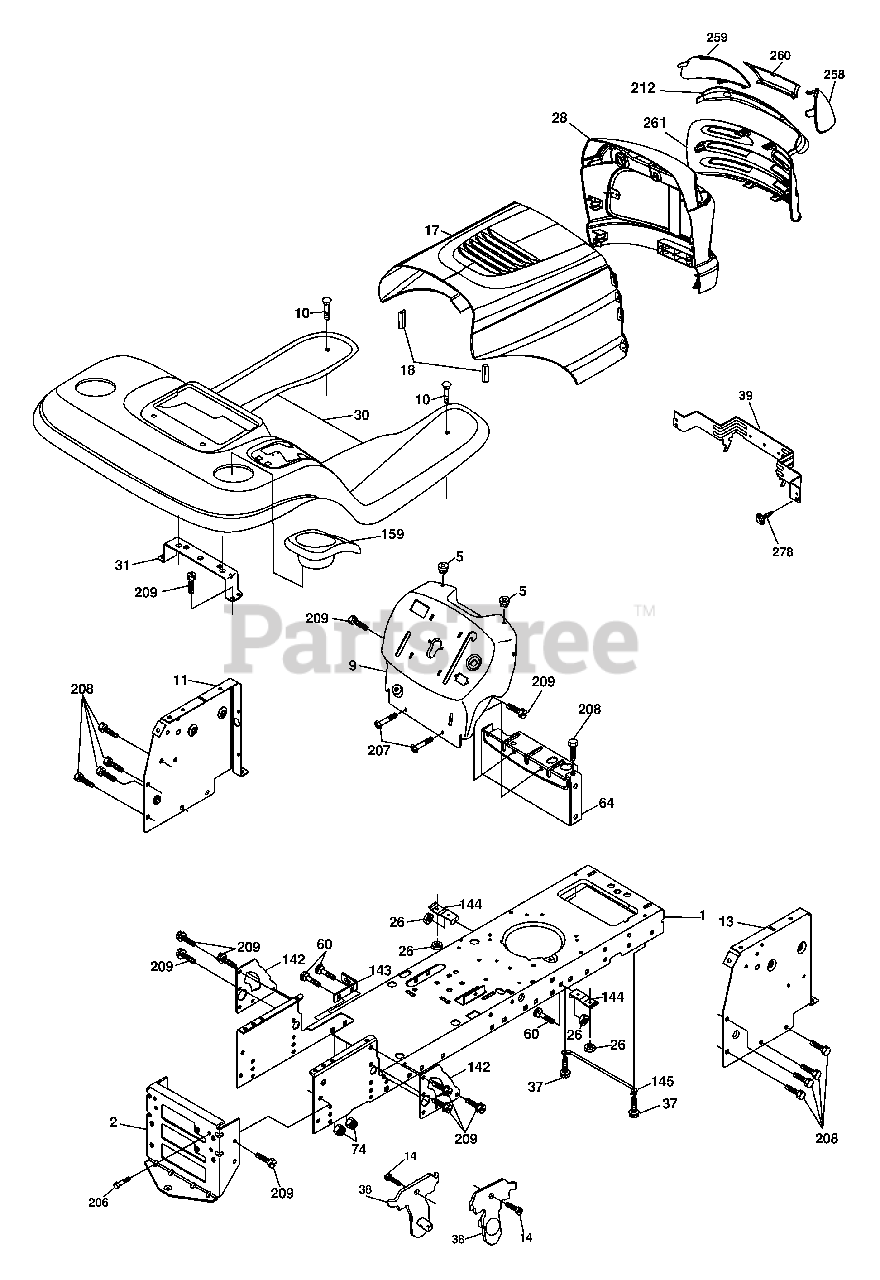

LT 16542 (960130019-00) - Husqvarna Lawn Tractor (2006-02) Chassis Parts Diagram

Lawn Tractor

Chassis Parts Diagram

  • Title

1

Husqvarna 532174619

Chassis
(Superseded to 579841401)

$433.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532176554

Drawbar

$43.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532155272

Bumper Hood/Dash

$7.49

$

In Stock, only 3 left!

0

9

Husqvarna 532195717

Dash
(Superseded to 584378801)

$62.99

$

Usually ships in 3-10 days

0

10

Husqvarna 872140608

Bolt Carriage 3/8-16 x 1
(Superseded to 872110608)

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 532174996

Panel Dash Lh

$

$

Not available

13

Husqvarna 532181719

Panel Dash Rh
(Superseded to 532172105)

$21.99

$

In Stock, only 1 left!

0

14

Husqvarna 817490608

Screw Thdrol 3/8-16 x 1/2

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532187348

Hood
(Superseded to 532185682)

$62.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532184921

Bumper Hood 1.75

$7.49

$

In Stock, Qty 9

0

26

Husqvarna 873800600

Nut Lock Hex W/Ins 3/8-16 unc
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532185292

Grille/Lens Asm.

Note: (Includes Key nos. 212,258-261)

$194.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532195595

Fender Footrest
(Superseded to 583713401)

$303.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532139976

Bracket Fender

$17.99

$

Usually ships in 3-10 days

0

37

Husqvarna 817490508

Screw Thdrol 6/16-18 x 1/2 TYT
(Superseded to 539990858)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532175710

Bracket Asm Pivot Mower Rear

$11.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532174714

Bracket Pivot Hood
(Superseded to 532407807)

$31.99

$

Usually ships in 3-10 days

0

60

Husqvarna 872140606

Bolt RDHD Sqnk 3/8-16 unc x 3/4

$

$

Not available

64

Husqvarna 532154798

Dash Lower STLT

$20.99

$

Usually ships in 3-10 days

0

74

Husqvarna 873680600

Nut Crownlock 3/8-16 unc

$3.99

$

Usually ships in 3-10 days

0

142

Husqvarna 532175702

Plate Reinforcement STLT

$9.49

$

Usually ships in 3-10 days

0

143

Husqvarna 532186689

Bracket Swaybar Chassis

$6.99

$

In Stock, only 2 left!

0

144

Husqvarna 532175582

Bracket Footrest Step-thru

$7.49

$

Usually ships in 3-10 days

0

145

Husqvarna 532156524

Rod Pivot Chassis/Hood
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

159

Husqvarna 532166508

Cupholder
(Superseded to 532155123)

$

$

Not available

206

Husqvarna 532170165

Bolt Shoulder 5/16-18

$4.99

$

In Stock, only 3 left!

0

207

Husqvarna 817670508

Screw 5/16-18 x 1/2

$9.49

$

In Stock, only 2 left!

0

208

Husqvarna 917670608

Screw Thdrl 3/8-16 x 1/2

$

$

Currently unavailable

209

Husqvarna 817000612

Screw Hexwsh Thdr 3/8-16 x 3/4

$4.99

$

In Stock, only 2 left!

0

212

Husqvarna 532183548

Insert Lens

$

$

Not available

258

Husqvarna 532185214

Lens RH
(Superseded to 532183379)

$10.99

$

In Stock, only 2 left!

0

259

Husqvarna 532185213

Lens LH
(Superseded to 532183378)

$10.99

$

In Stock, only 1 left!

0

260

Husqvarna 532185429

Cover Lens

$

$

Not available

261

Husqvarna 532185433

Insert Grille

$24.99

$

Usually ships in 3-10 days

0

278

Husqvarna 532191611

Screw 10 x 3/4 Single Lead-Hex
(Superseded to 532416358)

$

$

Not available

Husqvarna 532005479

Plug Button

$5.99

$

Usually ships in 3-10 days

0

Husqvarna 532187801

Plug Dome Plastic

$4.99

$

Usually ships in 3-10 days

0
