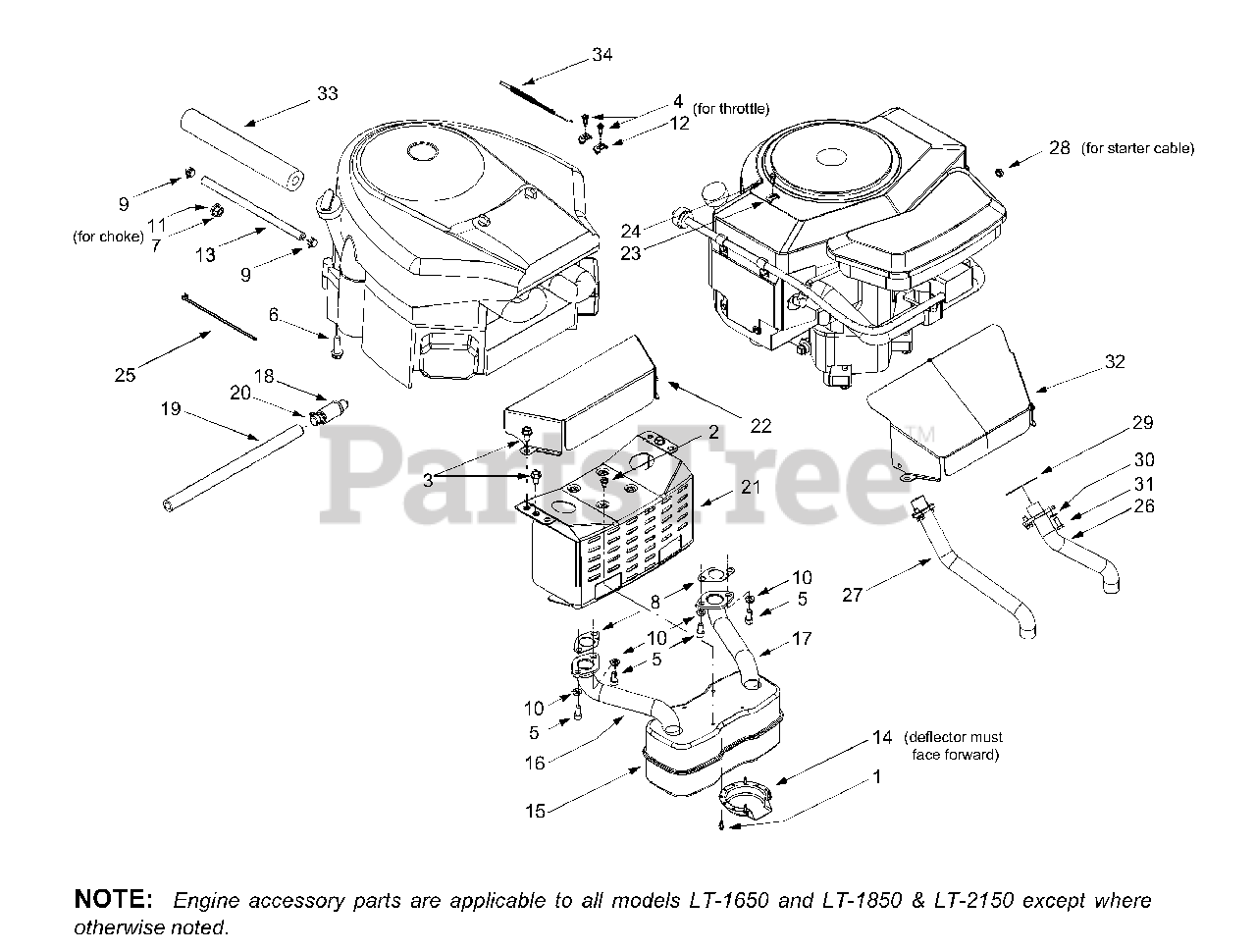

LT-1650 (13CO616G190) - White Outdoor 42" Lawn Tractor (2001) Engine Accessories Parts Diagram

42" Lawn Tractor

Engine Accessories Parts Diagram

  • Title
1

MTD 710-0148

Self-tapping Screw, #8-32 x .375

$4.49

$

In Stock, Qty 16

0

2

MTD 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1237

Screw, #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

5

MTD 710-1314A

Socket Cap Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

7

MTD 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

8

MTD 721-0460

Exhaust Gasket (Models LT-1850/2150)
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

9

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

10

MTD 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

11

MTD 936-0300

Lock Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

12

MTD 751B221535

Casing Clamp (Models LT-1850/2150)

$10.99

$

In Stock, Qty 10

0

13

MTD 751-10349-16

Fuel Line Hose

$19.99

$

In Stock, Qty 11

0

14

MTD 751-0564B

Muffler Deflector

$13.99

$

In Stock, Qty 5

0

15

MTD 751-0616B

Muffler, Twin Inlet
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

16

MTD 751-0650B

RH Exhaust Pipe (Models LT-1850/2150)

$63.99

$

In Stock, only 1 left!

0

17

MTD 751-0651B

LH Exhaust Pipe (Models LT-1850/2150)

$60.99

$

In Stock, only 1 left!

0

18

MTD 951-10517A

Oil Drain Valve

$24.99

$

In Stock, only 3 left!

0

19

MTD 751-3141-14

Oil Drain Hose

$11.99

$

In Stock, Qty 8

0

20

MTD 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

21

MTD 783-0615E-0637

Muffler Heat Shield

$64.99

$

In Stock, only 1 left!

0

22

MTD 783-0625C

Engine Heat Shield (Models LT-1850/2150)

$111.99

$

Usually ships in 3-6 days

0

23

MTD 726-0272

Clamp, 9/16 (Model LT-1650)

$7.49

$

Usually ships in 3-6 days

0

24

MTD 710-0351

Screw, #10-16 x .5 (Model LT-1650)

$4.49

$

Usually ships in 3-6 days

0

25

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

26

MTD 751-0623

LH Exhaust Pipe (Model LT-1650)

Note: NLA

$

$

Not available

27

MTD 751-0624

RH Exhaust Pipe (Model LT-1650)

Note: NLA

$

$

Not available

28

MTD 712-0271

Hex Sems Nut, 1/4-20 (Model LT-1650)

$4.49

$

In Stock, Qty 20+

0

29

MTD 721-0346

Exhaust Gasket (Model LT-1650)

$8.49

$

Usually ships in 3-6 days

0

30

MTD 936-0329

Lock Washer, 1/4 (Model LT-1650)

$4.49

$

In Stock, Qty 11

0

31

MTD 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

32

MTD 783-0357B-0637

Heat Shield (Model LT-1650)

$37.99

$

Usually ships in 3-6 days

0

33

MTD 723-3066-24

Foam, .625 x 1.5 x 10 (fits over fuel line)

$16.99

$

In Stock, only 3 left!

0

34

MTD 946-1086

THROTTLE CABLE

$33.99

$

Usually ships in 3-6 days

0

34

MTD 946-1085A

Choke Cable

$30.99

$

In Stock, only 1 left!

0
