LT-1650 (13BO616G190) - White Outdoor 42" Lawn Tractor (2001) Engine Accessories Parts Diagram

42" Lawn Tractor

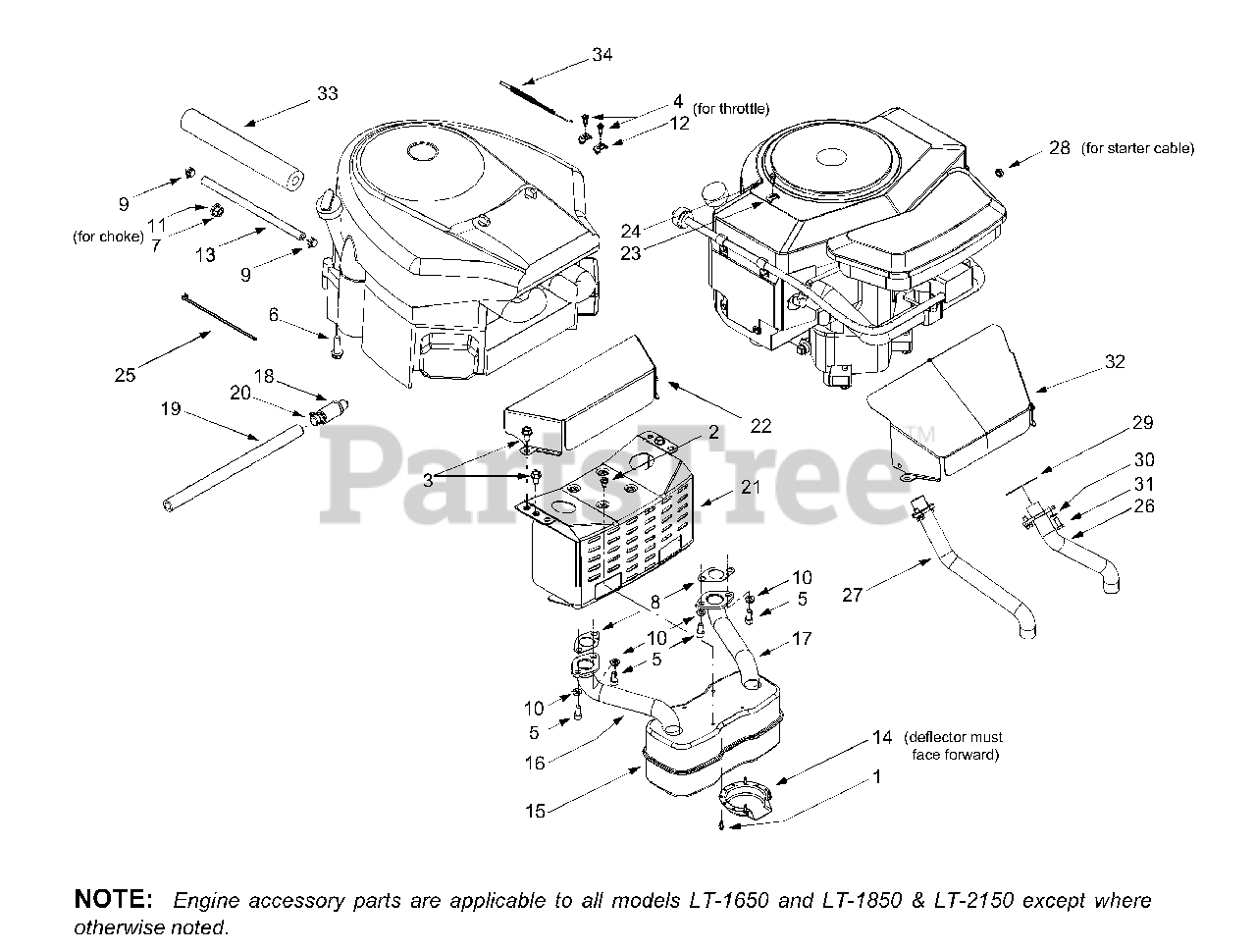

Engine Accessories Parts Diagram

  • Title

1

White Outdoor 710-0148

Self-tapping Screw, #8-32 x .375

$4.49

$

In Stock, Qty 16

0

2

White Outdoor 710-0599

Self-tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1237

Screw, #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

5

White Outdoor 710-1314

Socket Cap Screw, 5/16-18 x .625
(Superseded to 710-1314A)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-1315

Self-tapping Screw, 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-3017

Hex Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 721-0460

Exhaust Gasket (Models LT-1850/2150)
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

9

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-0300

Lock Washer, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 751B221535

Casing Clamp (Models LT-1850/2150)

$10.99

$

In Stock, Qty 10

0

13

White Outdoor 751-0535-15

Fuel Line Hose
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

14

White Outdoor 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

15

White Outdoor 751-0616

Muffler, Twin Inlet
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

16

White Outdoor 751-0650

RH Exhaust Pipe (Models LT-1850/2150)
(Superseded to 751-0650B)

$63.99

$

In Stock, only 1 left!

0

17

White Outdoor 751-0651

LH Exhaust Pipe (Models LT-1850/2150)
(Superseded to 751-0651B)

$60.99

$

In Stock, only 1 left!

0

18

White Outdoor 751-3140

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

19

White Outdoor 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

20

White Outdoor 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

21

White Outdoor 783-0615B

Muffler Heat Shield
(Superseded to 783-0615E-0637)

Variations

White Outdoor 783-0615B-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

22

White Outdoor 783-0625B

Engine Heat Shield (Models LT-1850/2150)
(Superseded to 783-0625C)

$111.99

$

Usually ships in 3-6 days

0

23

White Outdoor 726-0272

Clamp, 9/16 (Model LT-1650)

$7.49

$

Usually ships in 3-6 days

0

24

White Outdoor 710-0351

Screw, #10-16 x .5 (Model LT-1650)

$4.49

$

Usually ships in 3-6 days

0

25

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 751-0623

LH Exhaust Pipe (Model LT-1650)

$

$

Not available

27

White Outdoor 751-0624

RH Exhaust Pipe (Model LT-1650)

$

$

Not available

28

White Outdoor 712-0271

Hex Sems Nut, 1/4-20 (Model LT-1650)

$4.49

$

In Stock, Qty 19

0

29

White Outdoor 721-0346

Exhaust Gasket (Model LT-1650)

$8.49

$

Usually ships in 3-6 days

0

30

White Outdoor 736-0329

Lock Washer, 1/4 (Model LT-1650)
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

31

White Outdoor 710-0751

Hex Screw, 1/4-20 x .620 (Model LT-1650)

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 783-0357A

Heat Shield (Model LT-1650)
(Superseded to 783-0357B-0637)

Variations

White Outdoor 783-0357A-0637

Heat Opp Shield - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

33

White Outdoor 722-0263

Foam, .625 x 1.5 x 10 (fits over fuel line)
(Superseded to 723-3066-24)

$16.99

$

In Stock, only 3 left!

0

34

White Outdoor 746-1086

Throttle Cable
(Superseded to 946-1086)

$33.99

$

In Stock, only 1 left!

0

White Outdoor 746-1085A

Choke Cable
(Superseded to 946-1085A)

Note: Not shown

$30.99

$

In Stock, only 1 left!

0
