LT-1650 (13AO616G190) - White Outdoor 42" Lawn Tractor (2000) 42" Cutting Deck Parts Diagram

42" Lawn Tractor

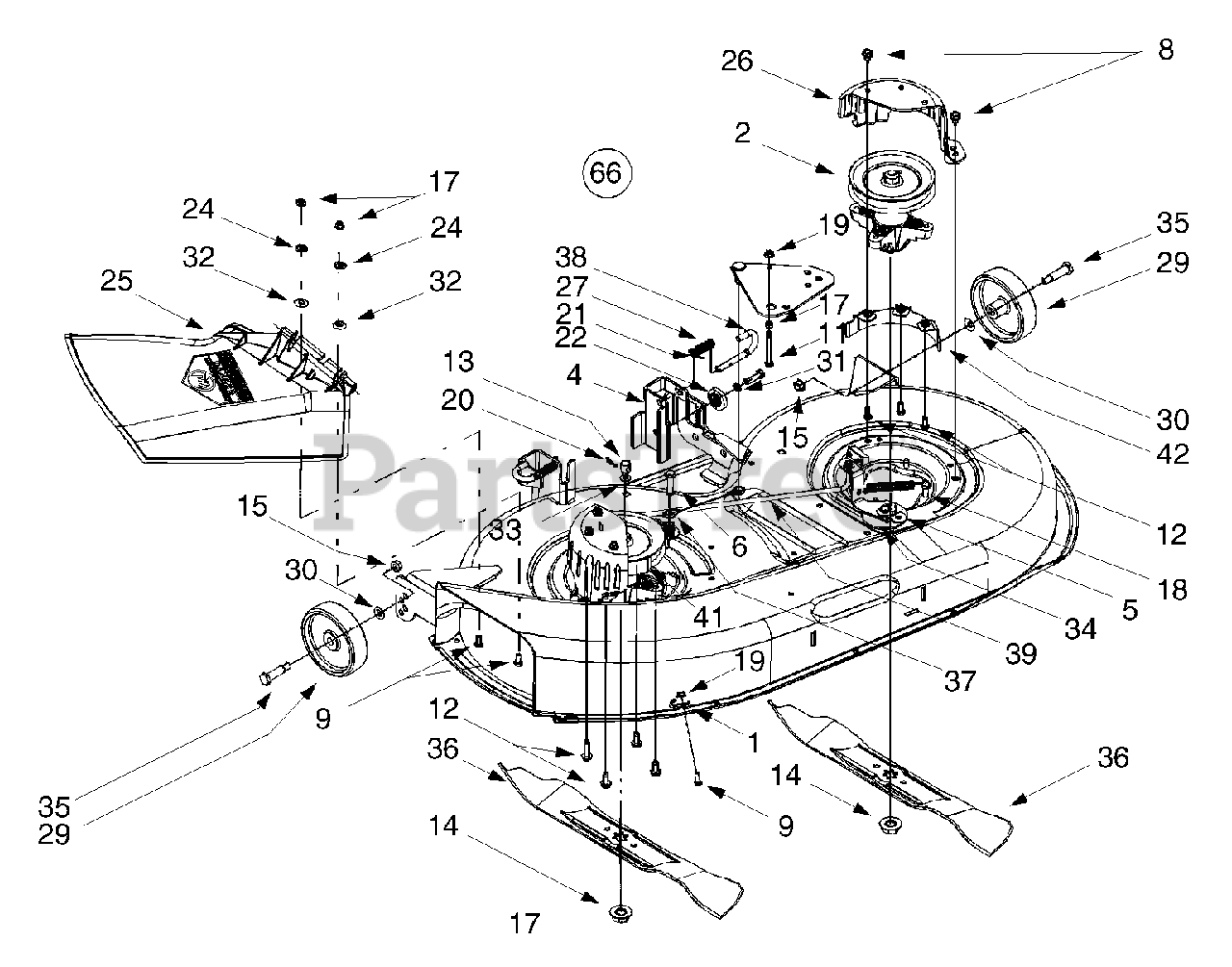

42" Cutting Deck Parts Diagram

  • Title

1

White Outdoor 16606

Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

White Outdoor 618-0427

Spindle Assembly, 5.75 Dia.
(Superseded to 918-04197B)

$157.99

$

In Stock, only 2 left!

0

4

White Outdoor 683-0254

Deck Adjustment Bracket w/ Weld Nut
(Superseded to 683-0254B)

Variations

White Outdoor 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254-0650

BRACKET ASSY-DECK LH - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

White Outdoor 683-0254-0665

BRACKET ASSY-DECK LH - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

5

White Outdoor 683-0303

Deck Brake Assembly, 42-inch Decks
(Superseded to 983-0303A)

$

$

Not available

6

White Outdoor 710-0520

Hex Cap Screw, 3/8-16 x 1.5

$4.49

$

In Stock, Qty 5

0

8

White Outdoor 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-1122

Hex Cap Screw, 1/4-20 x 2.5

$7.49

$

Usually ships in 3-6 days

0

12

White Outdoor 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 711-0677

Ferrule, 5/16-18
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

14

White Outdoor 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

15

White Outdoor 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 17

0

18

White Outdoor 712-3009

Hex Lock Nut, 5/16-18

$6.99

$

In Stock, Qty 20+

0

19

White Outdoor 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 714-0104

Internal Cotter Pin, .072 x 1.12

$4.49

$

In Stock, Qty 20+

0

21

White Outdoor 714-0111

Cotter Pin, 3/32 x 1.0

$4.99

$

In Stock, Qty 13

0

22

White Outdoor 717-1553A

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 9

0

24

White Outdoor 726-0233

Push Nut. .25 x .5

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 731-1032B

Side Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 5

0

26

White Outdoor 731-2231A

Belt Cover
(Superseded to 731-2231B)

$46.99

$

In Stock, only 3 left!

0

27

White Outdoor 732-0306

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 2 left!

0

29

White Outdoor 734-0973

Deck Wheel, 5 x 1.38

$12.99

$

In Stock, Qty 20+

0

30

White Outdoor 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

31

White Outdoor 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 736-0275

Flat Washer, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

34

White Outdoor 736-0416

Flat Washer, .320 x 3.0 x .125

$

$

Not available

35

White Outdoor 738-0373

Shoulder Screw, .498 x 1.53
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

36

White Outdoor 742-0616

Three-in-one Blade, Star Center, 21.23"
(Superseded to 942-0616A)

$31.99

$

In Stock, Qty 20+

0

37

White Outdoor 746-0970

Bracket Cable, 5.35"

$12.99

$

In Stock, only 4 left!

0

38

White Outdoor 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

39

White Outdoor 747-1202

Deck Brake Rod

$

$

Not available

41

White Outdoor 783-1026

RH Belt Guard Bracket

Variations

White Outdoor 783-1026-0637

BRACKET-BELT GUARD RH - POWDER BLACK (0637)

$

$

Not available

$

$

42

White Outdoor 783-1027

LH Belt Guard Bracket
(Superseded to 783-1027A-0637)

Variations

White Outdoor 783-1027-0637

Belt Guard Bracket, LH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

66

White Outdoor 753-0871

42-inch Deck Assembly Complete
(Superseded to 753-0907)

Note: (Manual PTO activated)

Variations

White Outdoor 753-0871-0483

KIT-DECK ASSY COMP4 - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 753-0871-0637

KIT-DECK ASSY COMP4 - POWDER BLACK (0637)

$

$

Not available

White Outdoor 753-0871-0638

KIT-DECK ASSY COMP4 - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 753-0871-0650

KIT-DECK ASSY COMP4 - RED METALLIC (0650)

$

$

Not available

White Outdoor 753-0871-0665

KIT-DECK ASSY COMP4 - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 753-0871-0691

KIT-DECK ASSY COMP4 - BLACK JACK (0691)

$

$

Not available

$

$

White Outdoor 683-0198D

42-inch Deck Shell
(Superseded to 983-0198G)

Variations

White Outdoor 683-0198D-0637

DECK SHELL ASSEMBLY 42" BLACK - POWDER BLACK (0637)

$580.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0198D-0650

DECK SHELL ASSEMBLY 42" BLACK - RED METALLIC (0650)

$580.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0198D-0665

DECK SHELL ASSEMBLY 42" BLACK - YARDMAN GREEN (0665)

$580.99

$

Usually ships in 3-6 days

0

White Outdoor 683-0198D-0691

DECK SHELL ASSEMBLY 42" BLACK - BLACK JACK (0691)

$580.99

$

Usually ships in 3-6 days

0

$580.99

$

Usually ships in 3-6 days

0
