LT-165 (13AT696H190) - White Outdoor 46" Lawn Tractor (1997) Muffler And Exhaust Parts Diagram

46" Lawn Tractor

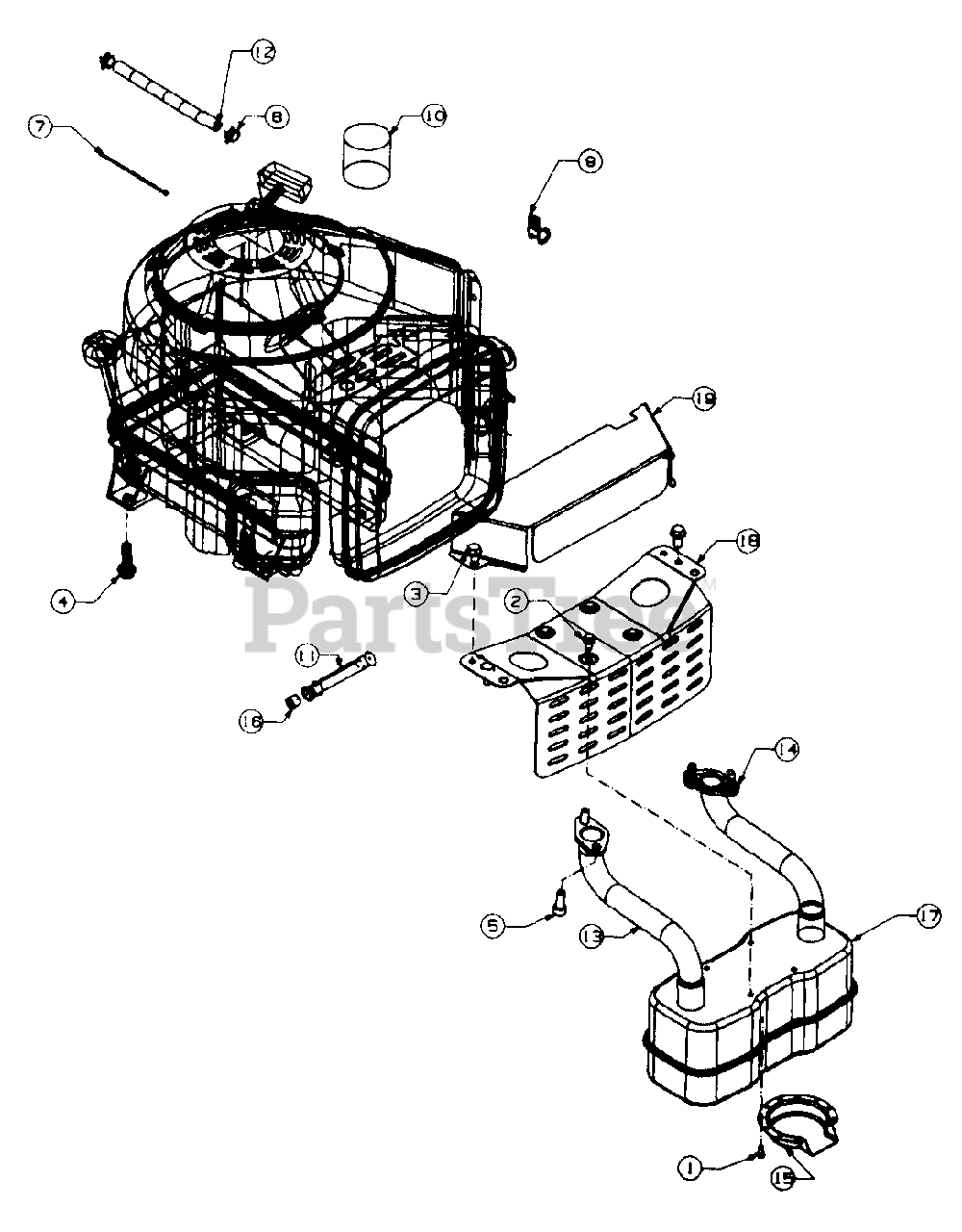

Muffler And Exhaust Parts Diagram

  • Title

1

White Outdoor 710-0148

Hex Tap Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

2

White Outdoor 710-0599

Hex Wash. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1315

Hex Wash. TT-Tap Scr. 3/8-16 x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-3292

Socket Hd. Scr. M8 x 1.25" Lg.

$6.99

$

Usually ships in 3-6 days

0

7

White Outdoor 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

8

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

10

Oil Filter

$

$

Not available

11

White Outdoor 737-0286

Pipe Nipple 3/8 x 3.8" Lg.

$

$

Not available

12

White Outdoor 751-0535-26

Fuel Line
(Superseded to 751-10349-28)

$41.99

$

In Stock, only 1 left!

0

13

White Outdoor 751-0558

Exhaust Tube - R.H.

$

$

Not available

14

White Outdoor 751-0559A

Exhaust Tube - L.H.

$

$

Not available

15

White Outdoor 751-0564

Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 4 left!

0

16

White Outdoor 751-0572

Hex Pipe Plug

$

$

Not available

17

White Outdoor 751-0616

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

18

White Outdoor 783-0320A

Muffler Bracket
(Superseded to 783-0615E-0637)

Variations

White Outdoor 783-0320A-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0

19

White Outdoor 783-0356

Heat Shield

$

$

Not available
