LT-165 (136T696H190) - White Outdoor 46" Lawn Tractor (1996) Wiring Harness And Switches Parts Diagram

46" Lawn Tractor

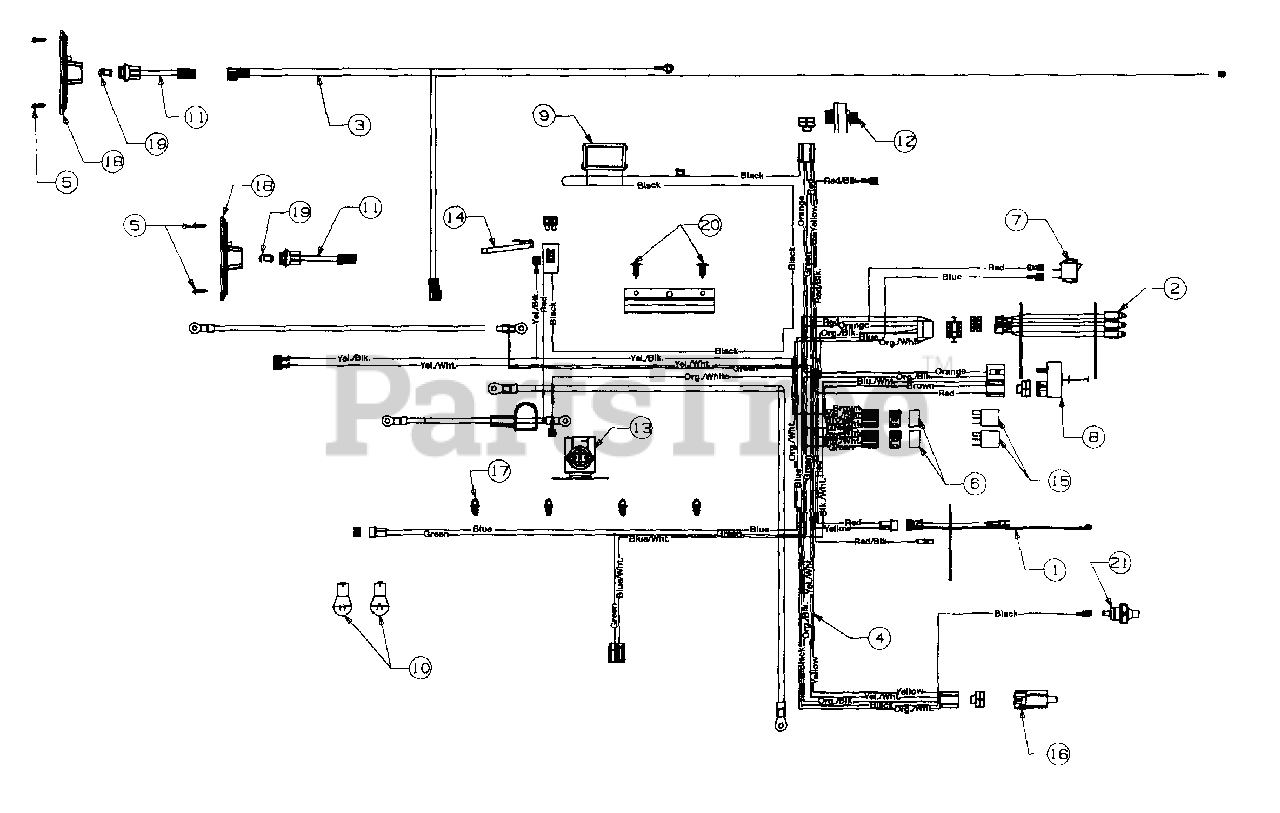

Wiring Harness And Switches Parts Diagram

  • Title

1

White Outdoor 629-0130

Harness Adapter (Mag.)

$

$

Not available

2

White Outdoor 629-0133

Harness Adapter (Monitor)

$

$

Not available

3

White Outdoor 629-0134

Harness Adapter (Tail light)

$

$

Not available

4

White Outdoor 629-0307

Wire Harness
(Superseded to 929-0307B)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

5

White Outdoor 710-0936

Truss Hd. AB-Tap Scr. #6-32 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

6

White Outdoor 721-0342

Relay Gasket
(Superseded to 921-0342)

$7.99

$

In Stock, only 3 left!

0

7

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, Qty 5

0

8

White Outdoor 725-0893

PTO Switch
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

9

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

10

White Outdoor 725-0963

Bulb (Headlight)
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

11

White Outdoor 725-1380

Tail light Harness

$

$

Not available

12

White Outdoor 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

13

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

14

White Outdoor 725-1643

Safety Switch (Reverse)

$10.99

$

In Stock, only 1 left!

0

15

White Outdoor 725-1648

Relay
(Superseded to 925-1648A)

$47.99

$

In Stock, Qty 8

0

16

White Outdoor 725-1657A

Safety Switch
(Superseded to 925-1657A)

$24.99

$

In Stock, Qty 5

0

17

White Outdoor 725-1711

Wire Retainer Clip

$

$

Not available

18

725-3018

Tail light

$

$

Not available

19

White Outdoor 725-3020

Bulb (Tail light)
(Superseded to 925-3020)

$

$

Not available

20

White Outdoor 726-3046

Ratchet

Note: Code: N notates a new part (not previously existing).

$3.99

$

In Stock, Qty 16

0

21

White Outdoor 751-0537

Oil Pressure Switch

$

$

Not available
