LT-165 (134T696H190) - White Outdoor 46" Lawn Tractor (1994) Transmission Parts Diagram

46" Lawn Tractor

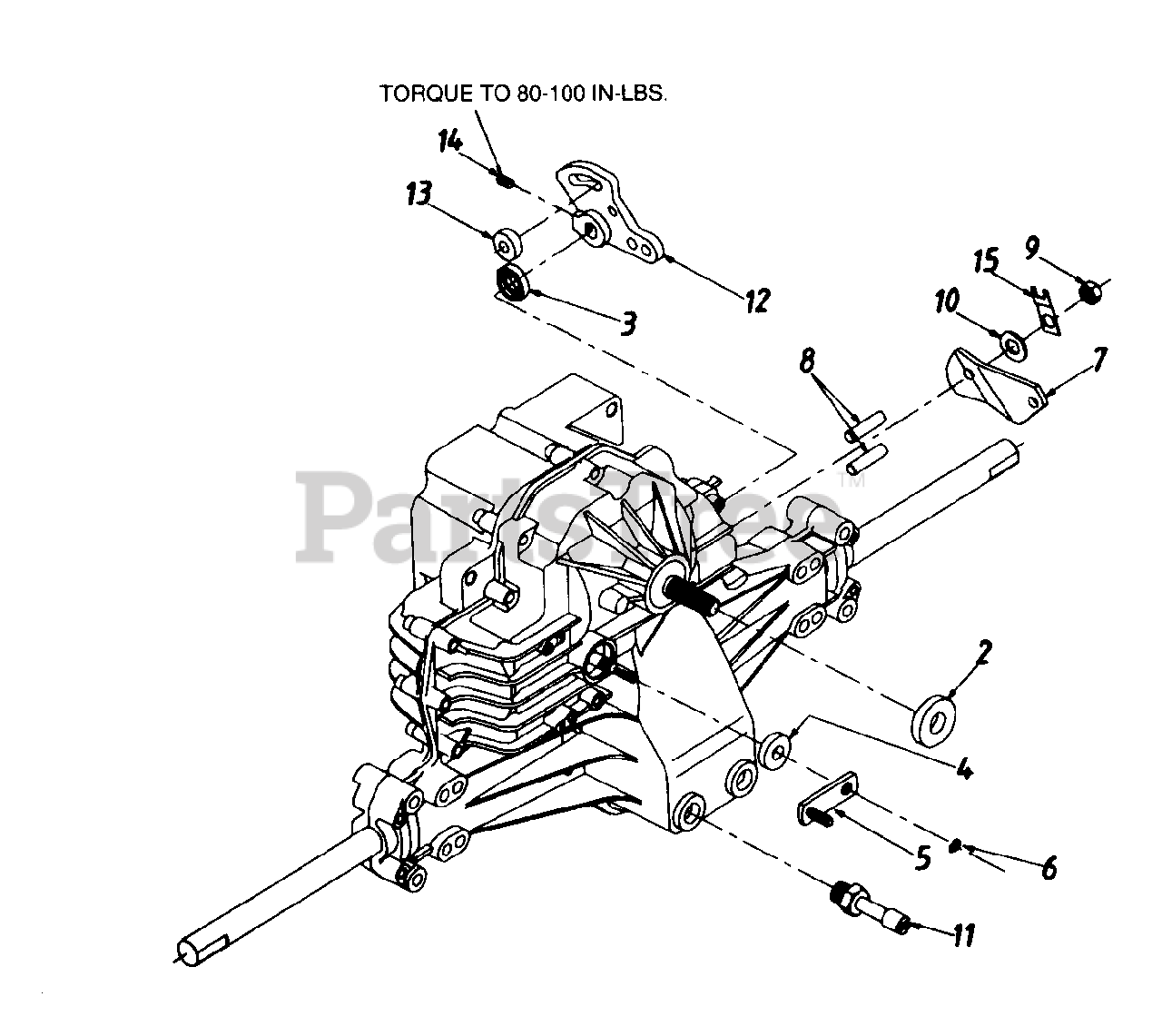

Transmission Parts Diagram

  • Title
?1

White Outdoor 718-0255

Transmission Comp.
(Superseded to 918-0255A)

$

$

Not available

$19.99

$

In Stock, only 2 left!

0

$15.99

$

Usually ships in 3-6 days

0

4

White Outdoor HG-45074

Seal - Lip 10 x 25 x 7

$

$

Not available

5

White Outdoor HG-50126

Arm - Bypass

$

$

Not available

6

White Outdoor HG-44870

Ring - Retaining

$

$

Not available

7

White Outdoor HG-44094

Arm - Actuating

$9.99

$

Usually ships in 3-6 days

0

8

White Outdoor HG-44891

Pin - Actuating

$

$

Not available

9

White Outdoor HG-50108

Nut - Hex Lock 5/16-24 UNJC
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

10

White Outdoor HG-44130

Washer 7/16" x 7/8" x .060"
(Superseded to 736-0371)

$4.49

$

In Stock, only 3 left!

0

11

White Outdoor HG-50042

Breather Ass'y.

$

$

Not available

12

White Outdoor HG-45007

Arm - Control

$

$

Not available

13

White Outdoor HG-50034

Puck - Dampener

$

$

Not available

14

$

$

Not available

15

HG-50129

Strap, Locking

$

$

Not available
