LT 1644 (2690117) - Snapper 44" Lawn Tractor, 16hp Hood, Grill & Dash Group Parts Diagram

44" Lawn Tractor, 16hp

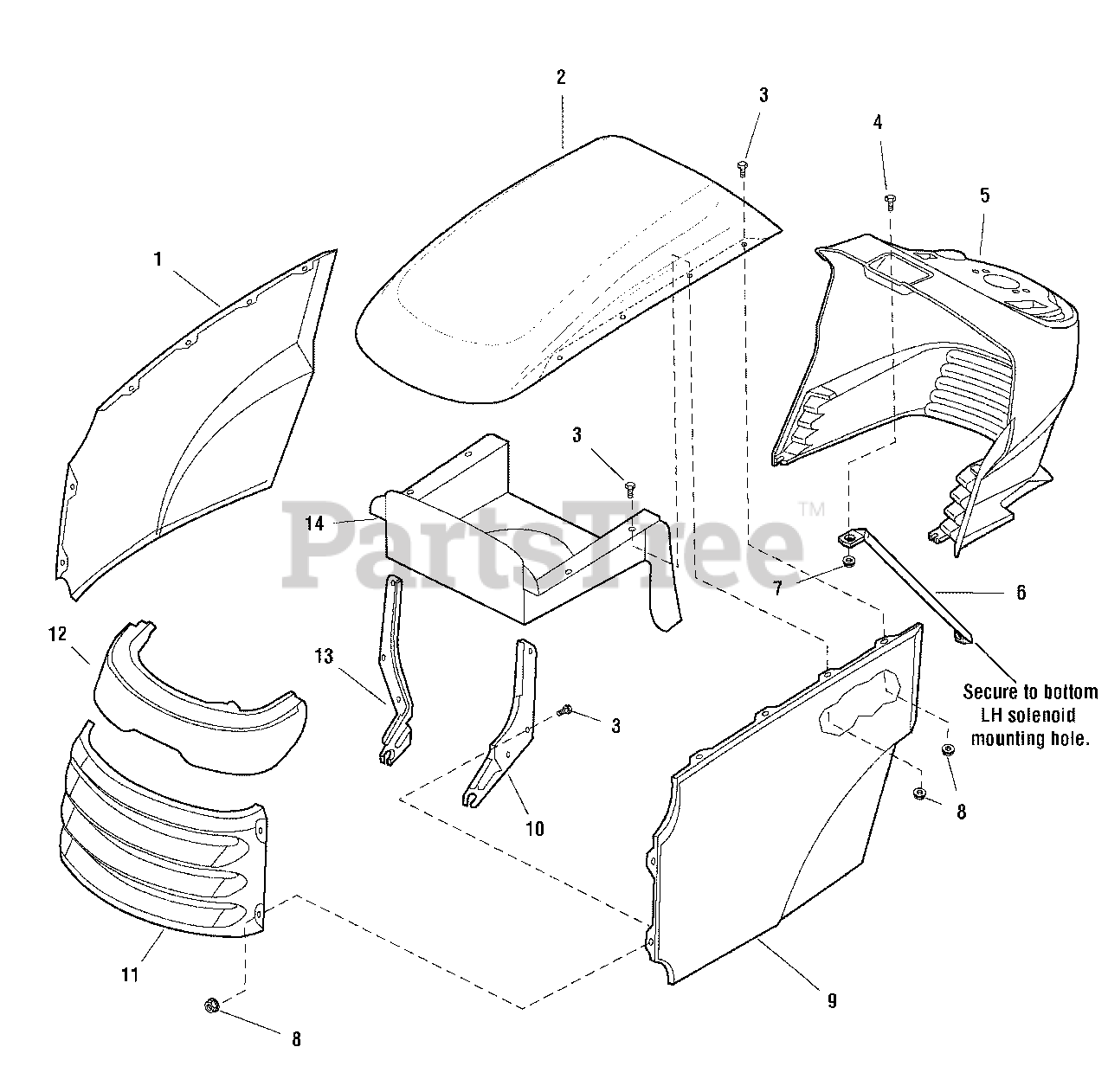

Hood, Grill & Dash Group Parts Diagram

  • Title

1

Snapper 1721804D

PANEL, RH Side, Red
(Superseded to 1721804DSM)

$170.99

$

Usually ships in 2-12 days

0

2

Snapper 1721801D

HOOD, Red
(Superseded to 1728031DSM)

$311.99

$

In Stock, only 1 left!

0

3

Snapper 1960295

CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8
(Superseded to 1960295SM)

$4.49

$

In Stock, only 1 left!

0

4

Snapper 1960392

SCREW, Pan Head Phillips, #10-24 x 1/2
(Superseded to 1960392SM)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper 1724082

DASHBOARD
(Superseded to 1687054SM)

$173.99

$

Usually ships in 2-12 days

0

6

Snapper 1723123

ROD, Dash Support
(Superseded to 1723123SM)

$11.99

$

Usually ships in 2-12 days

0

7

Snapper 1933896

NUT, Hex Lock, w/Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

8

Snapper 1930641

NUT, Hex Flange Whiz Lock, 1/4-20, Large, Black
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 1721803D

PANEL, LH Side, Red
(Superseded to 1721803DSM)

$170.99

$

Usually ships in 2-12 days

0

10

Snapper 1721808A

HINGE, LH
(Superseded to 1721808ASM)

$29.99

$

In Stock, only 3 left!

0

11

Snapper 1721802D

GRILLE, Red
(Superseded to 1721802DSM)

$120.99

$

Usually ships in 2-12 days

0

12

Snapper 1721810

HEADLIGHT ASSEMBLY, 4 Bulb (See Electrical Group for internal components)
(Superseded to 1721810SM)

$164.99

$

Usually ships in 2-12 days

0

13

Snapper 1721809A

HINGE, RH
(Superseded to 1721809ASM)

$29.99

$

In Stock, only 1 left!

0

14

Snapper 1722391A

DUCT, Air Inlet
(Superseded to 7102326YP)

$131.99

$

In Stock, only 1 left!

0
