LT 16412 (82078) - Snapper 41" Lawn Tractor, 16hp Spindle Assembly (41" & 48" Outboard) Parts Diagram

41" Lawn Tractor, 16hp

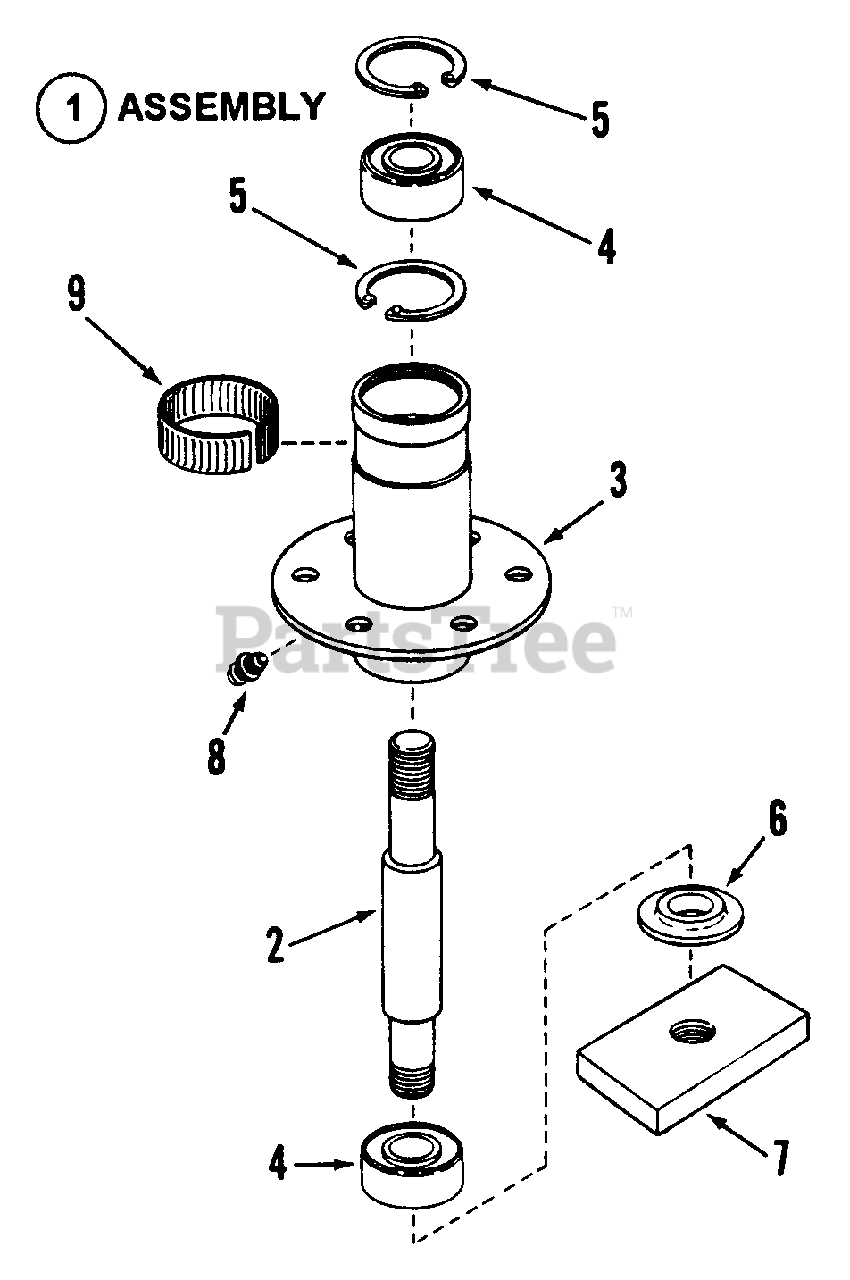

Spindle Assembly (41" & 48" Outboard) Parts Diagram

  • Title

1

Snapper 7051473

ASSEMBLY, Spindle
(Superseded to 7051473YP)

Note: (Includes items 2 thru 7)

$

$

Not available

2

Snapper 7027632

SPINDLE (6.06")
(Superseded to 7027632YP)

$52.99

$

In Stock, only 1 left!

0

3

Snapper 7051472

HOUSING, Spindle
(Superseded to 7051472YP)

Note: (Incl. Item 8)

$92.99

$

Usually ships in 2-12 days

0

4

Snapper 7013313

BEARING, Spindle
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

5

Snapper 7012491

RING, Retaining
(Superseded to 7012491SM)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 20+

0

7

Snapper 7032294

HOLDER, Blade
(Superseded to 7032294YP)

$

$

Not available

8

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 7012670

RING, Tolerance
(Superseded to 7012670YP)

Note: Order separately

$8.49

$

In Stock, Qty 6

0
