LT 16412 (82078) - Snapper 41" Lawn Tractor, 16hp Rear Weight Kit Parts Diagram

41" Lawn Tractor, 16hp

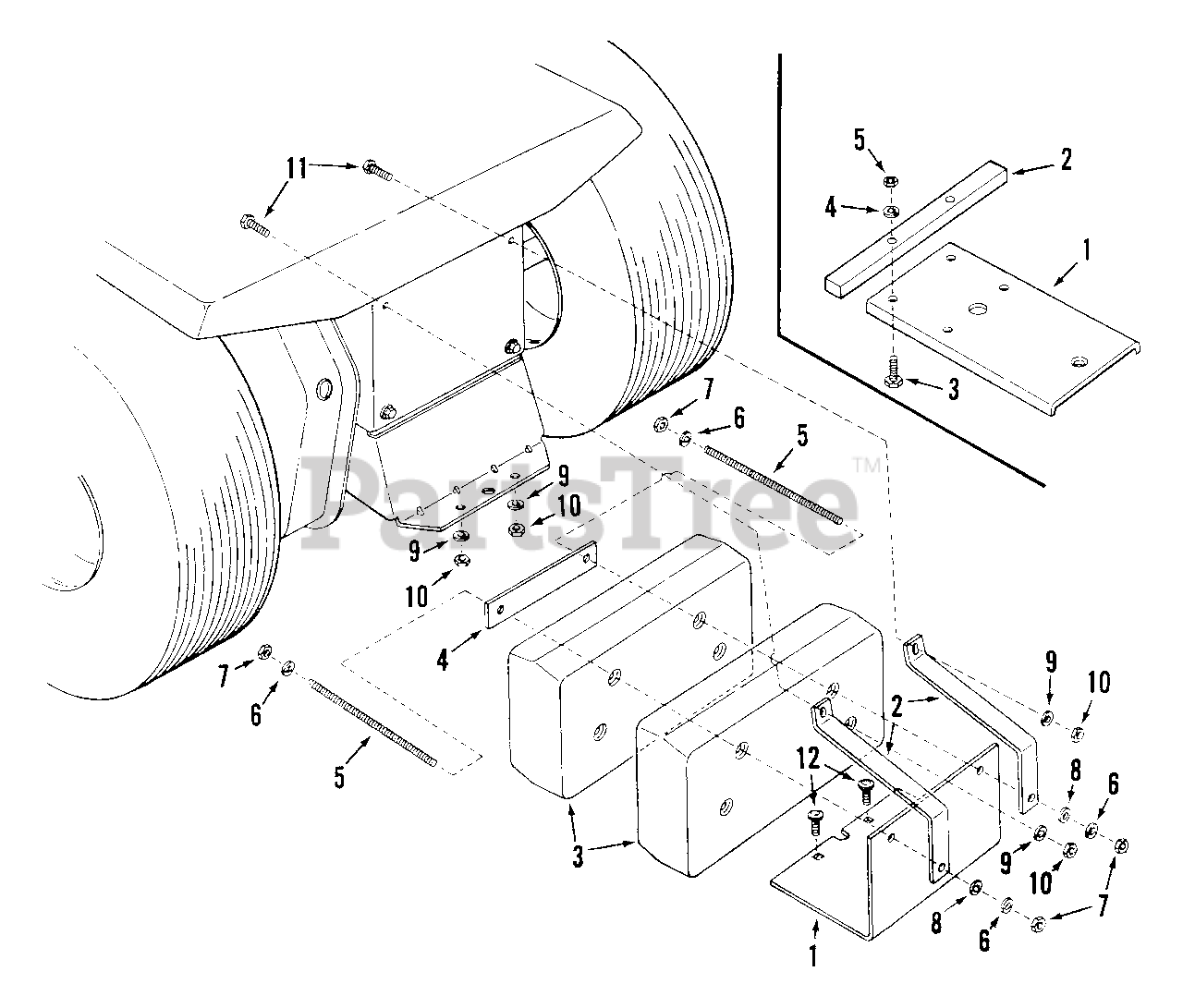

Rear Weight Kit Parts Diagram

  • Title

1

Snapper 7038175

FRAME

$

$

Currently unavailable

2

Snapper 7038176

SUPPORT

$

$

Currently unavailable

3

Snapper 7019759

WEIGHT (38 lb.)
(Superseded to 7019759YP)

$188.99

$

Usually ships in 2-12 days

0

4

Snapper 7032442

PLATE, Retainer

$

$

Currently unavailable

5

Snapper 7015002

ROD, 3/8-16 x 9" Threaded
(Superseded to 7015002YP)

$16.99

$

Usually ships in 2-12 days

0

6

Snapper 7090118

WASHER, 3/8 Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 18

0

7

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

8

Snapper 7090122

WASHER, 3/8 Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7090209

SCREW, 5/16-18 x 1" HHC Gr. 2
(Superseded to 7090209YP)

$2.99

$

Usually ships in 2-12 days

0

12

Snapper 7091303

BOLT, 5/16-18 x 1" Sq. Neck Carriage
(Superseded to 703800)

Note: Was 90208

$3.99

$

In Stock, Qty 12

0
