LT 16412 (82078) - Snapper 41" Lawn Tractor, 16hp Fuel Tank, Pedestal, Dash & Hold Downs Parts Diagram

41" Lawn Tractor, 16hp

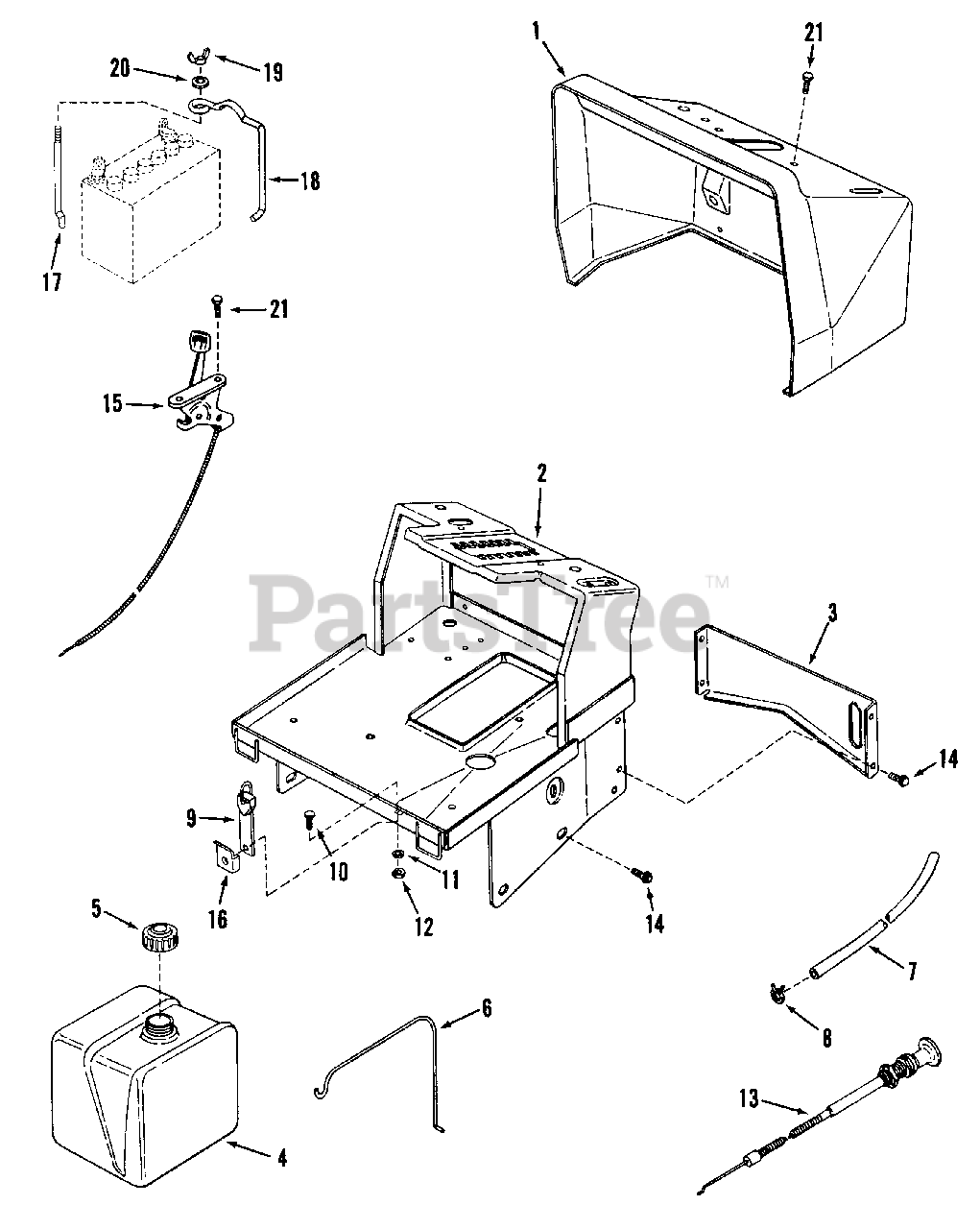

Fuel Tank, Pedestal, Dash & Hold Downs Parts Diagram

  • Title

1

Snapper 7019958

PANEL, Dash
(Superseded to 7016043YP)

$63.99

$

Usually ships in 2-12 days

0

2

Snapper 7049943

PEDESTAL

$

$

Currently unavailable

3

Snapper 7038143

BRACKET, Lower Dash
(Superseded to 7038143YP)

$54.99

$

Usually ships in 2-12 days

0

4

Snapper 7057334

TANK, Fuel 5 Qt.

Note: (Includes item 5)

$

$

Not available

5

Snapper 7012515

CAP, Fuel Tank Filler
(Superseded to 7012515YP)

Note: Was 14363

$19.99

$

In Stock, only 4 left!

0

6

Snapper 7018624

HOLD-DOWN, Fuel Tank
(Superseded to 7018624YP)

$10.99

$

Usually ships in 2-12 days

0

7

Snapper 7012638

LINE, Fuel (12-1/2" Long)
(Superseded to 791766)

Note: Was 12912

$7.99

$

In Stock, Qty 20+

0

8

Snapper 7029900

CLAMP, Fuel Line
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7018254

STRAP, Tank Hold Down
(Superseded to 7018254YP)

$16.99

$

Usually ships in 2-12 days

0

10

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Carriage, Grade 2
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7091294

WASHER, 1/4 SAE
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7091545

NUT, 1/4-20 Hex Flange Lock, Grade 5
(Superseded to 703916)

Note: Was 90477

$4.99

$

In Stock, only 2 left!

0

13

Snapper 7018674

CONTROL, Choke Cable (29")
(Superseded to 7018674YP)

$23.99

$

Usually ships in 2-12 days

0

14

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Self-Tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

15

Snapper 7018675

CONTROL, Throttle (27-3/4")
(Superseded to 7018675YP)

Note: (1987 & Earlier)

$28.99

$

Usually ships in 2-12 days

0

15

Snapper 7015844

CONTROL, Throttle (30.0")(B&S Twin 2)
(Superseded to 7015844YP)

Note: (1988 & Later)

$60.99

$

Usually ships in 2-12 days

0

16

Snapper 7032444

CLIP, Hood Retainer
(Superseded to 7032444YP)

$37.99

$

Usually ships in 2-12 days

0

17

Snapper 7032296

HOLD-DOWN, Battery
(Superseded to 7032296YP)

$14.99

$

Usually ships in 2-12 days

0

18

Snapper 7014434

CLAMP, Battery
(Superseded to 7014434YP)

$15.99

$

Usually ships in 2-12 days

0

19

Snapper 7091568

WING-NUT, 1/4-20
(Superseded to 014X79MA)

Note: Was 90311

$4.99

$

Usually ships in 2-12 days

0

20

Snapper 7091294

WASHER, 1/4 Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

21

Snapper 7090896

SCREW, #10-24 x 1/2" Hex Washer Self-Tap
(Superseded to 7090896YP)

Note: Was 90853

$3.49

$

In Stock, only 3 left!

0
