LT 160H482BV (80392) - Snapper 48" Lawn Tractor, 16hp Electrical System (Briggs Engines Only) Parts Diagram

48" Lawn Tractor, 16hp

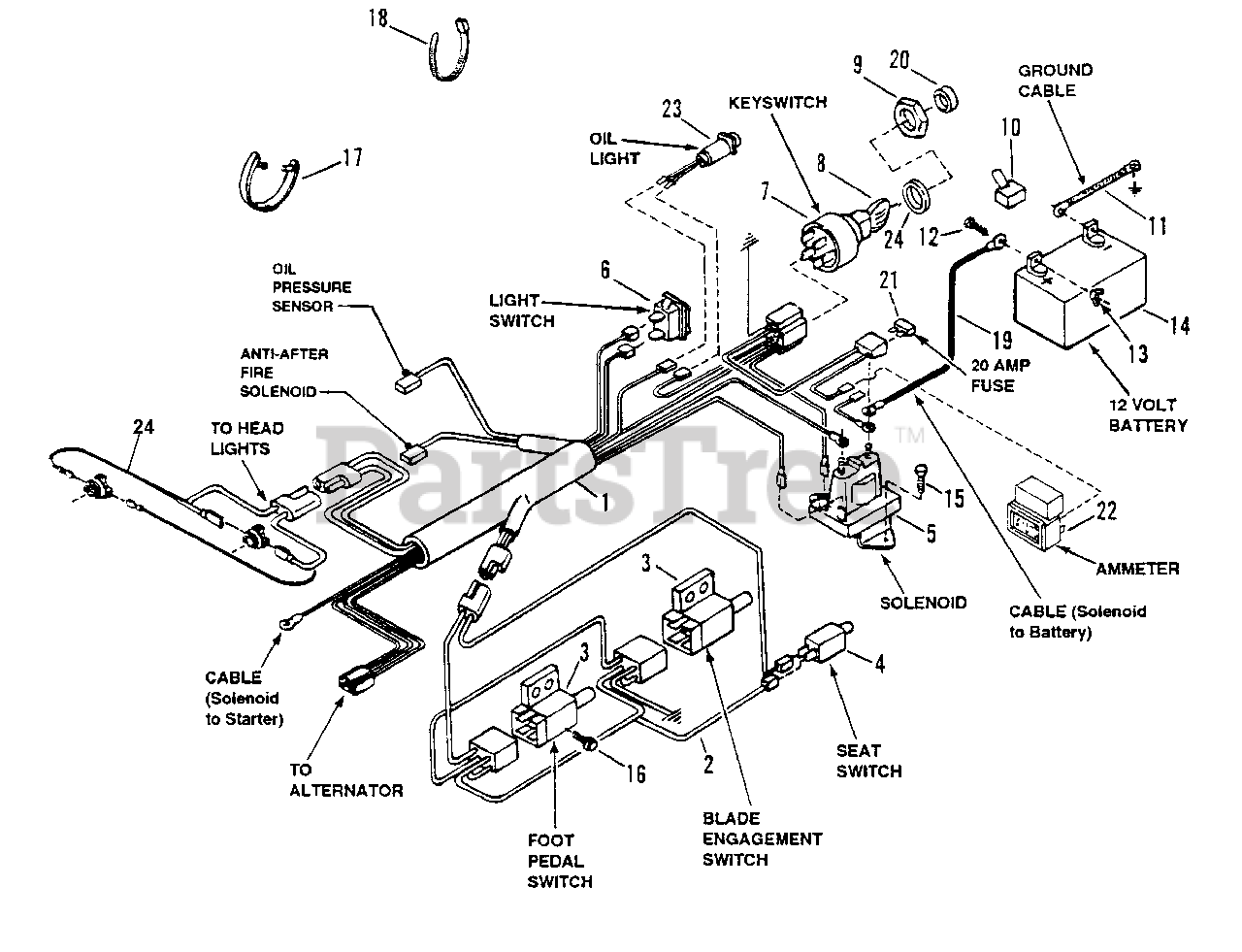

Electrical System (Briggs Engines Only) Parts Diagram

  • Title

1

Snapper 7026668

HARNESS, Wiring (Briggs Engine)
(Superseded to 7026668YP)

$92.99

$

Usually ships in 2-12 days

0

2

Snapper 7024126

HARNESS, Interlock
(Superseded to 7024126YP)

$25.99

$

Usually ships in 2-12 days

0

3

Snapper 7023355

SWITCH, Clutch & PTO (NC/NO)
(Superseded to 7023355YP)

$17.99

$

In Stock, Qty 20+

0

4

Snapper 7023354

SWITCH, Seat (NC)
(Superseded to 7023354YP)

Note: Was 17590

$12.99

$

In Stock, Qty 20+

0

5

Snapper 7075622

SOLENOID
(Superseded to 1755382YP)

Note: Was 18604

$29.99

$

In Stock, Qty 20+

0

6

Snapper 7023187

SWITCH, Light
(Superseded to 7023187YP)

$14.99

$

In Stock, only 1 left!

0

7

Snapper 7026343

SWITCH, Key
(Superseded to 7026343SM)

Note: (Includes 2 of Item 8)

$38.99

$

In Stock, Qty 18

0

8

Snapper 7073406

KEY, Switch (With Cover)
(Superseded to 1717163SM)

Note: Was 23504

$8.99

$

In Stock, Qty 20+

0

9

Snapper 7012685

NUT, 5/8-32 Hex
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 7012444

COVER, Positive Terminal
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0

11

Snapper 7014475

CABLE, Negative 15" 8 AWG Black

$

$

Not available

12

Snapper 7091530

BOLT, 1/4-20 x 3/4" Carriage
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 3 left!

0

13

Snapper 7091568

NUT, 1/4-20 Wing
(Superseded to 014X79MA)

Note: Was 90311

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 7060618

KIT, Battery
(Superseded to 1685215SM)

$

$

Not available

15

Snapper 7091122

SCREW, 1/4-20 x 1/2" Self-Tapping
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, Qty 9

0

16

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 11

0

17

Snapper 7014451

TIE, Wire
(Superseded to 7014451YP)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7012080

TIE, Cable 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

19

Snapper 7014476

CABLE, Positive 11" 8 AWG Red
(Superseded to 7014476YP)

$12.99

$

Usually ships in 2-12 days

0

20

Snapper 7023506

BEZEL
(Superseded to 7023506SM)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper 7023653

FUSE, 20 Amp
(Superseded to 7023653YP)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 7022690

AMMETER
(Superseded to 7022690YP)

$16.99

$

Usually ships in 2-12 days

0

23

Snapper 7060982

OIL LIGHT
(Superseded to 7060982YP)

Note: Was 22791

$39.99

$

In Stock, only 1 left!

0

24

Snapper 7026171

HARNESS, Headlight M&G Sockets
(Superseded to 7026171YP)

$11.99

$

Usually ships in 2-12 days
