LT 160H482BV (80392) - Snapper 48" Lawn Tractor, 16hp Dash Panel, Fuel Tank, Battery (Part 2) Parts Diagram

48" Lawn Tractor, 16hp

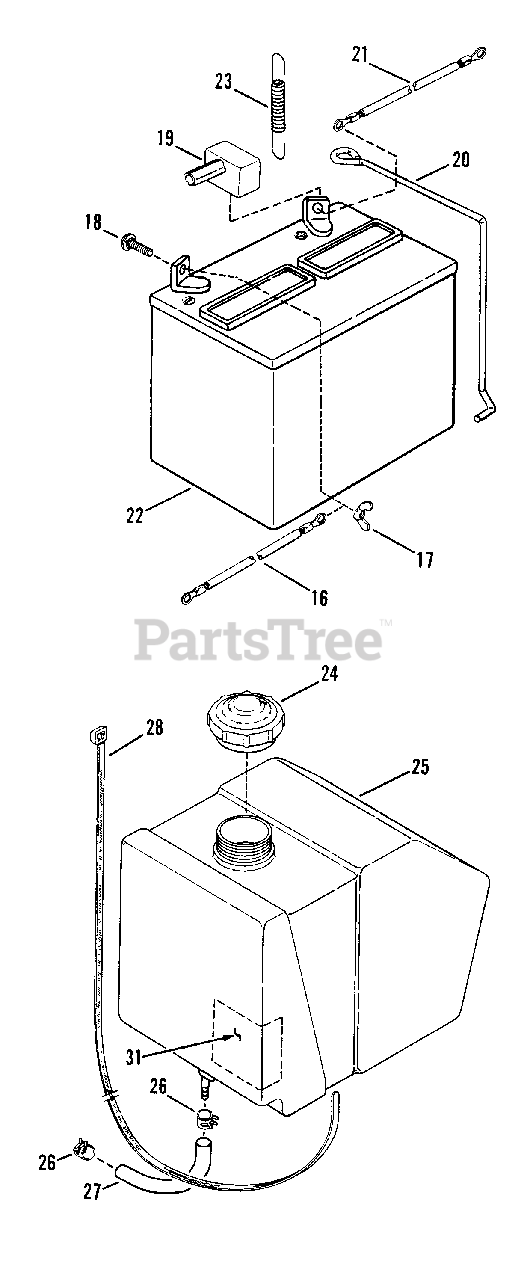

Dash Panel, Fuel Tank, Battery (Part 2) Parts Diagram

  • Title

16

Snapper 7014475

CABLE, Negative Terminal 15" 8 AWG Black

$

$

Not available

17

Snapper 7091568

WING-NUT, 1/4-20
(Superseded to 014X79MA)

Note: Was 90311

$4.99

$

Usually ships in 2-12 days

0

18

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage
(Superseded to 7091530SM)

Note: Was 90074

$3.99

$

In Stock, only 3 left!

0

19

Snapper 7012444

COVER, Positive Terminal
(Superseded to 1677296SM)

$6.49

$

In Stock, Qty 11

0

20

Snapper 7022366

CLAMP, Battery
(Superseded to 7022366YP)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper 7014476

CABLE, Positive Terminal 11" 8 AWG Red
(Superseded to 7014476YP)

$12.99

$

Usually ships in 2-12 days

0

22

Snapper 7060618

KIT, Battery, 12 Volt
(Superseded to 1685215SM)

$

$

Not available

23

Snapper 7022696

SPRING, Battery Bracket
(Superseded to 7022696YP)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper 7012515

CAP, Fuel Tank
(Superseded to 7012515YP)

Note: Was 14363

$19.99

$

In Stock, only 4 left!

0

25

Snapper 7052258

TANK, Fuel w/cap

Note: (Includes item 24)

$

$

Not available

26

Snapper 7029900

CLAMP, Fuel Line .490 x .31
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

27

Snapper 7032633

LINE, Fuel (14.5" Long) (No longer available)

Note: Was 32633

$

$

Currently unavailable

28

Snapper 7023195

CABLE-TIE, Fuel Tank Hold Down
(Superseded to 7023195SM)

$5.99

$

Usually ships in 2-12 days

0

31

Snapper 7017788

HEAT SHIELD, Fuel Tank 3" x 5.5" (No longer available)

Note: Was 17788

$

$

Currently unavailable

39

Snapper 7024943

DECAL, Dash Panel (Not Shown)

$

$

Not available

39

Snapper 7026699

DECAL, Dash Panel (meter/choke) (Not Shown)

Note: (For Briggs Engines)

$

$

Not available
