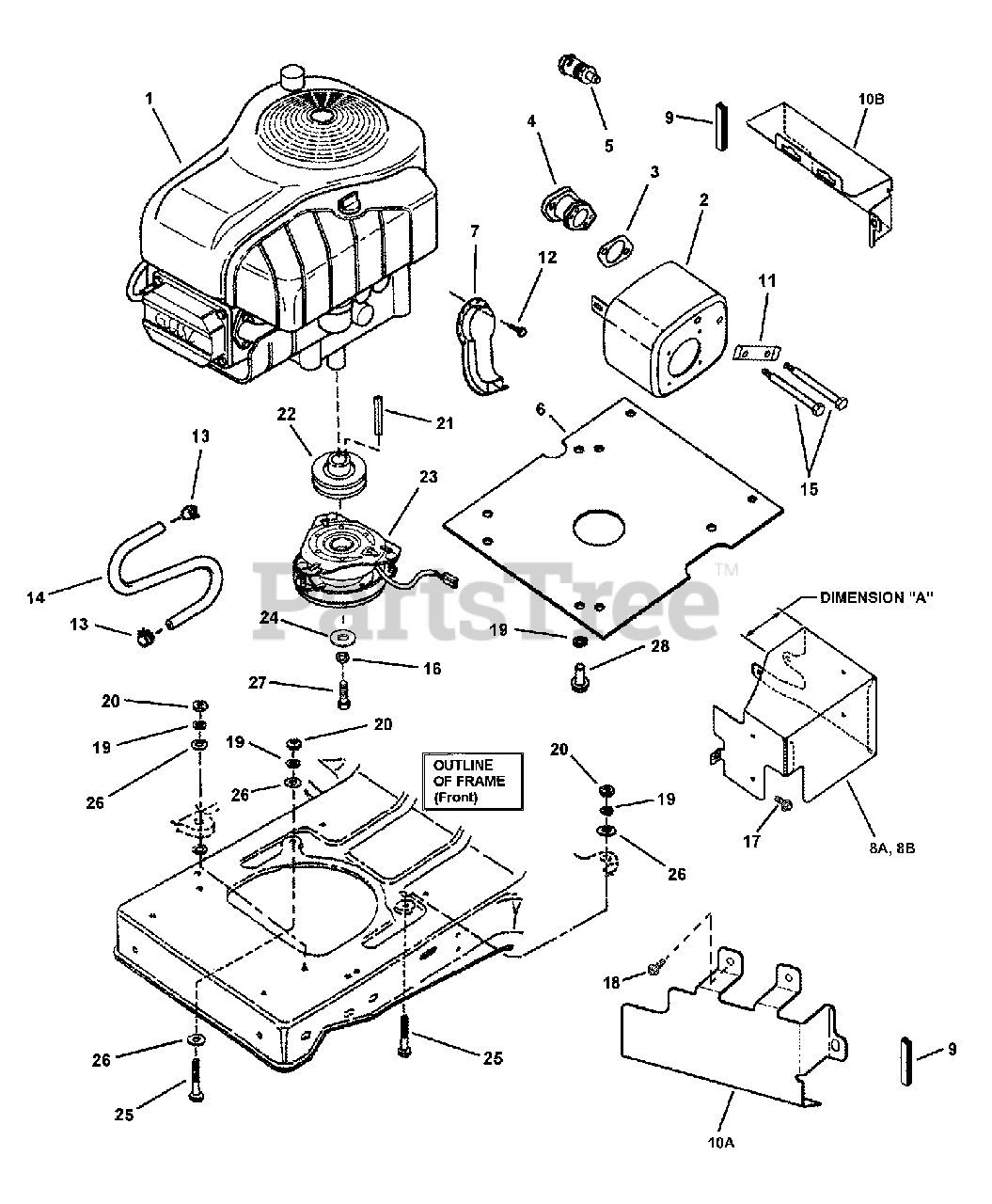

LT 160H42IBV (84895) - Snapper 42" Lawn Tractor, 16hp ENGINE COMPONENTS, PT.5 (Model LT160H42IBV) Parts Diagram

42" Lawn Tractor, 16hp

ENGINE COMPONENTS, PT.5 (Model LT160H42IBV) Parts Diagram

  • Title

1

* ENGINE, B&S 17 HP Intek, Mod. 31F777-0111-E1

$

$

Not available

2

Snapper 7074826

MUFFLER, 14.5HP Briggs Engine
(Superseded to 7074826YP)

$111.99

$

Usually ships in 2-12 days

0

3

Snapper 7015352

GASKET, Exhaust (1.25" I.D.; 1.875" hole centers)
(Superseded to 7015352SM)

$5.49

$

In Stock, Qty 8

0

4

Snapper 7071756

ADAPTER, Muffler

$

$

Not available

5

Snapper 7027972

ASSEMBLY, Oil Valve
(Superseded to 7027972SM)

$24.99

$

In Stock, Qty 9

0

6

Snapper 7075070

PLATE, Engine- Briggs Engine
(Superseded to 7075070YP)

$34.99

$

Usually ships in 2-12 days

0

7

Snapper 7041537

WELDMENT, Muffler Deflrctor
(Superseded to 7041537YP)

$82.99

$

Usually ships in 2-12 days

0

8A

Snapper 7044824

WELDMENT, Heat Shield-Muffler- 17HP Intek B&S
(Superseded to 7044824YP)

Note: Dim. "A" 1.38"

$91.99

$

Usually ships in 2-12 days

0

8B

Snapper 7041340

HEAT SHIELD, Muffler- 15HP B&S
(Superseded to 7041340YP)

Note: Dim. "A" 2.63" (used on LT180H42IBV) replaces 44824

$110.99

$

Usually ships in 2-12 days

0

9

Snapper 7075171

TRIM-Heat Shield (3" long)

$

$

Currently unavailable

10A

Snapper 7075431

HEAT SHIELD, Manifold 17HP B&S
(Superseded to 7075431YP)

$20.99

$

Usually ships in 2-12 days

0

10B

Snapper 7075065

HEAT SHIELD, Manifold 15HP B&S
(Superseded to 7075065YP)

Note: (used on LT180H42IBV) replaces 75431

$27.99

$

Usually ships in 2-12 days

0

11

Snapper 7024566

SCREW LOCK
(Superseded to 691178)

$5.49

$

In Stock, Qty 9

0

12

Snapper 7091581

SCREW, #8-18 x 1/2" Hex Head Sheet Metal
(Superseded to 7091581YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7029900

CLAMP, .490 x .31
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 7075472

FUEL LINE, 29" long

$

$

Not available

15

Snapper 7024161

SHOULDER BOLT, 5/16-18 thread x 4"
(Superseded to 691416)

$11.99

$

In Stock, Qty 12

0

16

Snapper 7091301

WASHER, 7/16" Split Lock
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 7091122

SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap
(Superseded to 7091122SM)

Note: Was 90539

$3.99

$

In Stock, only 1 left!

0

18

Snapper 7091579

SCREW, 1/4-20 x 1/2" Hex Flange Lock
(Superseded to 7091579SM)

$3.99

$

In Stock, only 2 left!

0

19

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7091511

NUT, 5/16-18 Hex, GR 5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

21

Snapper 7091033

KEY, 1/4 Square x 1-3/4"

$

$

Not available

22

Snapper 7075034

PULLEY, Traction Drive 42&48 TT K46
(Superseded to 7075034YP)

$63.99

$

Usually ships in 2-12 days

0

23

Snapper 7075085

ELECTRIC CLUTCH, Ogura MA-GT-DX11CU (Series "I")
(Superseded to 5023100SM)

$535.99

$

Usually ships in 2-12 days

0

24

Snapper 7029138

WASHER, 7/16 I.D. x 1-1/2" O.D. x .188 thick
(Superseded to 704053)

$9.99

$

In Stock, only 1 left!

0

25

Snapper 7091264

BOLT, 5/16-18 x 1-3/4" Hex Flange Lock, GR 5
(Superseded to 7091264YP)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

Note: Was 91296

$4.49

$

In Stock, only 1 left!

0

27

Snapper 7091703

SCREW, 7/16-20 x 2-1/2" (Special), GR 5
(Superseded to 7091703SM)

$7.99

$

Usually ships in 2-12 days

0

28

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0
