LT 160H42HBV2 (84724) - Snapper 42" Lawn Tractor, 16hp 42" CUTTING DECK ASSEMBLY Parts Diagram

42" Lawn Tractor, 16hp

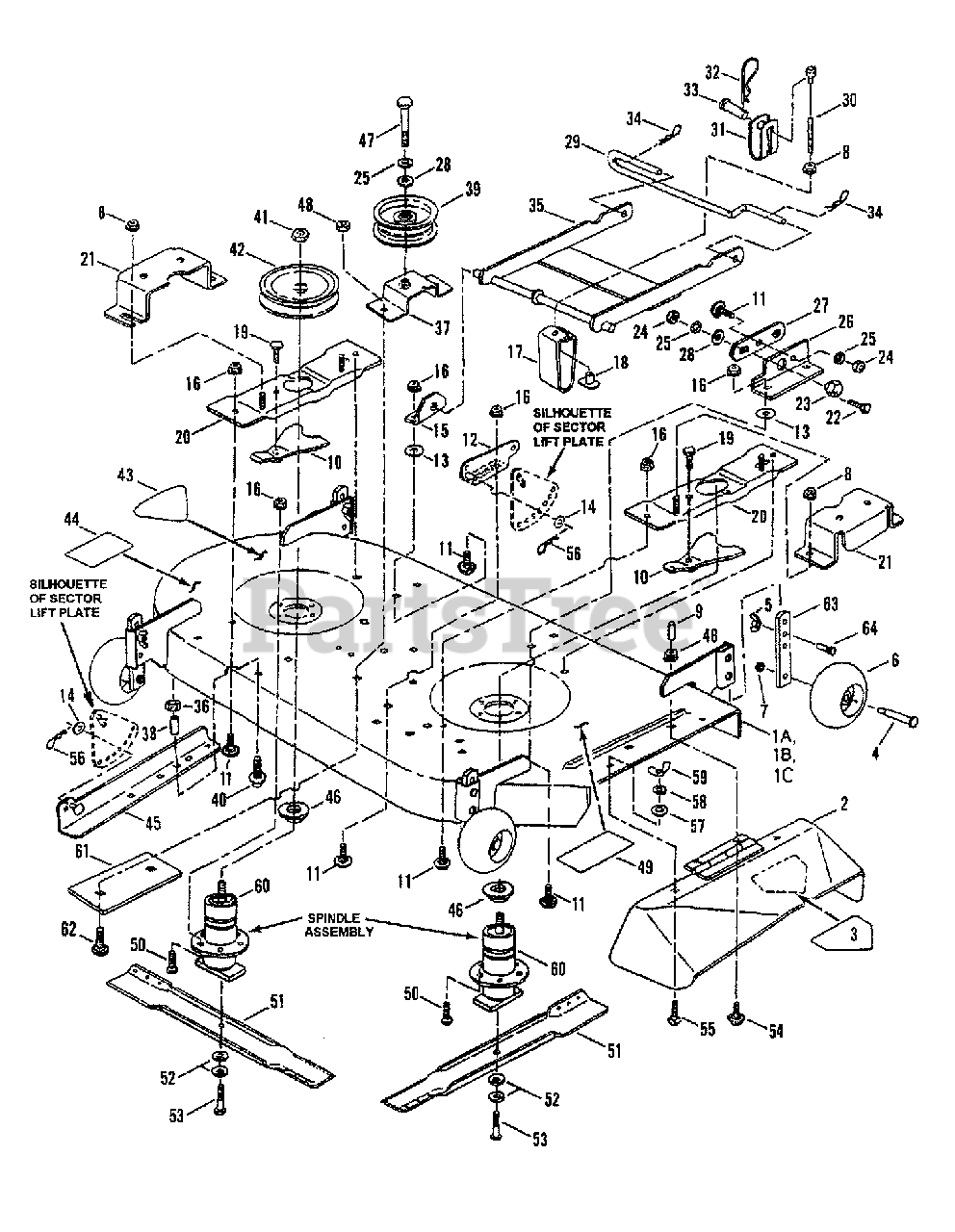

42" CUTTING DECK ASSEMBLY Parts Diagram

  • Title

1A

Snapper 7054168

ASSEMBLY, 42" Cutting Deck (Includes Decal items 44 & 49)

Note: used on LT160H42HBV Model

$

$

Currently unavailable

1B

Snapper 7054170

ASSEMBLY, 42" Cutting Deck (Includes Decal items 44 & 49)

Note: used on LT160H42HBV2 Model

$

$

Currently unavailable

1C

Snapper 7058129

ASSEMBLY, 42" Cutting Deck (Includes Decal item 3 & 46720)

Note: used on 42" Series "I" Models

$

$

Not available

2

Snapper 7051401

DEFLECTOR, Side Discharge (Includes item 3)
(Superseded to 7051401YP)

$159.99

$

Usually ships in 2-12 days

0

3

Snapper 7013010

DECAL, Danger, Cut Finger
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 10

0

4

Snapper 7029265

SHOULDER BOLT, 3/8-16 thread
(Superseded to 7029265SM)

$10.99

$

In Stock, Qty 5

0

5

Snapper 7091049

WING-NUT, 3/8-16
(Superseded to 7091049SM)

$5.49

$

In Stock, only 2 left!

0

6

Snapper 7029264

WHEEL, Gage
(Superseded to 7029264YP)

$14.99

$

In Stock, only 2 left!

0

7

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR5 or B
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

8

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

9

Snapper 7023606

VINYL CAP
(Superseded to 7023606YP)

$3.99

$

In Stock, only 2 left!

0

10

Snapper 7051747

ASSEMBLY, Spindle Lock
(Superseded to 7051747YP)

$23.99

$

In Stock, only 1 left!

0

11

Snapper 7091547

BOLT, 3/8-16 x 3/4" Short Neck Carriage, GR2
(Superseded to 703448)

Note: Was 90850

$4.49

$

In Stock, Qty 20+

0

12

Snapper 7042578

WELDMENT, Bracket, Sector Lift - Right Side

$

$

Not available

12A

Snapper 7042609

WELDMENT, Bracket, Sector Lift - Right Side

Note: used on LT160H42GBV2 & 42" Series "I"

$

$

Not available

13

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

Note: Was 90600

$4.49

$

In Stock, Qty 8

0

14

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7032297

BRACKET, Front Hanger- Left Hand

$

$

Not available

16

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

17

Snapper 7038043

BRACKET, Front Lift Arm Hanger
(Superseded to 7038043YP)

$31.99

$

Usually ships in 2-12 days

0

18

Snapper 7091567

TEE-NUT, 5/16-18

$3.49

$

Usually ships in 2-12 days

0

19

Snapper 7027198

BOLT, 3/8-16 x 1" Hex Flange Lock, GR5
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

20

Snapper 7052487

ASSEMBLY, Spindle Brace
(Superseded to 7052487YP)

$63.99

$

Usually ships in 2-12 days

0

21

Snapper 7034409

GUARD, Pulley
(Superseded to 7034409YP)

$26.99

$

Usually ships in 2-12 days

0

22

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, GR5
(Superseded to 703407)

Note: Was 90563

$11.99

$

In Stock, Qty 7

0

23

Snapper 7015012

ADJUSTMENT RING
(Superseded to 7015012YP)

$3.99

$

Usually ships in 2-12 days

0

24

Snapper 7091302

NUT, 3/8-16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

26

Snapper 7038382

BRACKET, Front (Right Side)

$

$

Not available

27

Snapper 7032432

ADJUSTMENT & LINK

$

$

Not available

28

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7027471

PIN, Deck Hanger Improved

$

$

Not available

30

Snapper 7022893

CABLE, Deck Lift 4.75
(Superseded to 7022893YP)

$9.99

$

In Stock, only 2 left!

0

31

Snapper 7032276

CLEVIS, Lift Cable
(Superseded to 7032276YP)

$12.99

$

In Stock, only 4 left!

0

32

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

33

Snapper 7029687

PIN, 3/8 x 1-1/16" Clevis
(Superseded to 7029687YP)

$7.99

$

In Stock, only 1 left!

0

34

Snapper 7091596

HAIRPIN, .148 x 2.62
(Superseded to 7091596YP)

$4.49

$

Usually ships in 2-12 days

0

35

Snapper 7042469

WELDMENT, Front Lift Arm, 42
(Superseded to 7042469YP)

Note: replaces 41480

$276.99

$

Usually ships in 2-12 days

0

36

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR5 or B
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

37

Snapper 7053567

ASSEMBLY, Idler Mount Bracket
(Superseded to 7053567YP)

$22.99

$

Usually ships in 2-12 days

0

38

Snapper 7028942

SLEEVE, .5 O.D. x .404 I.D. x .38
(Superseded to 7028942YP)

$7.99

$

Usually ships in 2-12 days

0

39

Snapper 7018574

IDLER, 4.12 Flat
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

40

Snapper 7090614

BOLT, 3/8-16 x 1-1/2" Hex Flange Lock, GR5
(Superseded to 7090614YP)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 7074467

NUT, 3/4-16 Hex Flange Jam, GR8
(Superseded to 7074467SM)

$4.49

$

In Stock, Qty 10

0

42

Snapper 7024863

PULLEY-5.25 O.D.
(Superseded to 7024863BMYP)

$42.99

$

Usually ships in 2-12 days

0

43

Snapper 7024910

DECAL - 42 Inch

$

$

Not available

44

Snapper 7014852

DECAL, Caution (Rotating Blade)
(Superseded to 7101665YP)

$14.99

$

In Stock, only 3 left!

0

45

Snapper 7042607

WELDMENT, Sector Lift, Left Hand- 42"

$

$

Not available

45

Snapper 7042606

WELDMENT, Sector Lift, Left Hand- 42"
(Superseded to 7042606YP)

Note: used on LT160H42HBV2 & 42" Series "I"

$42.99

$

Usually ships in 2-12 days

0

46

Snapper 7014407

WASHER, Spindle
(Superseded to 7014407SM)

$7.49

$

In Stock, Qty 20+

0

47

Snapper 7091580

BOLT, 3/8-16 x 1-3/4" Hex Flange Lock, GR5
(Superseded to 703812)

$4.49

$

Usually ships in 2-12 days

0

48

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

49

Snapper 7014852

DECAL, Caution (Deflector in Place)
(Superseded to 7101665YP)

Note: used on Series "H" Models

$14.99

$

In Stock, only 3 left!

0

49B

Snapper 7046720

DECAL, Chute/Deflector
(Superseded to 7046720SM)

Note: used on Series "I" Models

$7.49

$

In Stock, only 1 left!

0

50

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

51

Snapper 7026691

BLADE, 21" Standard Lift
(Superseded to 7026691BZYP)

$23.99

$

In Stock, Qty 20+

0

52

Snapper 7012063

WASHER, Cone, 13/32 x 1-13/32" Diameter
(Superseded to 703963)

$6.99

$

Usually ships in 2-12 days

0

53

Snapper 7090824

SCREW, 3/8-24 x 1-1/4" Hex Head Cap, GR5
(Superseded to 7090824YP)

$4.99

$

In Stock, Qty 9

0

54

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, GR5
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

55

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, GR5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

56

Snapper 7091503

HAIR PIN, 3/32 x 1.5"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

57

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

58

Snapper 7091315

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

59

Snapper 7091537

WING LOCKNUT, 5/16-18
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

60

Snapper 7051914

ASSEMBLY, Spindle Housing, 42" Deck

Note: Was 59723

$

$

Not available

61

Snapper 7034202

PLATE, Support

$

$

Not available

62

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, GR5
(Superseded to 703585)

Note: Was 90636

$4.99

$

Usually ships in 2-12 days

0

63

Snapper 7035835

POST Anti-Scalp
(Superseded to 7035835SM)

$20.99

$

In Stock, only 2 left!

0

64

Snapper 7091328

SCREW, 3/8-16 x 1-1/4" Hex Head Cap, GR5
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0
