LT 160H42DBV2 (82390) - Snapper 42" Lawn Tractor, 16hp Seat, Rear Fender & Components Parts Diagram

42" Lawn Tractor, 16hp

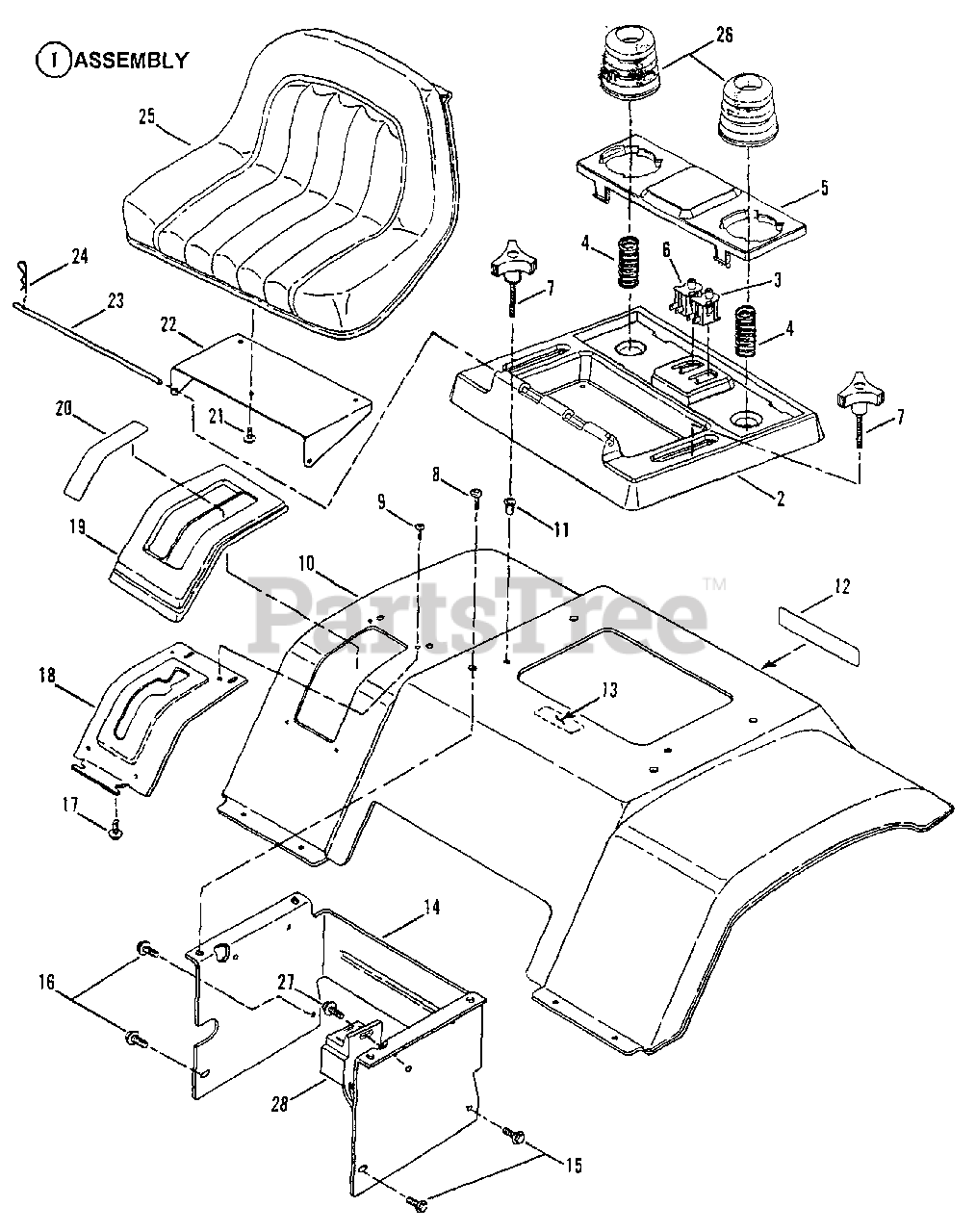

Seat, Rear Fender & Components Parts Diagram

  • Title

1

Snapper 7059215

ASSEMBLY, Seat Support (Manual PTO units)
(Superseded to 7059215YP)

Note: Was 53761 (Includes 2, 3, 4, & 5) (Model: LT160H42DBV)

$186.99

$

In Stock, only 2 left!

0

1

Snapper 7059214

ASSEMBLY, Seat Support (Electric PTO units)
(Superseded to 7059214YP)

Note: Was 53745 (Includes 2, 3, 4, 5, & 6) (Models: LT160H42DBV2 & LT180H48DBV2)

$107.99

$

Usually ships in 2-12 days

0

2

Snapper 7074204

SUPPORT, Seat
(Superseded to 7074204YP)

Note: Was 28579

$79.99

$

Usually ships in 2-12 days

0

3

Snapper 7023354

SWITCH, Seat, Gray, N.C.
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

4

Snapper 7073266

SPRING
(Superseded to 7073266YP)

Note: Was 22759

$5.99

$

In Stock, Qty 20+

0

5

Snapper 7028580

HOLDER, Cushion
(Superseded to 7028580YP)

$50.99

$

In Stock, only 4 left!

0

6

Snapper 7015707

SWITCH, Seat
(Superseded to 7015707YP)

$8.99

$

In Stock, Qty 20+

0

7

Snapper 7017875

KNOB, Seat Adjustment, 5/16-18 x 2"
(Superseded to 7017875YP)

$10.99

$

Usually ships in 2-12 days

0

8

Snapper 7091001

SCREW, 5/16-18 x 5/8" Truss Head, Torx
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0

9

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

10

Snapper 7073346

PAN, Seat (Fender)
(Superseded to 7073346YP)

Note: Was 33314

$341.99

$

Usually ships in 2-12 days

0

10

Snapper 7034862

PAN, Seat (Fender)
(Superseded to 7073346YP)

Note: Was 34862 (Model: LT180H48DBV2)

$341.99

$

Usually ships in 2-12 days

0

11

Snapper 7023193

RIV-NUT, 5/16-18
(Superseded to 7023193YP)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7091761

RIV-NUT, 5/16-18, .530" Round & Serated

Note: (Model: LT180H48DBV2)

$

$

Not available

12

Snapper 7022971

DECAL - SNAPPER, 7.28" Molded Logo, Silver Letters & Blue Stripe

$

$

Not available

13

Snapper 7026415

DECAL - CAUTION, Battery Location
(Superseded to 7026415YP)

$7.49

$

Usually ships in 2-12 days

0

14

Snapper 7034711

SUPPORT, Fender

$

$

Currently unavailable

15

Snapper 7091523

SCREW, 5/16-18 x 5/8" Hex Washer Head, Swage Form
(Superseded to 703949)

Note: (Used on Left Side Only)

$3.99

$

In Stock, only 3 left!

0

16

Snapper 7091524

SCREW, 5/16-18 x 1-1/4" Hex Washer Head, Swage Form
(Superseded to 703167)

Note: (Used on Right Side Only)

$3.99

$

In Stock, only 3 left!

0

17

Snapper 7091105

SCREW, #10-16 x 1/2" Hex Washer Head, Self-Tapping
(Superseded to 7091105YP)

$5.49

$

In Stock, only 4 left!

0

18

Snapper 7033120

DETENT, Shift

$

$

Not available

19

Snapper 7024894

COVER, Shift
(Superseded to 7024894YP)

$5.99

$

Usually ships in 2-12 days

0

20

Snapper 7073424

DECAL, Shift Cover, 5-Speed

Note: Was 16576

$

$

Not available

21

Snapper 7091525

BOLT, 5/16-18 x 1/2" Hex Flange Lock, Grade 5
(Superseded to 7091525YP)

$3.49

$

In Stock, only 1 left!

0

22

Snapper 7033318

BRACKET, Seat Support

$

$

Not available

23

Snapper 7074452

ROD, Seat Hinge
(Superseded to 7074452YP)

Note: Was 33435

$10.99

$

Usually ships in 2-12 days

0

24

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7035579

SEAT, Operator, V560
(Superseded to 7035579YP)

Note: (Models: LT160H42DBV2 & LT180H48DBV2) (Shown)

$438.99

$

Usually ships in 2-12 days

0

25

Snapper 7028621

SEAT, Operator
(Superseded to 7075063YP)

Note: Was 71564 (Model: LT160H42DBV)

$301.99

$

Usually ships in 2-12 days

0

26

Snapper 7019109

CUSHION, Seat
(Superseded to 7019109YP)

$18.99

$

In Stock, Qty 20+

0

27

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

28

Snapper 7028571

RECEPTACLE, Female Wire Harness Relay

Note: (Model: LT160H42DBV)

$

$

Not available

28

Snapper 7028520

RECEPTACLE, Female Wire Harness Relay
(Superseded to 7028520YP)

Note: (Models: LT160H42DBV2 & LT180H48DBV2)

$144.99

$

Usually ships in 2-12 days

0
